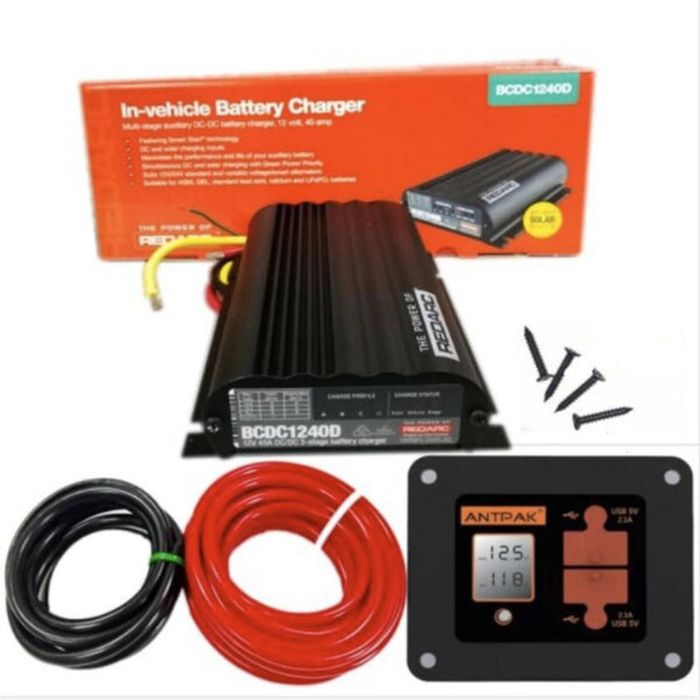

REDARC BCDC1240D DUAL BATTERY ISOLATOR SYSTEM DCDC MPPT INSTALL KIT

I/N: 1192167

Marketplace | Online only

$649

Afterpay logo
4 payments of $162.25
PayPal Logo
4 payments of $162.25
zip_logo.svg
From $10 a week

How to purchase

Marketplace | Online only

Items sold and delivered by Little Cycles. This item is not available in-store or for click & collect.

Marketplace FAQs

Delivery

Delivery policyReturns & refunds
Little Cycles
Enter postcode or suburb for estimate

  • 40 ampere maximum charging output from dual input sources maximum power point tracking (mppt) solar regulator integrated green power priority technology prioritizes solar over alternator charging
  • Compatible with 12v and 24v vehicle electrical systems suitable for standard and variable voltage smart alternators three charging profiles (a/b/c) with adjustable maximum voltage settings
  • Profile a: 14.6v maximum (agm/gel batteries) profile b: 15.0v maximum (standard lead-acid batteries) profile c: 15.1v maximum (calcium batteries)

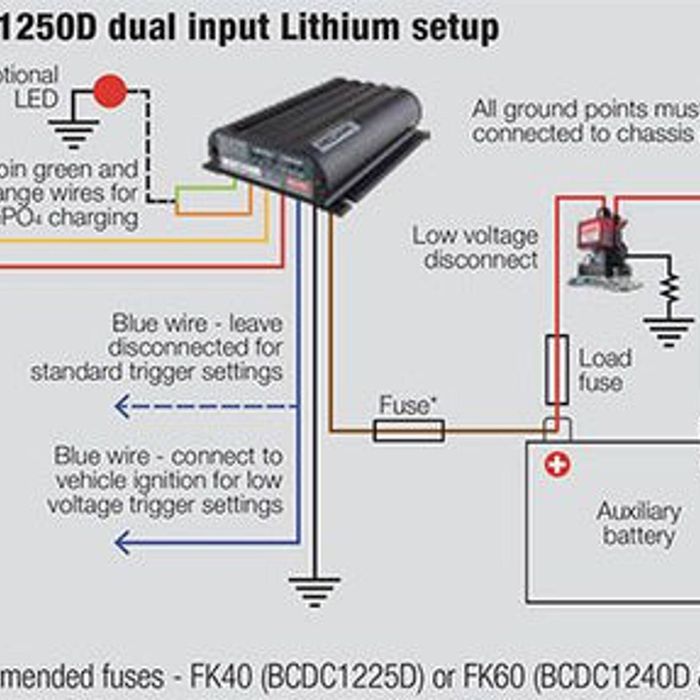

  • Lithium (lifepo4) charging profile: 14.6v maximum simultaneous dc and solar input charging capability blue wire connection enables low voltage (lv) alternator mode
  • Led flash sequence indicates charging stage and input source status operating temperature range: -40°c to +80°c australian design and manufacturing with as/nzs certification

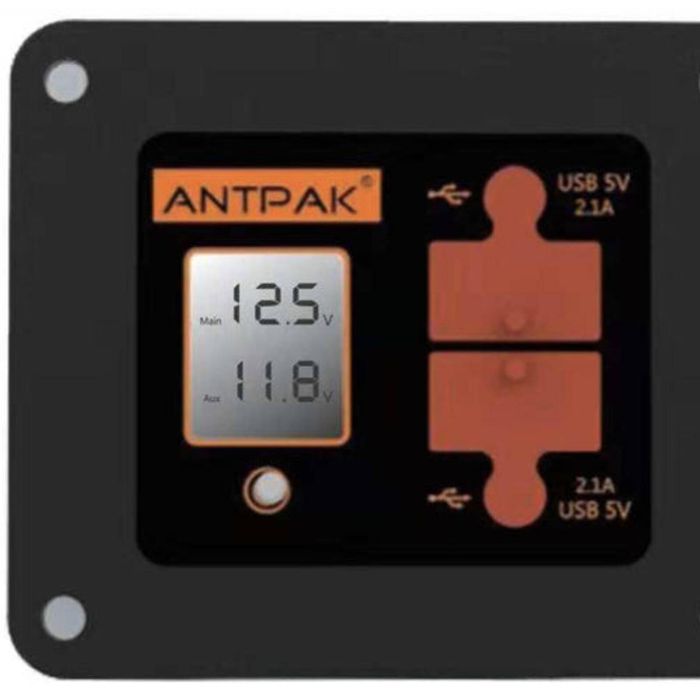

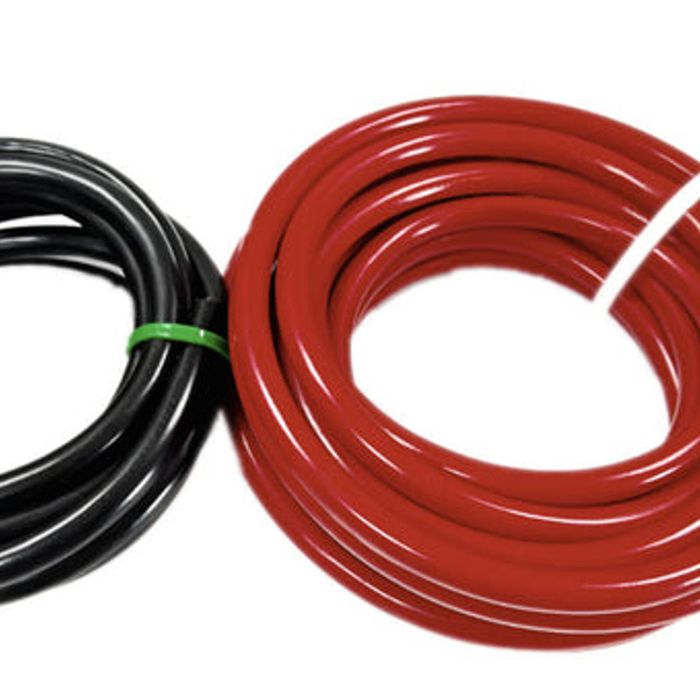

The REDARC BCDC1240D is a 12V/24V DC-to-DC battery charger rated for 40 ampere output that charges auxiliary batteries from vehicle alternator and solar panel inputs simultaneously. This unit features Maximum Power Point Tracking (MPPT) solar regulation, Green Power Priority technology, and multi-stage charging profiles compatible with AGM, gel, calcium, lithium (LiFePO4), and standard lead-acid battery types. The package includes the charger unit, dual battery voltage monitor panel with USB outlets, MIDI fuses, and 6 B&S gauge cable for complete installation. Input Parameters DC input voltage range: 9V-32V (suitable for 12V and 24V systems) Solar input voltage range: 9V-32V MPPT solar voltage range: Variable based on panel configuration Minimum output battery voltage: 4.2V Output Parameters Maximum charging current: 40A continuous Maximum output power: 600W Profile A output: 14.6V maximum / 13.3V float (AGM/Gel) Profile B output: 15.0V maximum / 13.3V float (Standard lead-acid) Profile C output: 15.1V maximum / 13.3V float (Calcium) Lithium output: 14.6V maximum (no float stage) Physical Specifications Dimensions: 165mm (L) × 120mm (W) × 37mm (H) Weight: 850g (charger unit only) Mounting orientation: Horizontal or vertical Terminal type: Screw terminals with wire gauge markings & Protection Operating temperature: -40°C to +80°C Dust and water ingress protection Reverse polarity protection: Built-in Overvoltage protection: 32V cutoff Short circuit protection: Automatic shutdown
