Conforms to AS3660.1 - 2000, Protection of Buildings from Termites.
All joints are welded.
Stem - 25mm diameter x 2.0mm thickness
Stems in stirrups are sealed for termite protection - AS1397-2001
Stirrup thickness = 4mm

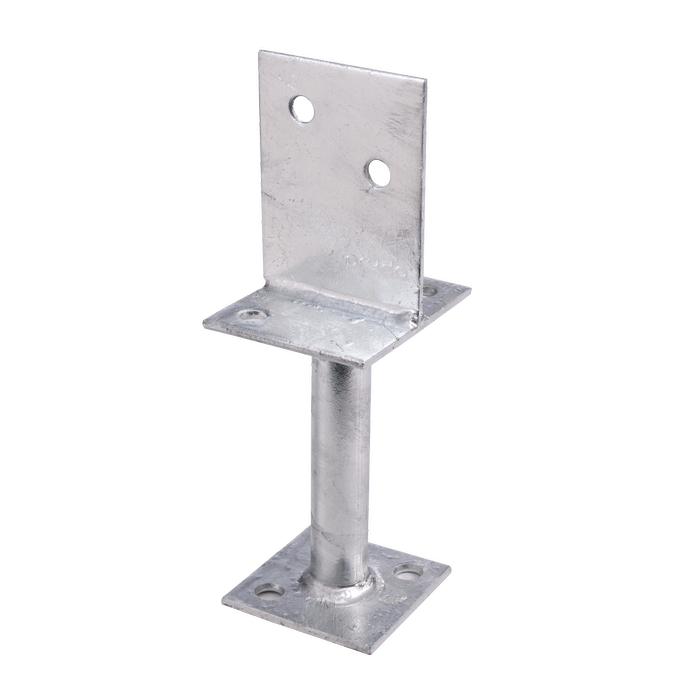

Post Anchor designed to be hidden, with only the bolt heads and nuts visible. Primarily used for bolting to existing concrete. However may be cast-in with a maximum clearance of 75mm.
