POWERBAY
POWERBAY

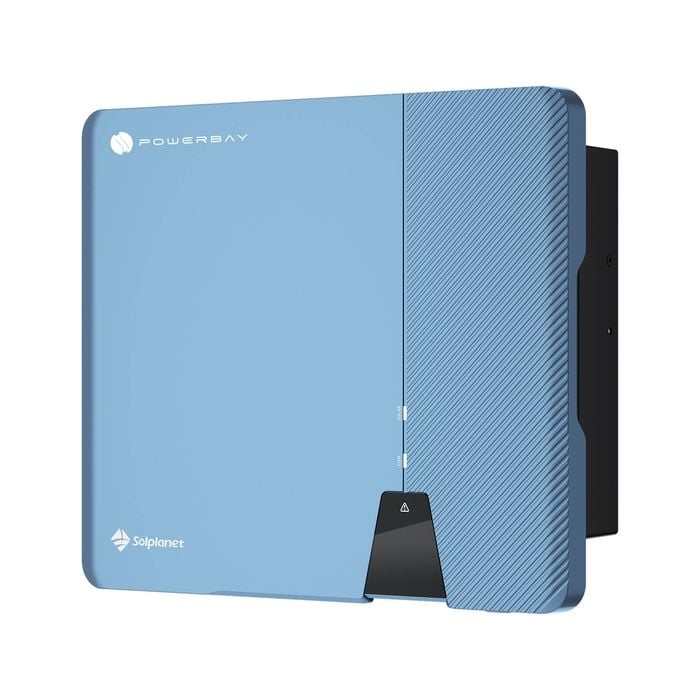

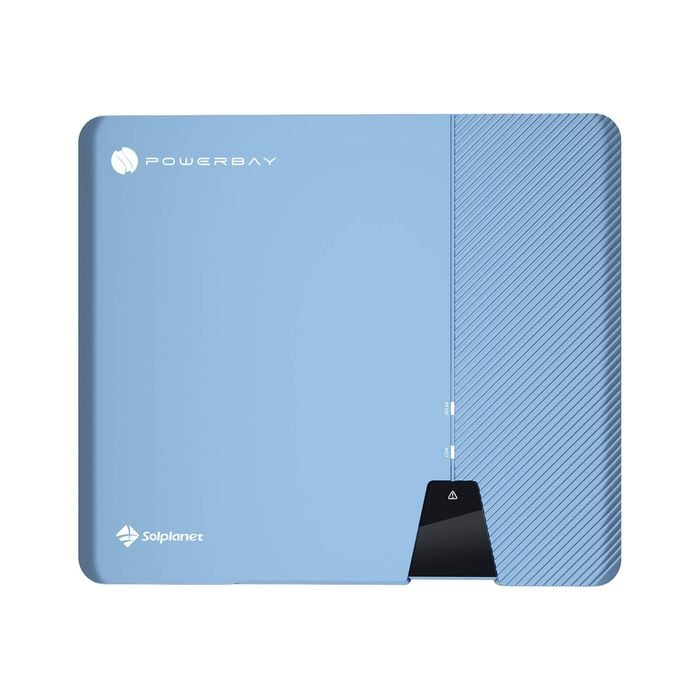

Powerbay/Solplanet 10kW Single Phase Grid Tie Inverter ASW10000-S-A

I/N: 0958274

$1,099

Earn 1 Flybuys point per $11,099 pts

How to purchase

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

  • Reliable - Designed in accordance with international quality and safety standards, the IP66-rated enclosure ensures durability and reliable operation across a wide range of environmental conditions — ideal for both indoor and outdoor installations. Built-in DC reverse polarity protection and AC-sensitive residual current monitoring provide enhanced safety for installers and end-users, ensuring long-term stable performance and peace of mind.
  • Powerful - Equipped with 3 independent Maximum Power Point Trackers (MPPTs), this inverter offers exceptional flexibility in system design. It supports north, south, and east/west PV array configurations simultaneously, optimising yield across varying roof orientations. It also supports up to 150% PV array oversizing, ensuring higher energy output over the system’s lifetime and maximum energy harvest even under low-light conditions.

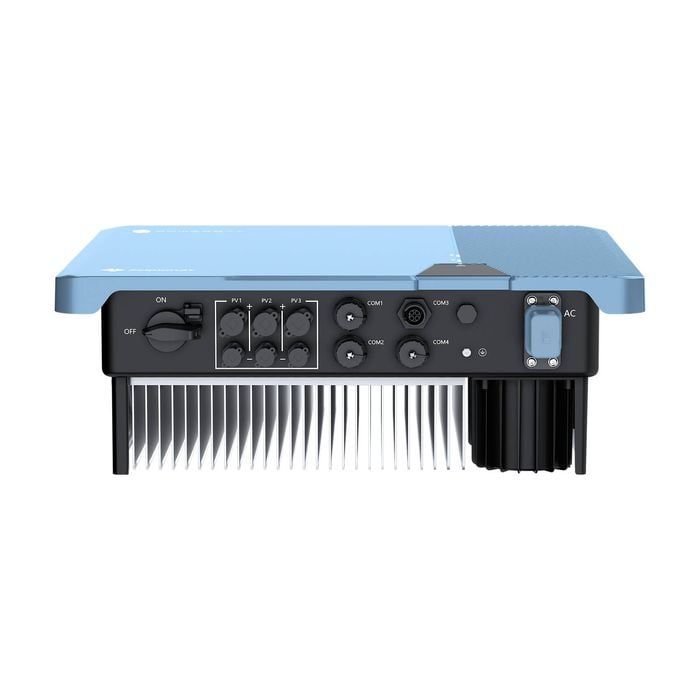

  • Easy to install - Equipped with Phoenix Contact DC connectors to ensure fast and easy installation with standard tools.​ Quick setup and easy commissioning with Solplanet Apps.
The Powerbay/Solplanet ASW10000-S-A is engineered for residential or small commercial grid-connected PV systems where a single-phase 10 kW output is required. With three MPPT channels, it gives installation flexibility — you can connect strings from different roof orientations or manage partial shading more effectively. Its higher input current per string (16 A) makes it well-suited to modern larger and bifacial solar modules, which often generate more current per string. From an installation viewpoint, the unit is designed for ease and durability. The compact size and wall-mount format simplifies placement, while the integrated DC switch and plug-type connectors (such as Phoenix Contact types) reduce time and complexity for installers. The IP66 rating means it can be mounted outdoors in exposed conditions with confidence. On the connectivity side, the built-in WiFi and monitoring functionality mean you (or the installer) can track performance in near real-time via the Solplanet app. The ASW10000-S-A inverter delivers a compelling balance of power, flexibility, and modern connectivity in a robust and installer-friendly package — well suited for larger single-phase PV applications.
