Philmac

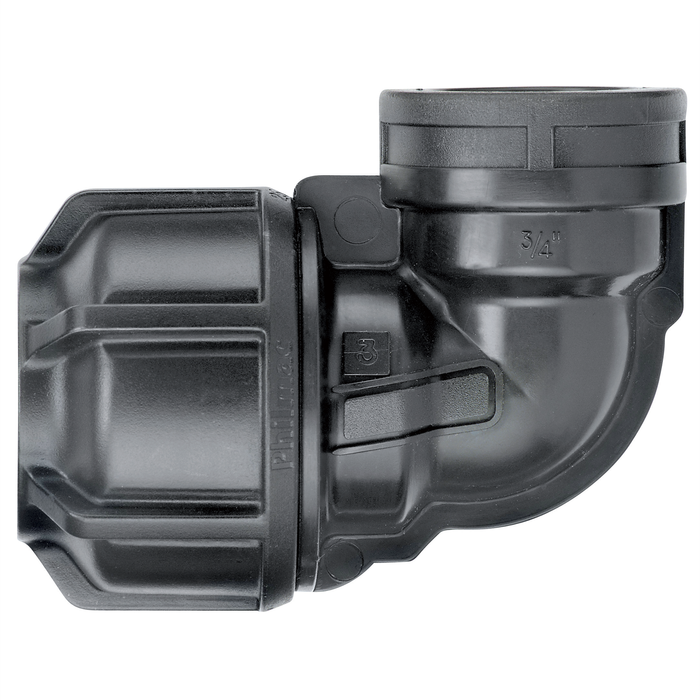

Philmac Metric 20mm x 3/4" Poly x FI BSP Pipe Elbow

5 (2)

I/N: 4813801

5 (2)

I/N: 4813801

Select your preferred purchase method

Features

  • Easy disassembly
  • Rural, 2G Metric and 3G Metric connection components are all interchangeable
  • No loose components. Collet and seal remain captive in the body when the nut is removed
  • Compact, robust PN16 fitting
  • 3G incorporates all the benefits of Slide and Tighten technology
The 3G Metric plastic compression fitting is the result of Philmac’s unrelenting commitment to continuous improvement and a culture based on innovation and ingenuity. Australian designed and made, the Philmac Slide and Tighten technology will make the job at hand so much easier.

Details

Dimensions



Width

Height

Length

Product

85mm60mm85mm

Package

46mm61mm86mm

Specifications

Colour
Black
Model Name
Philmac 20mm x 3/4" Metric FI Poly Pipe Elbow
Model Number
70762200
Material
Polypropylene Body, Acetal Nuts
Metric (Yes/No)
Yes
Bend Degree
90
Recommended Use
Used on Blue Line Metric Poly Pipe
Underground rated (Yes/No)
Yes
Rating
PN16
Maximum working pressure (kpa)
1600
Type
N/A
Fitting Size
20
Item Package Type
N/A
Compatible pipe material
metric polyethyelene pressure pipe

Returns

We will gladly assist with returns and exchanges of this product in accordance with our returns and exchanges policy.
