Philmac

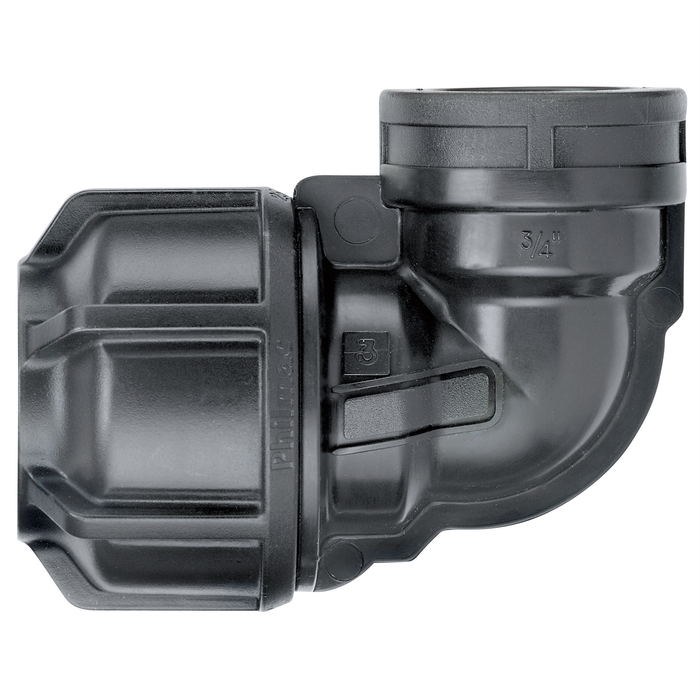

Philmac 25mm x 1" Metric Poly x FI BSP Pipe Elbow

5 (1)

I/N: 4813803

5 (1)

I/N: 4813803

Select your preferred purchase method

Features

  • 3G incorporates all the benefits of Slide and Tighten technology
  • Compact, robust PN16 fitting
  • No loose components. Collet and seal remain captive in the body when the nut is removed
  • Rural, 2G Metric and 3G Metric connection components are all interchangeable
  • Easy disassembly
The 3G Metric plastic compression fitting is the result of Philmac’s unrelenting commitment to continuous improvement and a culture based on innovation and ingenuity. Australian designed and made, the Philmac Slide and Tighten technology will make the job at hand so much easier.

Details

Dimensions



Width

Height

Length

Product

65mm90mm65mm

Package

55mm71mm95mm

Specifications

Colour
Black
Model Name
Philmac 25mm x 1" Metric Female Poly Pipe Elbow
Model Number
70763300
Material
Polypropylene Body, Acetal Nuts
Metric (Yes/No)
Yes
Bend Degree
90
Recommended Use
Used on Blue Line Poly Pipe
Underground rated (Yes/No)
Yes
Rating
PN16
Maximum working pressure (kpa)
1600
Type
N/A
Item Package Type
N/A
Compatible pipe material
Metric polyethyelene pressure pipe
