- Boost clock 2482 mhz for smooth gameplay
- Rtx 5060 ti ventus 2x oc plus with 16gb gddr7
- Dual-fan design and hdmi output
- 6 maximum displays 4 g-sync® technology y digital maximum resolution 7680 x 4320 features dual fan two fans and a huge heatsink ensure a cool and quiet experience for you
- Stormforce fan seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise

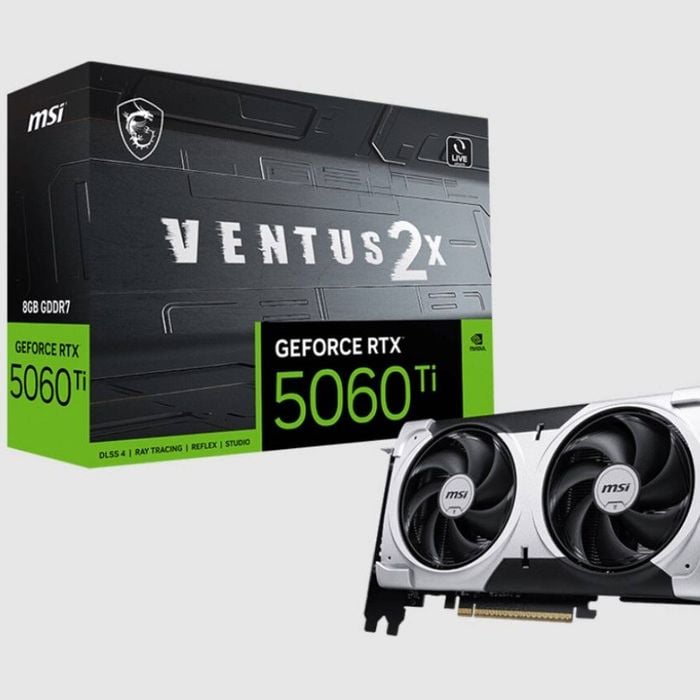

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS, PCI Express® Gen 5 x16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1
SPECIFICATIONS
Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS
Model Name G506T-8V2CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
CUDA® CORES 4608 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 8-pin x1
Recommended PSU 600 W
Card Dimension (mm) 227 x 126 x 41 mm
Weight (Card / Package) 573 g / 834 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
FEATURES
Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage...
