- Storage capacity: 256gb
- Connectivity: hdmi
- Processor: amd
- 1 frl, maximum resolution of 8k 60hz slot 3x pci-e x16 slot pci_e1 gen pcie 5
- 0 supports up to x16 (from cpu) pci_e2 gen pcie 3

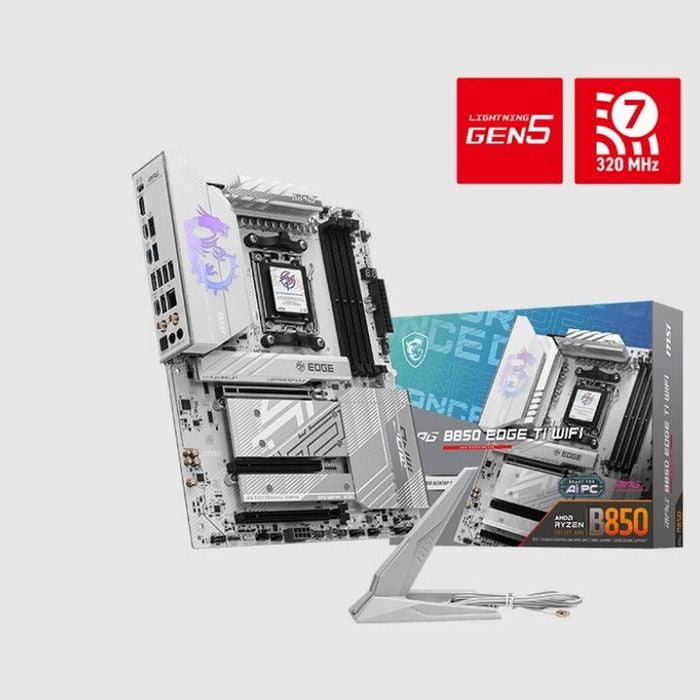

Msi b850 edge ti wifi, amd b850, 4x ddr5 256gb, 1x hdmi, 3x pci-e x16 slot, 4x m.2, 8x 4x usb 2.0, wi-fi 7
chipset
amd b850
cpu
supports amd ryzenâ„¢ 9000/ 8000/ 7000 series desktop processors
socket am5
memory
4x ddr5 udimm, maximum memory capacity 256gb
onboard graphics
1x hdmiâ„¢
support hdmiâ„¢ 2.1 frl, maximum resolution of 8k 60hz
slot
3x pci-e x16 slot
pci_e1 gen pcie 5.0 supports up to x16 (from cpu)
pci_e2 gen pcie 3.0 supports up to x1 (from chipset)
pci_e3 gen pcie 4.0 supports up to x4 (from chipset)
storage
4x m.2
m.2_1 source (from cpu) supports up to pcie 5.0 x4 , supports 22110/2280 devices
m.2_2 source (from cpu) supports up to pcie 5.0 x4 , supports 2280/2260 devices
m.2_3 source (from chipset) supports up to pcie 4.0 x2 , supports 2280/2260 devices
m.2_4 source (from chipset) supports up to pcie 4.0 x4 , supports 2280/2260 devices
4x sata 6g
m.2_1 slot
• supports up to pcie 5.0 x4 (for ryzen™ 9000/ 7000 series processors)
• supports up to pcie 4.0 x4 (for ryzen™ 8000 series processors)
m.2_2 slot
• supports up to pcie 5.0 x4 (for ryzen™ 9000/ 7000 series processors)
• supports up to pcie 4.0 x4 (for ryzen™ 8700/ 8600 / 8400 series processors)
• supports up to pcie 4.0 x2 (for ryzen™ 8500/ 8300 series processors)
raid
supports raid 0 and raid 1 for m.2 nvme storage devices
usb
4x usb 2.0 (rear)
4x usb 2.0 (front)
1x usb 5gbps type a (rear)
4x usb 5gbps type a (front)
2x usb 10gbps type a (rear)
3x usb 10gbps type c (rear)
1x usb 20gbps type c (front)
lan
realtek® 8126-cg 5g lan
wireless lan & bluetooth
wi-fi 7
supports bluetooth® 5.4**, mlo, 4kqam
operating system
support for windows® 11 64-bit
pcb info atx
304.8mmx243.84mm
