- Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
- Ideal for home and rural applications including off-grid shed power
- Requires regulation by solar charge controller
- Direct connection to batteries with 900mm PV cables with positive (+) and negative (-) TUV certified connectors
- 10 Year Industry Leading Warranty

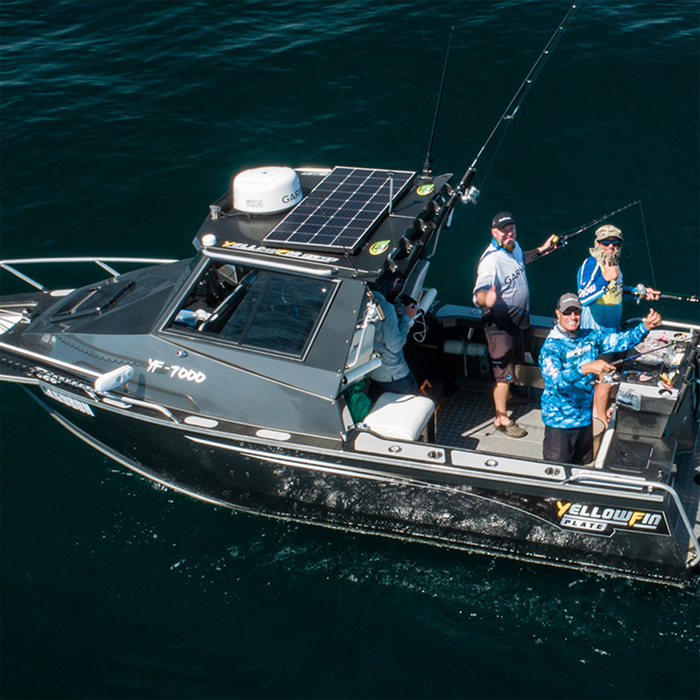

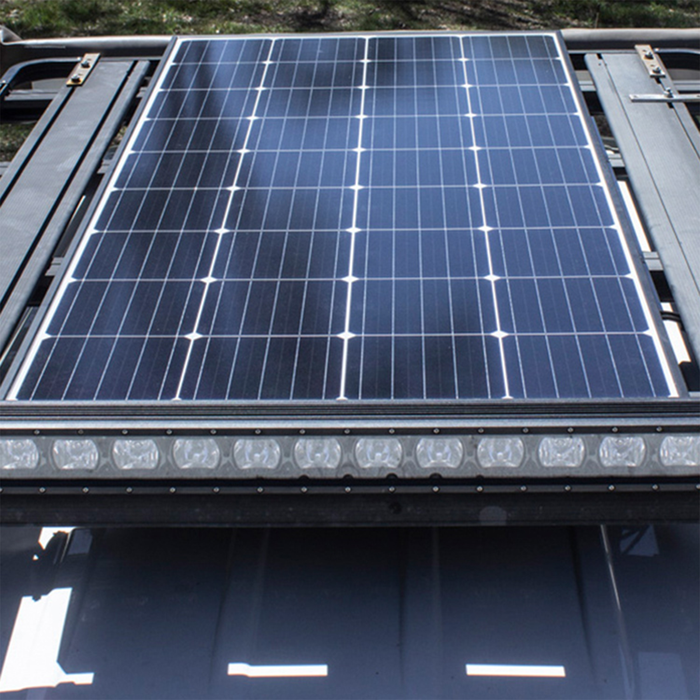

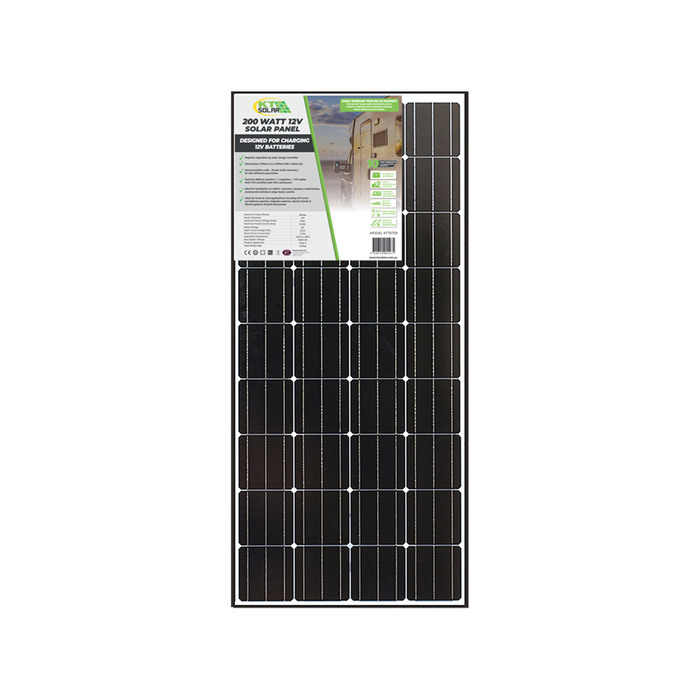

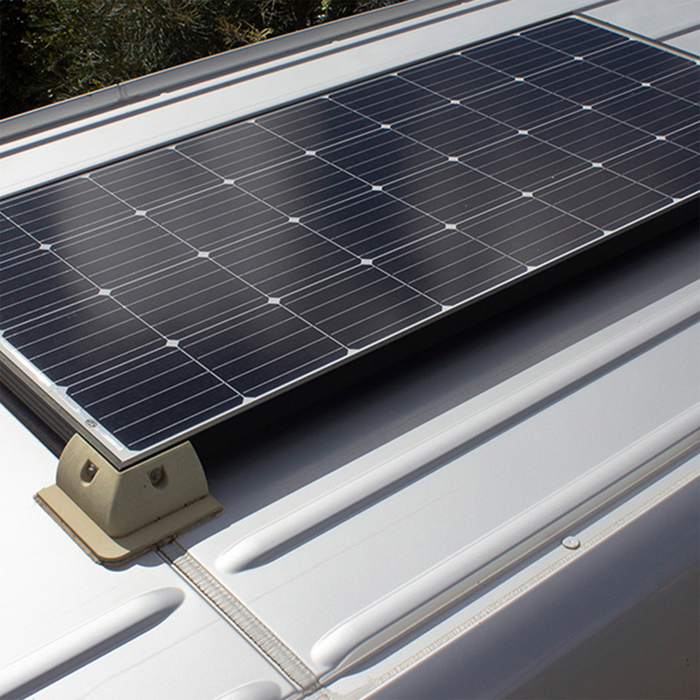

The KT Solar 200W 12V solar panel is built predominantly for permanent installations on the roofs of 4WD, vans, caravans, campers, motorhomes, RV’s, commercial service vehicles, large boats & yachts, powering 12V sealed lead-acid batteries that power devices such as 12V fridges, air-compressors, lighting and other 12V devices.
This panel offers a 10 year warranty and 25 year efficiency guarantee.
Technical Specifications:
Maximum Power (Pmax): 200Wp
Power Tolerance: +3%
Maximum Power Voltage (Vmp): 19.6V
Maximum Power Current (Imp): 10.20A
Rated Voltage: 12V
Open Circuit Voltage (Voc): 23.2V
Short Circuit Current (Isc): 11.27A
Operating Temperature: -40 °C to +85 ° C
Product Application: Class A
Maximum System Voltage: 1000V DC
Product Weight: 11.50Kg

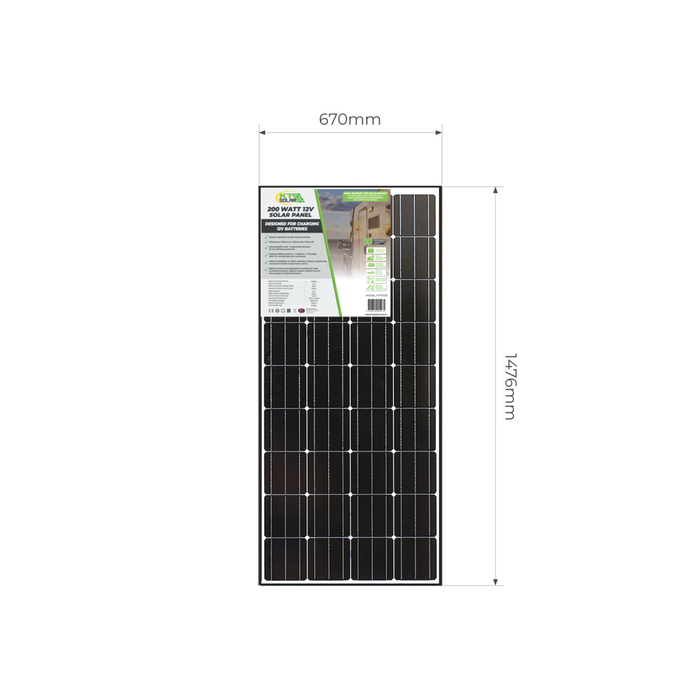

Dimensions (mm): 1476(L) x 670(W) x 35(D)
