- Mono-crystalline construction
- High quality construction
- 10 year industry leading warranty
- 900mm PV cables with TUV certified solar connectors (male and female)
- Positive / Negative Alligator Clamps

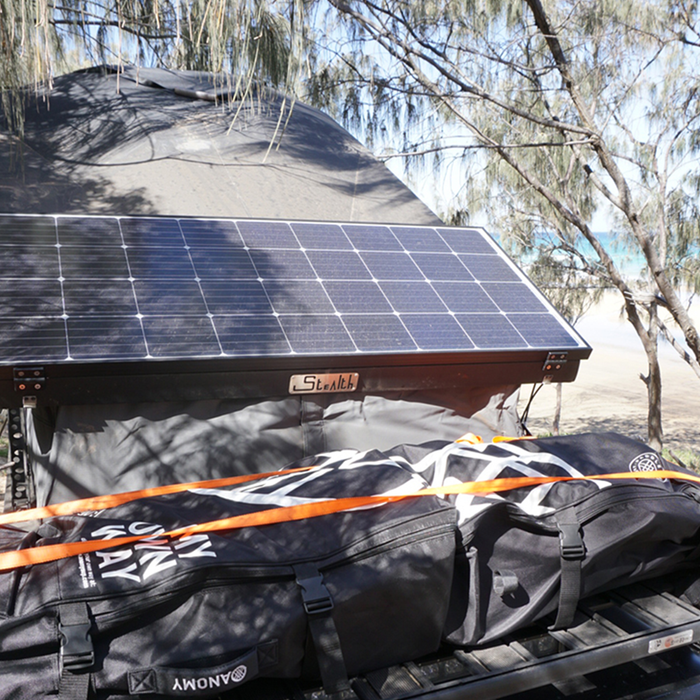

Designed for installation on 4WD, caravans, campers, motorhomes, RV’s, large boats and yachts. Ideal for home and rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates and off-grid shed power.
Technical Specifications:
Power Tolerance +3%
Minimum Power Voltage (Vmp) 19.0V
Maximum Power Current (Imp) 6.23A
Rated Voltage 12V
Open Circuit Voltage (Voc) 22.5V
Short Circuit Current (Isc) 6.97A
Operating Temperature -40⁰C to +85⁰C
Product Application Class A
Max System Voltage 1000V DC
