Kincrome M10 10 Piece Rivnut Set

I/N: 5910353
$8.50
Price correct as at Mon 05 Dec 2016 7:28:34
Add to Store Order
Products can be picked up or delivered. Your local store will contact you to confirm stock availability, delivery charges and organise payment.
Not all products available in all stores
Contact your nearest store for product information.

Special Order

Contact your nearest store to order this product

Product Description

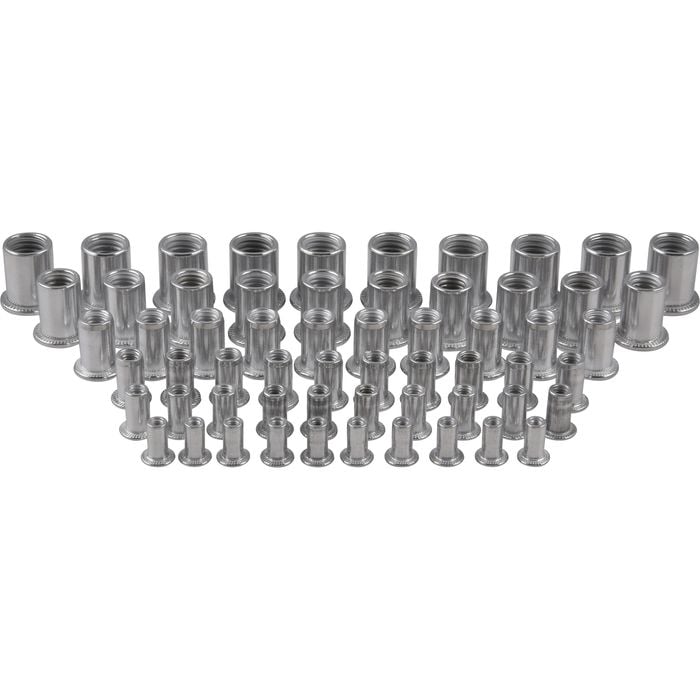

The Blind Nut Rivnut Set is not your typical riveter. Instead of using a rivet to combine 2 pieces of say sheet metal when working with a small straight rivet, this alternative "blind nut" riveter works in an entirely different fashion. The riveter users threaded "rivet nuts", of which are a small round steel component with an internal thread. The user will typically drill out a hole, then insert a rivnut as supplied in these packs onto the tip of the mandrel/rivet gun, then adjust to suit, finally shooting the rivnut into place. The rivet gun will crimp the rivnut and secure tight. Now the user has a firm and secure thread to attach a bolt for any purpose. The rivnut packs come in 20 and 10 piece packs, are made from zinc coated steel and are available in M3,4,5,6,8,10.

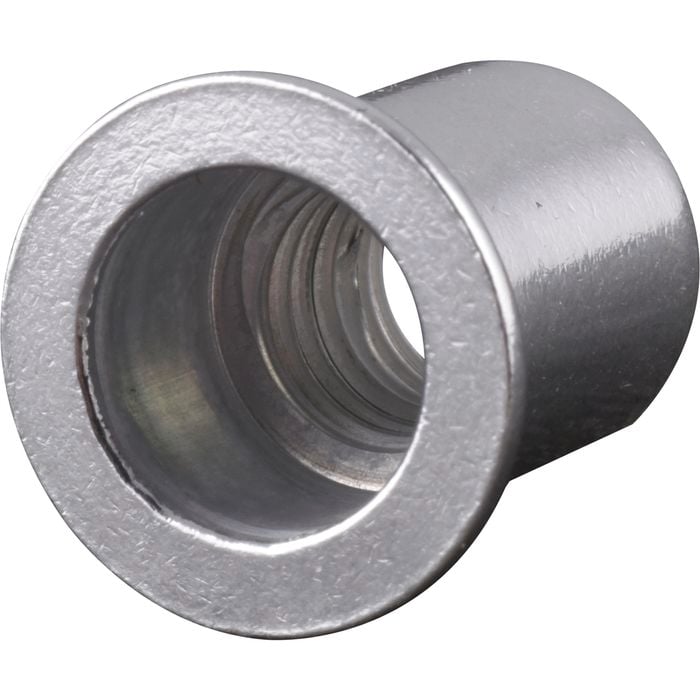

M10 Rivnut Pack - 10 pieces included
Zinc Coated Steel
Head Diameter (mm) : 16.4
Head Height (mm): 1.5
Length (mm): 17
Diameter (mm): 12.8
Thread Size (mm): M10 x 1.5
Grip Range (mm): .1.00-3.50
Hole Size (mm): 13

  • Zinc Coated Steel
  • 10 Piece Packs
  • Drill Bit Required : 13mm
  • M10

Product Details

Model Name
Rivnut Insert M10 - 10 Piece
Model Number
K4951
Material
Zinc Coated Steel
Colour
Silver
Product Dimensions (mm)
W:16.4 H:12.8 L:17
Package Dimensions (mm)
W:40 H:30 L:70
Weight
0.001
Rivets Included
Yes
Rivet Sizes Included
10
