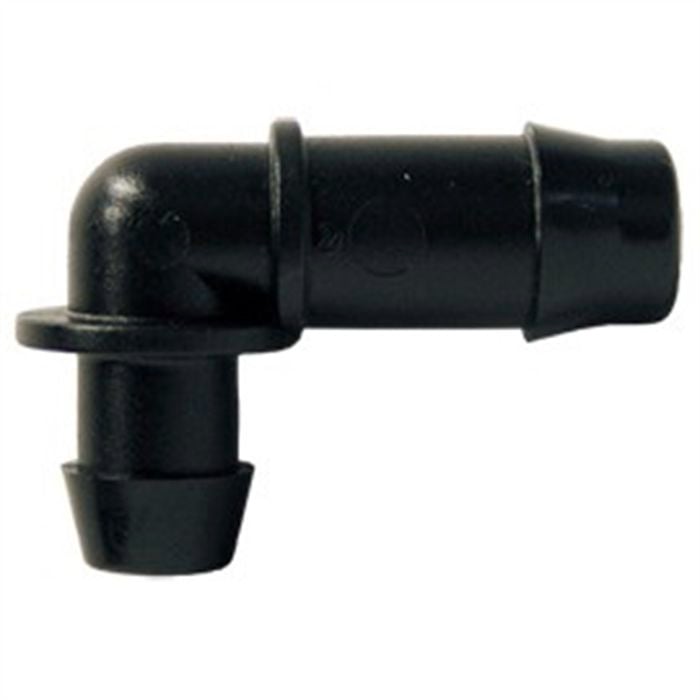

Holman 13mm Barbed Poly Elbow

I/N: 3120094
Price correct as at Wed 26 Oct 2016 3:11:23
Add to Store Order
Products can be picked up or delivered. Your local store will contact you to confirm stock availability, delivery charges and organise payment.
Not all products available in all stores
Contact your nearest store for product information.

Special Order

Contact your nearest store to order this product


The 13mm x 10mm Drip Elbow adaptor, allows you to punch (Drip punch required) into a 19mm poly pipe mainline to attach 13mm drip line. This connection style eliminates using a barbed tee & ratchet clamps. Installation: Insert the 13mm end of the Elbow Take-off adaptor into one end of drip line. To assist installation, soften the end of the tube by quickly immersing in hot water. Secondly punch a 10mm hole into the mainline using the punch. Taking note of the orientation of the mainline, hole is often punch into the top of the pipe. Reminder: ensure the water is turned off if fixing an existing system. Now push the 10mm barbed end into the punched hole in the mainline to connect. The elbow take-off allows you to now pivot the fitting to any angle! Have the drip line running parallel to the mainline, example a thin nature strips. Alternatively, run the drip line from any angle from the mainline into your garden.

  • Taps into mainline of water supply
  • 90 Degree take-off angle
  • Connect drip line at angle
  • 13mm x 10mm barbed ends
Model Name
13mm x 10mm Barbed Elbow Adaptor
Model Number
Product Dimensions (mm)
W:30 H:45 L:10
Package Dimensions (mm)
W:140 H:140 L:70
Drip & Micro Irrigation Component
Irrigation System Component
Item Package Type
Recommended Use
