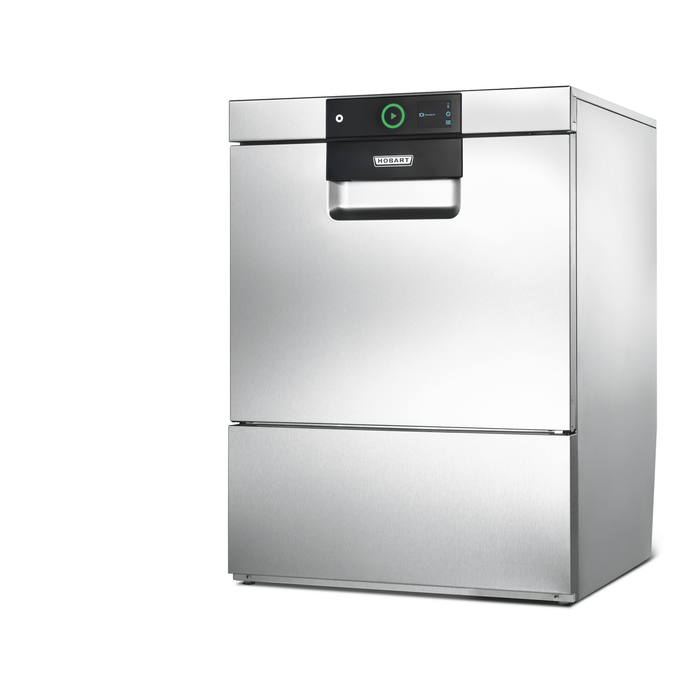

Hobart Profi Undercounter Dishwasher - Fx - Commercial Underbench Dishwasher (hb-fx)

Front door glass and dishwasher with optional double rack system Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks) 6 automatic cycles: short, standard, water X-change, STARCH-REMOVAL, permanent, hygiene Smooth counterbalanced door with closing mechanism Ready to install - completely equipped: fill / drain hose, power cord (415 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer Tank, frame, rinse arm and panels are stainless steel 1.4301 Integrated WiFi module 1 plate rack P-18-12 1 universal rack B-00-07 1 cutlery rack with 4 boxes 01-246175-1 Variants Order number Description FX-90B Basic model 240 / 50 / 1 - 15 A FX MARINE For non standard and marine voltages - call 1800 HOBART (462 278) * VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with singlebutton control and remaining cycle time indication. * WASHSMART app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order. * SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result. * 2IN1 double rack system: two racks can be washed in a single wash cycle. One rack of cups can be washed underneath, while a second rack containing dishes and cutlery can also be washed above it. Thanks to the optimum use of the entire wash chamber the performance of the machine can be doubled. * CLIP-IN wash and rinse arms: can be removed with one hand and without any tools. * Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display. * USB-interface: comfortable download of operational data in form of a protocol via USB. * GENIUS-X2 fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35%. * Interlocked strainer: prevents operation without tank strainer. * Optional refill signal: monitors contents of external as well as integrated chemical containers. * Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber. Watermark approved to WMTS-101:2018, Cert. WMKT21944 Technical data Cycle Times* 90 / 180 / 360 sec. and special cycles Water Consumption 2 L/Rack Tank Capacity 10.65 L Tank Heating 0.8 kW Power Supply 415 / 50 / 3NPE (240 / 50 / 1) Booster Loading - Standard 1.4 kW l 15 A Booster Loading - Alternative 6.2 kW l 15 A (3phs) Total Loading - Standard 2.7 kW l 15 A Total Loading - Alternative 7.7 kW l 15 A (3phs) Wash Pump 0.6 kW | 350 l/min Rack Size 500 x 500 |500 x 530 mm Loading Height 425 mm Noise Level 60.5 dB (A) Weight (gross / net) 70 / 60 kg *Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly. For machine protection the water hardness should not exceed 3odH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT. To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge (HYDROLINE STAR / STAR EXTRA) or a reverse osmosis system HYDROLINE PURE. Accessories Order number Description RO-S Small free standing reverse osmosis 01-515339-001 Insert for double racking 01-240349-001 Cabinet base: 435 mm high, with removable door, stainless steel, providing space for 2 empty racks or chemicals 04-006330-002 Low level chemical sensing lance set. HOBART WASHSMART app compatible. 01-294225-101 ROI & ROS Replacement carbon pre-filter cartridge Product-Dimensions: 600(W) x 825(H) x 603(D)mm See our full range of Hobart Products See Similar products from Commercial Underbench Dishwasher Category
