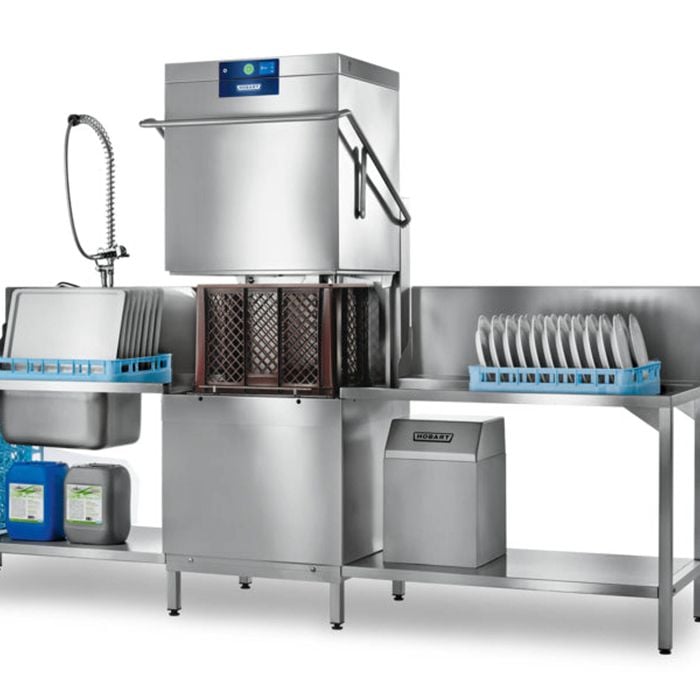

Hobart Profi Large Glass & Dishwasher - Amxxl - Passthrough Dishwashers (hb-amxxl)

Hood-type dishwasher for straight through or corner operation Nominal capacity up to 70 racks/h or 1,680 plates/h (with optional P-XL rack) or 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h Large chamber with 660 x 500 mm usable space Extra large loading height of 540 mm 6 automatic cycles: short, standard, intensive, starch-removal, permanent, hygiene Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water Heat and noise insulated hood Strainer soil sensor Refill signal (detergent / rinse aid) Self-cleaning programme USB-interface for comfortable download of operational data Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer Tank, frame, wash / rinse arms and panels are stainless steel 1,4301 1 plate rack P-18-12 1 tray rack T-06-09 1 cutlery rack C-01-07 Variants Order number Description AMXXL Basic model 415 / 50 / 3NPE - 32 A AMXXL-V AMXXL with addition of VAPOSTOP - prevents steam escaping from the machine when the hood is opened AMXXL-HL AMXXL with AUTO HOOD LIFT - closes hood at the push of a button & opens automatically at the end of a cycle. Back panel is included AMXXL-VHL AMXXL with VAPOSTOP and AUTO HOOD LIFT AMXXL-R AMXXL with DRAIN HEAT RECOVERY - cold water connection AMXXL-VR AMXXL with VAPOSTOP and DRAIN HEAT RECOVERY - cold water connection XL wash chamber: the large hood and chamber provide best wash results, e.g. for - up to 24 plates/rack - up to 8 sheets 600 x 400 mm - up to 8 trays 660 x 500 mm - up to 2 1/1 GN-boxes VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication WASHSMART app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing neededin each rinse cycle to the minimum in order to guarantee a fully hygienic wash result. Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions. CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools. USB-interface: download of operational data via USB GENIUS-X2 fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %. ROTOR-X wash system: separate rotating upper & lower 4-spoke wash arms deliver dynamic wash power. VAPOSTOP (optional): prevents vapour escapingfrom the machine when the hood is opened. Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced. Interlocked strainer: prevents operation without tank strainer. EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning. Watermark approved toWMTS-101:2018, Cert. WMKT21944 Technical data Cycle Times* 52 / 75 / 180 / Continuous (20mins) Water Consumption 2 l/rack Tank Capacity 40 litres Tank Heating 2.5 kW Power Supply 415 / 50 / 3NPE Booster Loading - Standard 12.4 kW Booster Loading - Alternative 6.2 kW Total Loading - Standard 16.3 l 3 x 32 A Total Loading - Alternative 10.1 l 3 x 25 A Wash Pump 1.1 kW Rack Size 500 x 500 l 600 x 500 mm Loading Height 540 mm Noise Level 67 dB (A) Weight (gross / net) 155 / 135 kg Accessories Order number Description SEF-15/055 Back panel (required if unit is not installed against wall, all units have closing frame to wall at rear) T-XL Tray rack 600 x 500 mm, for 10 GN-trays or 12 trays upto 470 mm length, height 11 cm P-XL Plate rack 600 x 500 mm, for 24 plates up to 240mm or 22 large plates (285mm), height 11cm B-XL Universal flat rack 600 x 500 mm, with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) SEF-14/063 Thermolabel temperature setting Product-Dimensions: 811(W) x 1610(H) x 742(D)mm See our full range of Hobart Products See Similar products from Passthrough Dishwashers Category
