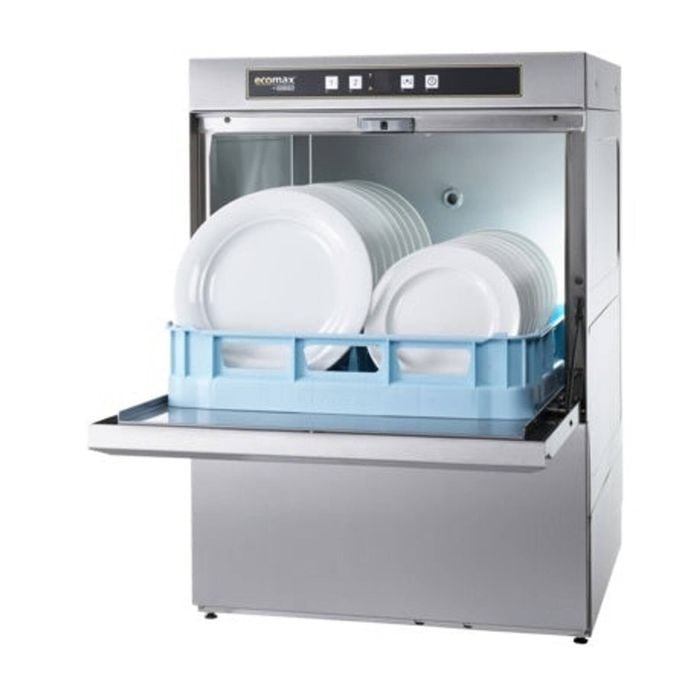

Hobart Ecomax Undercounter Glass & Dish Washer - 504 - Commercial Underbench Dishwasher (hb-ecomax504)

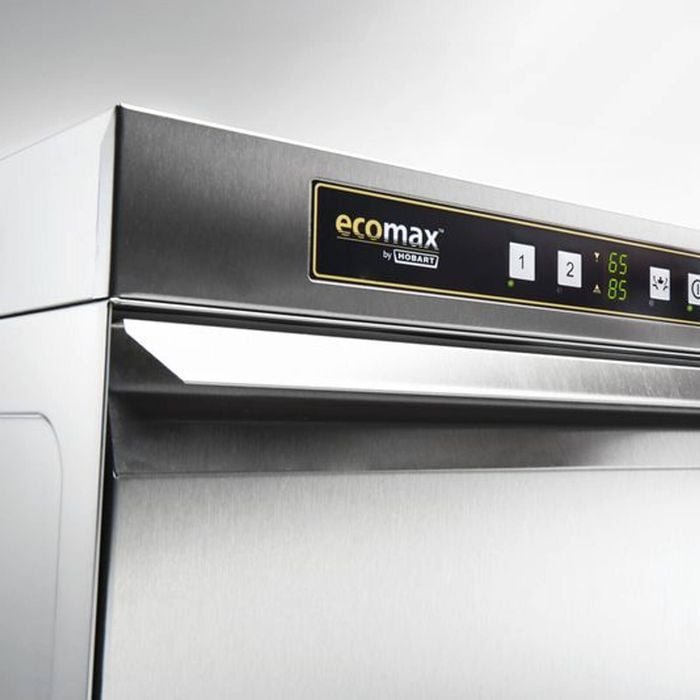

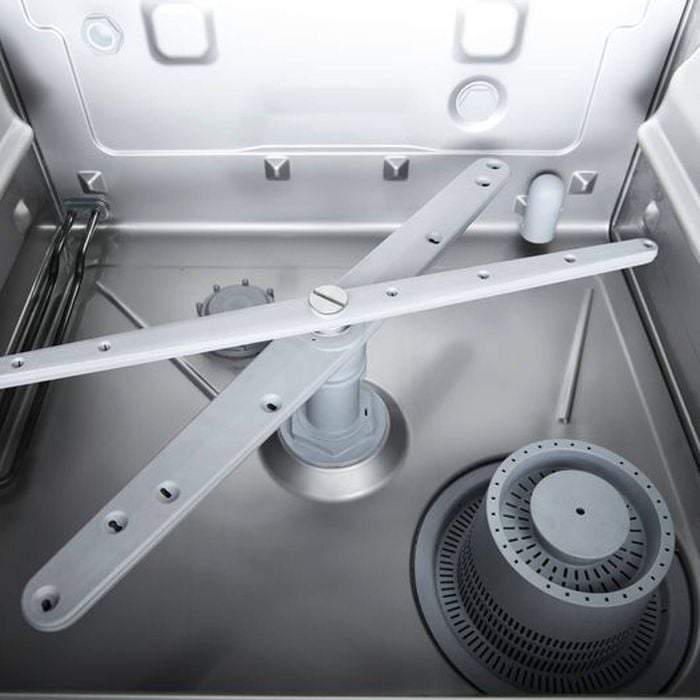

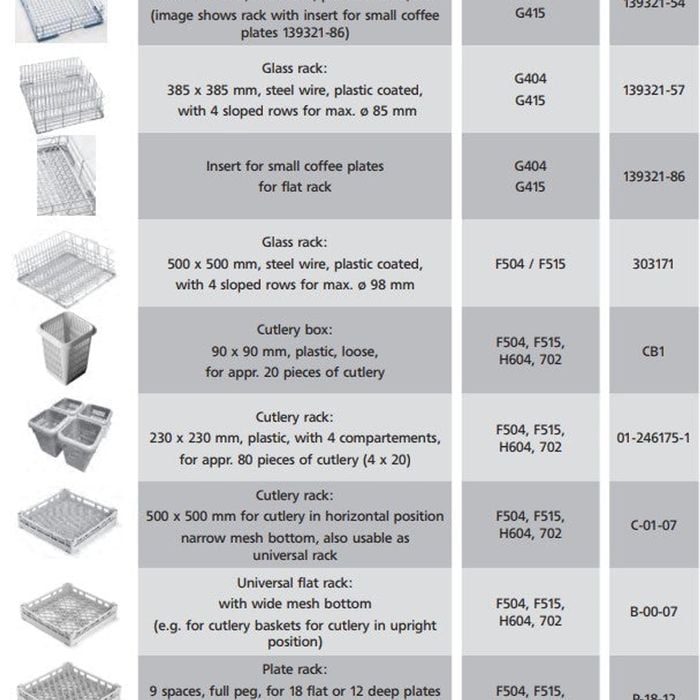

Front door glasswasher Nominal capacity up to 60 racks/h or 1,080 plates/h or 2,160 glasses/h 2 automatic cycles: 60 / 150 seconds Ready to install - completely equiped: fill / drain hose, power cord (240V connection), detergent dispenser, rinse aid dispenser, drain pump and back-flow preventer Tank, frame and panels are stainless steel 1.4301 1 x plate rack P-18-12 1 x universal rack B-00-07 1 x cutlery box Variants Order number Description ECOMAX504 ECOMAX undercounter glass/dishwasher - 240/50/1-15amp Easy-to-use electronic controls with 2 cycles 60 & 150 seconds Digital temperature guages Suits all racks up to 500 x 500mm - stainless steel grid shelf supports all racks sizes Re-circulating & low 2.3 litre rinse volume machine Double skin door for strength & durability for loading machine Usable chamber height of 360mm Polypropylene wash & rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash & rinse performance Self-cleaning cycle on pump drain out Full width wash tank strainers & wash pump inlet strainer to ensure machine reliability "Connect & use" - fill & drain hoses, pump-out drain, chemical dispensers & power lead / plug included for quick & easy installation Rear castors & adjustable front feet for easy cleaning Includes 1 x Plate rack, 1 x flat rack & 1 x cutlery holder NOT SUITABLE TO USE WITH REVERSE OSMOSIS SYSTEMS Watermark approved to WMTS-101:2018, Cert. WMKT21944 Notes: Not suitable for use with Reverse Osmosis Systems Site Water Supply Pressure 3 - 6 bar. Technical data Power Cord 15 A single phase plug & lead Wash Tank Temperature 55 - 60oC Rinse Water Temperature Minimum 82oC Cycle Times* 60 / 150 secs Water Consumption 2.3 litres Tank Capacity 25 litres Tank Heating 1.8 kW Power Supply 240 / 50 / 1 - 15 A Booster Loading - Alternative 1.9 kW Total Loading - Alternative 2.2 kW Loading Height 360 mm Low temp cut-out (thermostop) activated Yes Pump capacity 340 watts Product-Dimensions: 576(W) x 820(H) x 604(D)mm See our full range of Hobart Products See Similar products from Commercial Underbench Dishwasher Category
