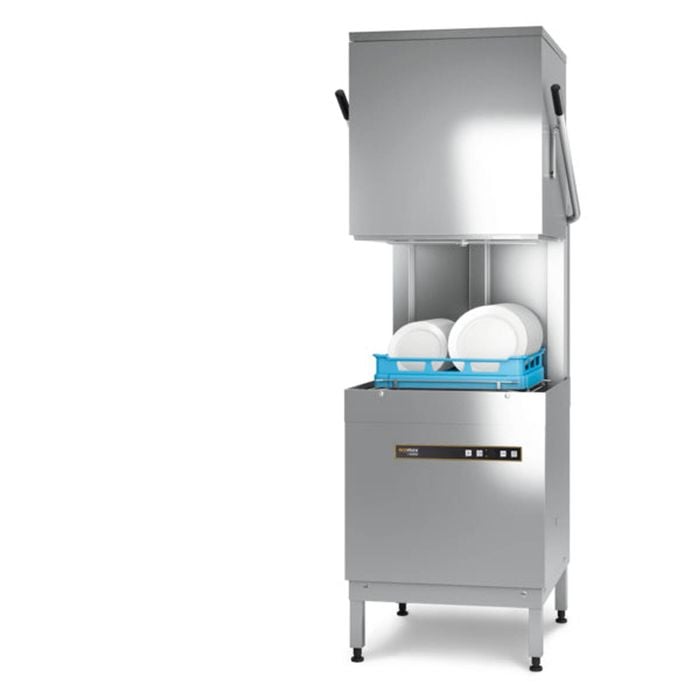

Hobart Ecomax Single Phase Hood Type Dish & Glasswasher - 604 - Passthrough Dishwashers (hb-ecomax604)

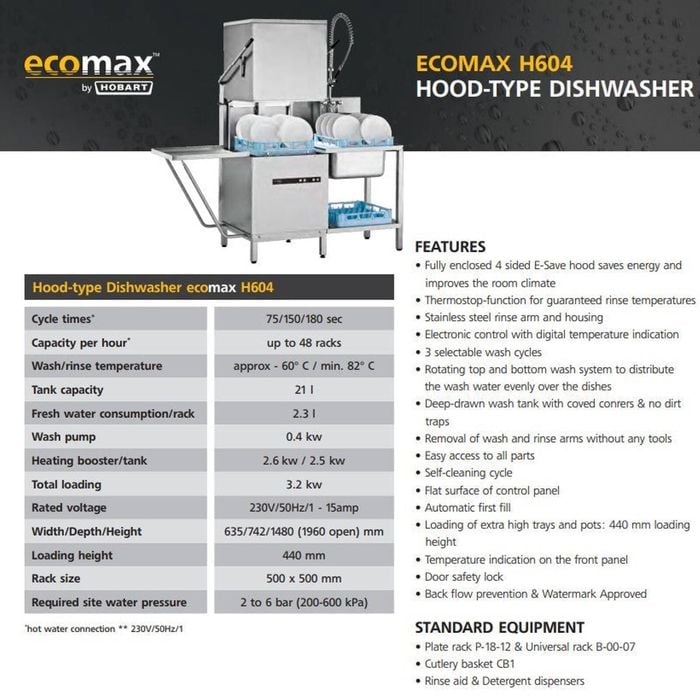

Hood-type dishwasher for straight through or a corner operation Nominal capacity up to 48 racks/h or 810 plates/h or 2,160 glasses/h 3 automatic cycles: 75 / 150 & 180 seconds Ready to install - completely equiped: fill / drain hose, power cord (240V, 15 amp), detergent dispenser, rinse aid dispenser, drain pump and back-flow preventer tank, frame, rinse arm and panels are stainless steel 1.4301 1 plate rack P-18-12 1 universal rack B-00-07 1 plastic cutlery box Variants Order number Description ECOMAX604 Ecomax hood machine - 240 / 50 / 1 - 15 amp EASY-TO-USE: electronic controls with 3 cycles - 75, 150 & 180 seconds Digital temperature gauges Suitable for all dish & glass washing applications. Useable chamber height of 440mm. Able to wash 1/1 GN pans when using optional open ended tray racks Low 2.3 litres per cycle rinse volume dish / glasswasher Fully enclosed 4 sided hood design - avoiding loss of energy / steam Optimum hygienic - deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE Polypropylene wash and stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash & rinse performance Wash pump inlet strainer to ensure machine reliability Includes chemical dispensers, fill hose, power lead / plug & pump-out drain for quick & easy installation Includes 1 x plate rack & 1 x cutlery holder Watermark approved to WMTS-101:2018, Cert. WMKT21944 NOT SUITABLE FOR USE WITH REVERSE OSMOSIS SYSTEMS MADE IN GERMANY Technical data Wash Tank Temperature 55 - 65oC Rinse Water Temperature Minimum 82oC Low temp cut-out (thermostop) activated Yes Cycle Times* 75 / 150 / 180 seconds Water Consumption 2.3 litres Tank Capacity 21 litres Tank Heating 2.5 kW Power Supply 240/50/1-15A Booster loading - Standard 2.6 kW Total loading - Standard 3.2 kW Pump capacity 0.4 kW Loading Height 440 mm Bench to bench - internal dimension 628 mm Product-Dimensions: 713(W) x 1480(H) x 742(D)mm See our full range of Hobart Products See Similar products from Passthrough Dishwashers Category
