Hobart Ecomax Compact Glasswasher - 404 - Commercial Glasswashers (hb-ecomax404)

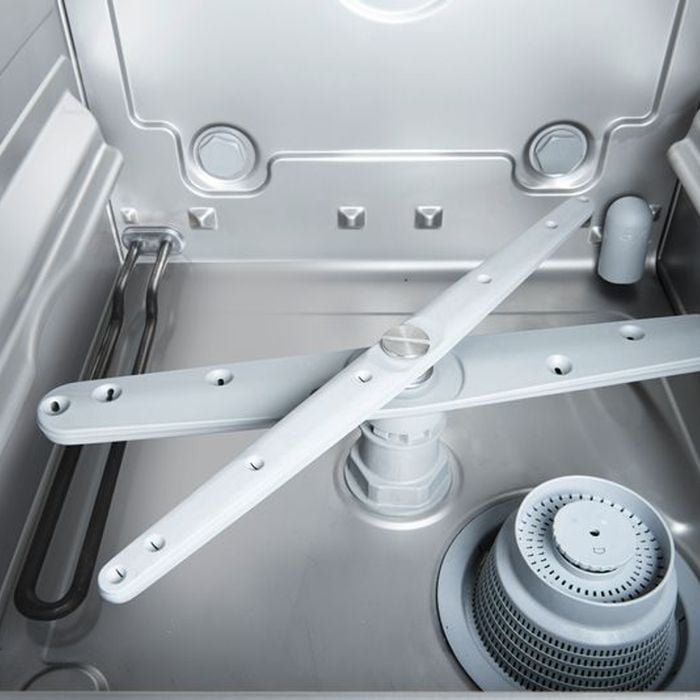

Front door glasswasher Nominal capacity up to 60 racks/h or 960 glasses/h 2 automatic cycles: 60 s / 120 s Ready to install - completely equipped: fill / drain hose, power cord (415 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer Tank, frame, rinse arm and panels are stainless steel 1.4301 1 glass rack 17 x 14" VARIANTS Order number Description ECOMAX404 ECOMAX compact glasswasher - 240 / 50 / 10-15 amp EASY-TO-USE: electronic controls with 2 cycles - 60 & 120 seconds. Re-Circulating and low 2.0 litre rinse volume glasswasher. Digital temperature gauges. Suitable for all glass, cup, and light duty washing aplications. Designed to suit racks 400x400mm & 17x14". Double skinned door for strength and durability. Polypropylene wash & rinse arms with patented WIDE-ANGLE FAN nozzle to maximise wash & rinse performance. Wash pump inlet strainer to ensure machine reliability. Connect & Use - fill and drain hoses, pump-out drain, chemical dispensers, and power lead / plug for quick and easy installation. Standard with 150mm stainless steel adjustable legs. Includes 1 x 17 x 14" glass rack. Watermark approved to WMTS-101:2018, Cert. WMKT21944 Notes: Not suitable for use with Reverse Osmosis Systems Site Water Supply Pressure 3 - 6 bar. TECHNICAL DATA Cycle Times* 60 / 120 seconds Water Consumption 2.0 L/rack Tank Heating 1.8 kW Power Supply 240 / 50 / 1 Booster Loading - Standard 1.9 kW Total Loading - Standard 2.1 kW Wash Pump 180 Watts Rack Size 400 x 400 mm | 17 x 14" Loading Height 308 mm Tank Capacity 10 Litre Power Cord 15 A single phase plug & lead Wash Tank Temperature 55-60oC Rinse Water Temperature Minimum 82oC ACCESSORIES Order number Description 1714 Flat Rack 432 x 356 mm (17 x 14") R-390 Base rack - 390 x 390 mm TH-PI400 Plate insert for R-396/R-390 GR400 Glass insert for R-396/R-390 Product-Dimensions: 436(W) x 850(H) x 534(D)mm See our full range of Hobart Products See Similar products from Commercial Glasswashers Category
