- Comprehensive connectivity options with pcie x16, m.2, sata, and usb ports
- High-speed ddr5 memory support up to 256gb
- High-performance amd am5 socket for powerful processors
- Amd ryzenâ„¢ 7000 series processors
- Amd x870

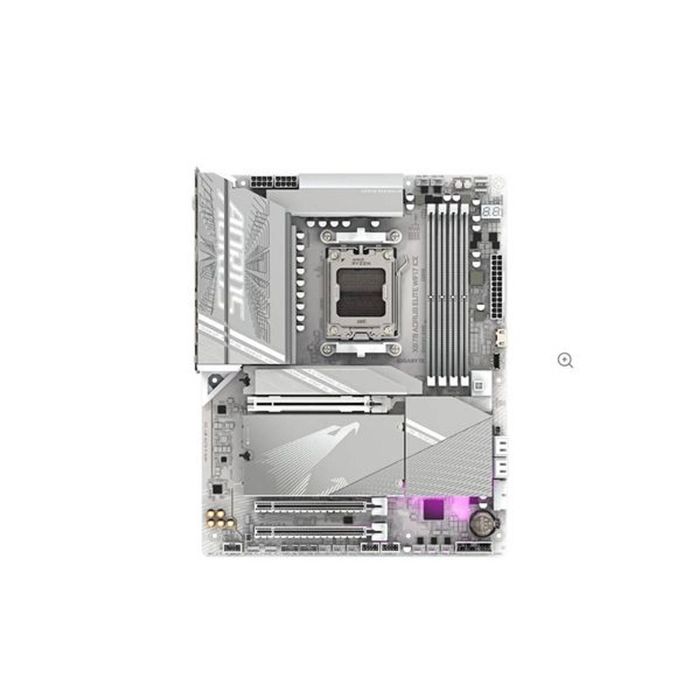

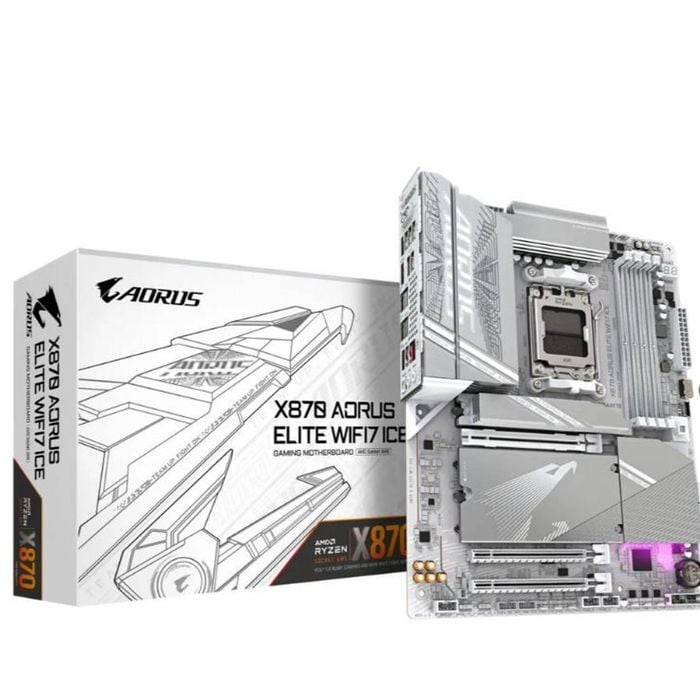

gigabyte x870 aorus elite wf7 ice amd am5 atx motherboard 4x ddr5~256gb,3x pcie x16, 4x m.2, 4x sata 6, 4x usb 3.2, 4x usb2.0, 2x usb-c
cpu
• amd socket am5, support for:
• amd ryzen™ 9000 series processors/
• amd ryzen™ 8000 series processors/
• amd ryzen™ 7000 series processors
chipset
• amd x870
memory
• 4 x ddr5 dimm sockets supporting up to 256 gb (64 gb single dimm capacity) of system memory
audio
• realtek® alc1220 codec
lan
• realtek® 2.5gbe lan chip (2.5 gbps/1 gbps/100 mbps)
unique features
• support for gigabyte control center (gcc)
* available applications in gcc may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• support for q-flash
• support for q-flash plus
• support smart backup
bundled software
• norton® internet security (oem version)
• lan bandwidth management software
operating system
• support for windows 11 64-bit
form factor
• atx form factor; 30.5cm x 24.4cm
