Gigabyte

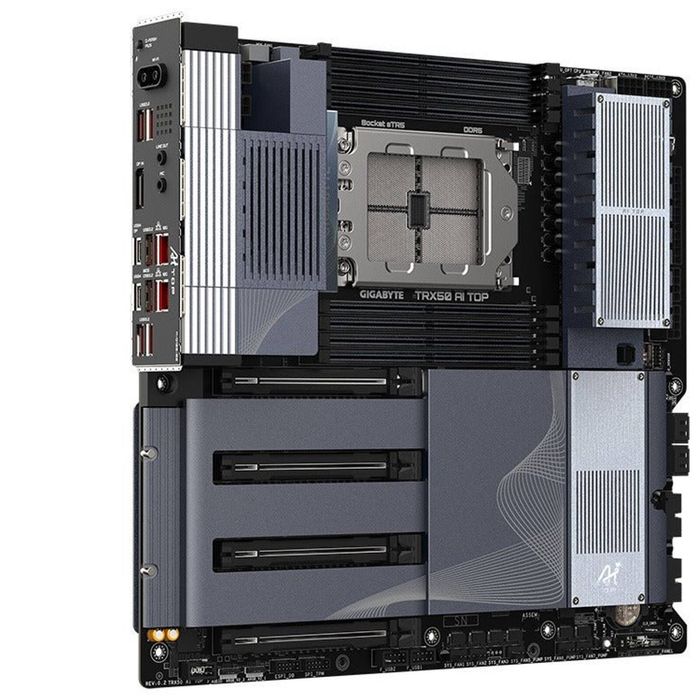

GIGABYTE TRX50 AI TOP Socket sTR5 Threadripper Motherboard

I/N: 1235958

Marketplace | Online only

$1,887.59

How to purchase

Marketplace | Online only

Items sold and delivered by I Gaming Computer. This item is not available in-store or for click & collect.

Marketplace FAQs

Delivery

Delivery policyReturns & refunds
I Gaming Computer
Enter postcode or suburb for estimate

  • Power delivery uses a 16+8+4 digital vrm phase design with 110 a smart power stages on a 14 layer, heavy copper pcb, providing the stable, high current supply needed for ryzen threadripper 7000/9000 cpus to run intensive workloads without throttling.

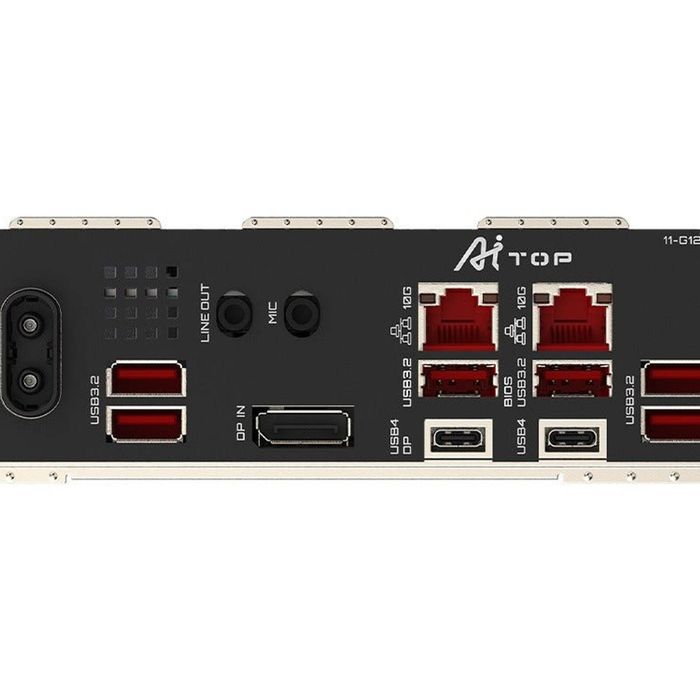

  • Connect instantly to ultra fast networks via dual 10 gbe lan ports and qualcomm wi fi 7 with bluetooth 5.3, while two rear usb4 type c (40 gbps) and six usb 3.2 connectors deliver rapid external storage and peripheral transfers.
  • Scale performance with four spaced pcie 5.0 x16 slots for multi gpu arrays, four pcie m.2 slots plus four sata 6 gb/s drives for nvme raid, and eight ddr5 ecc registered dimm slots supporting up to 2 tb of memory for demanding ai and workstation tasks.
<div class="product-description-component"> <h2>Product description</h2> <p>Construct the ultimate local machine learning workstation with the GIGABYTE TRX50 AI TOP, a premium E-ATX motherboard built for AMD Socket sTR5 processors. This enterprise-grade board features an uncompromised digital VRM phase architecture and server-level heavy-copper layers to handle massive processing calculations without throttling. Engineered for extreme hardware flexibility, it incorporates four spaced PCIe 5.0 slots capable of hosting multi-GPU arrays concurrently, coupled with eight DDR5 ECC registered DIMM channels supporting up to 2TB of high-speed temporary system memory. Outfitted with dual blazing-fast 10GbE network interfaces, modern Wi-Fi 7 wireless connectivity, and direct dual USB4 Type-C peripheral options, this computing platform provides massive local data throughput and unmatched hardware reliability for advanced developers.<br><img src="https://centrecomstatic.s3.amazonaws.com/images/editor/image/20250909/20250909111509_8242.jpg"><br></p> <h2>Specification<br> </h2> <table> <thead> <tr> <td><strong>Feature</strong></td> <td><strong>Specification</strong></td> <td><strong>Detail</strong></td> </tr> </thead> <tbody> <tr> <td><span><b>Processor Socket</b></span></td> <td><span>AMD Socket sTR5</span></td> <td><span>Supports Ryzen Threadripper 7000 / 9000 & PRO Series</span></td> </tr> <tr> <td><span><b>Chipset Logic</b></span></td> <td><span>AMD TRX50 Hub</span></td> <td><span>Enterprise Workstation Platform Architecture</span></td> </tr> <tr> <td><span><b>Memory Architecture</b></span></td> <td><span>8x DDR5 ECC R-DIMM Slots</span></td> <td><span>Max 2TB Capacity / 8-Ch (PRO) or 4-Ch (Standard)</span></td> </tr> <tr> <td><span><b>Expansion Slot Grid</b></span></td> <td><span>4x PCIe 5.0 x16 Slots</span></td> <td><span>Optimised Spacing Layout for Multi-GPU Node Clusters</span></td> </tr> <tr> <td><span><b>Storage Interfaces</b></span></td> <td><span>4x PCIe M.2 Slots + 4x SATA 6Gb/s</span></td> <td><span>High-Speed NVMe RAID Array Configuration Ready</span></td> </tr> <tr> <td><span><b>Power Delivery Core</b></span></td> <td><span>16+8+4 Digital VRM Phases</span></td> <td><span>110A Smart Power Stage Server-Level 14-Layer PCB</span></td> </tr> <tr> <td><span><b>Wired Network Ports</b></span></td> <td><span>Dual 10GbE LAN (Marvell AQtion)</span></td> <td><span>Blazing-Fast Ultra-Low Latency Infrastructure</span></td> </tr> <tr> <td><span><b>Wireless Interface</b></span></td> <td><span>Qualcomm Wi-Fi 7 + Bluetooth 5.3</span></td> <td><span>Includes High-Gain Directional Omnidirectional Antenna</span></td> </tr> <tr> <td><span><b>Rear Output Ports</b></span></td> <td><span>2x USB4 Type-C (40Gbps) / 6x USB 3.2</span></td> <td><span>Rapid External Mass Storage Data Transfer Speeds</span></td> </tr> <tr> <td><span><b>Audio Configuration</b></span></td> <td><span>Realtek ALC4080 + DTS:X Ultra</span></td> <td><span>Dedicated Hardware Shielding Noise Detection</span></td> </tr> <tr> <td><span><b>Physical Dimensions</b></span></td> <td><span>E-ATX Form Factor</span></td> <td><span>30.5 cm x 33.0 cm Oversized Chassis Clearance Required</span></td> </tr> </tbody> </table> </div>
