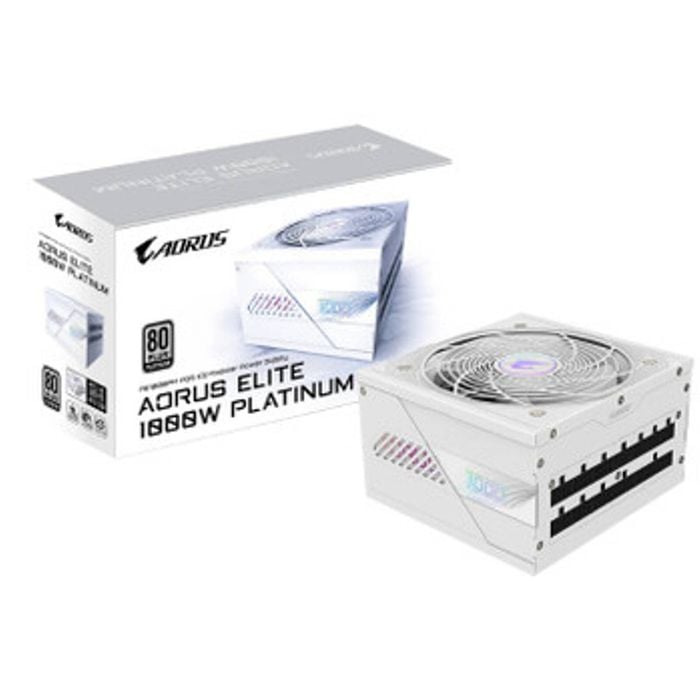

Gigabyte Gp-ae1000pm Pg5 Ice 1000w Psu Power Supply

Gigabyte gp-ae1000pm pg5 ice 1000w psu power supply model gp-ae1000pm pg5 ice type intel form factor atx 12v v3.0 pfc active pfc (>0.9 typical) input voltage 100-240 vac (full range) input current 15-6.5a input frequency 60-50 hz output capacity 1000w dimension 150 x 140 x 86mm fan type 120mm fluid dynamic bearing (fdb) fan 80 plus platinum efficiency 92% at typical load mtbf >100,000 hours protection ovp/opp/scp/uvp/ocp/otp power good signal 100-150ms hold up time >16ms cable type flat, all white connectors atx/mb 20+4 pin x 1 : 650mm*1 cpu/eps 4+4 pin x 2 : 700mm*2 pci-e 16 pin x 1: 700mm*1 pci-e 6+2 pin x 6 : 650mm+150mm*2, 750mm*2 sata x 8 : 600mm+150mm+150mm+150mm*2 4 pin peripheral x 4 : 500mm+150mm+150mm+150mm*1 * the entire materials provided herein are for reference only. Gigabyte reserves the right to modify or revise the content at anytime without prior notice. * advertised performance is based on maximum theoretical interface values from respective chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * all trademarks and logos are the properties of their respective holders. * due to standard pc architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
