- Gigabyte gv-n5080aero oc-16gd
- Geforce rtx 5080 graphics card with 16gb gddr7 memory
- Pcie 5.0 support, 850w power supply, and hdmi 2.1b for 4k gaming
- 1b x1 specification graphics processing geforce rtx™ 5080 core clock 2730 mhz (reference: 2617 mhz) cuda® cores 10752 memory clock 30 gbps memory size 16gb memory type gddr7 memory bus 256 bit card bus pci-e 5
- 0 digital max resolution 7680 x 4320 multi-view 4 card size l=304 w=126 h=50 mm pcb form atx directx directx 12 api opengl opengl 4

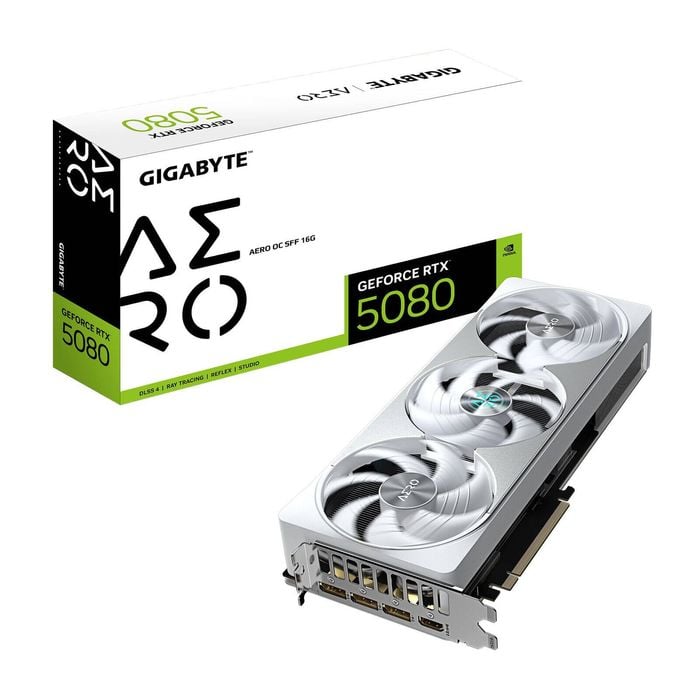

Gigabyte GeForce RTX™ 5080 AERO OC SFF 16G, 2730 MHz, CUDA 10752, 30 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 850W, DisplayPort 2.1b x3 HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5080
Core Clock
2730 MHz (Reference: 2617 MHz)
CUDA® Cores
10752
Memory Clock
30 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
850W
Power Connectors
16 pin*1

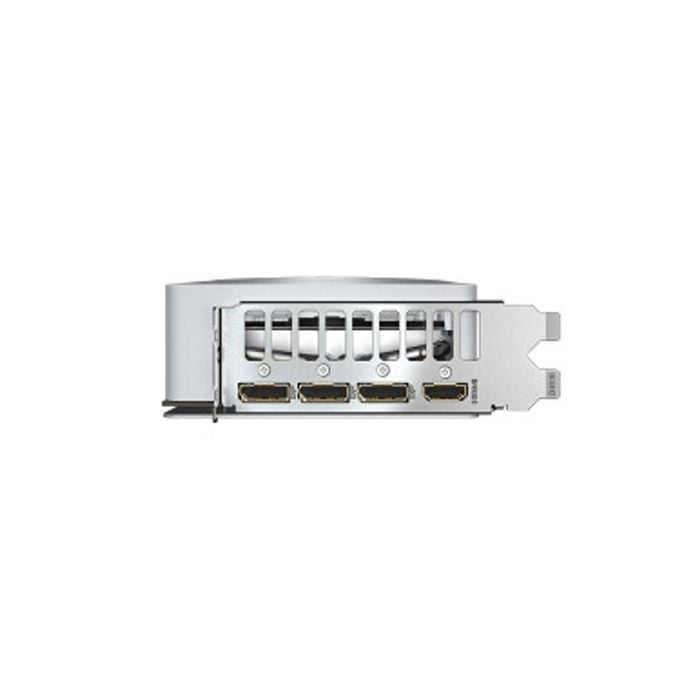

Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. VGA manual
2. Warranty notice
3. 1x 12V-2x6 to 3x PCIe 8pin adapter
4. Versatile VGA holder
5. Versatile VGA holder manual
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5080
Integrated with 16GB GDDR7 256bit memory interface

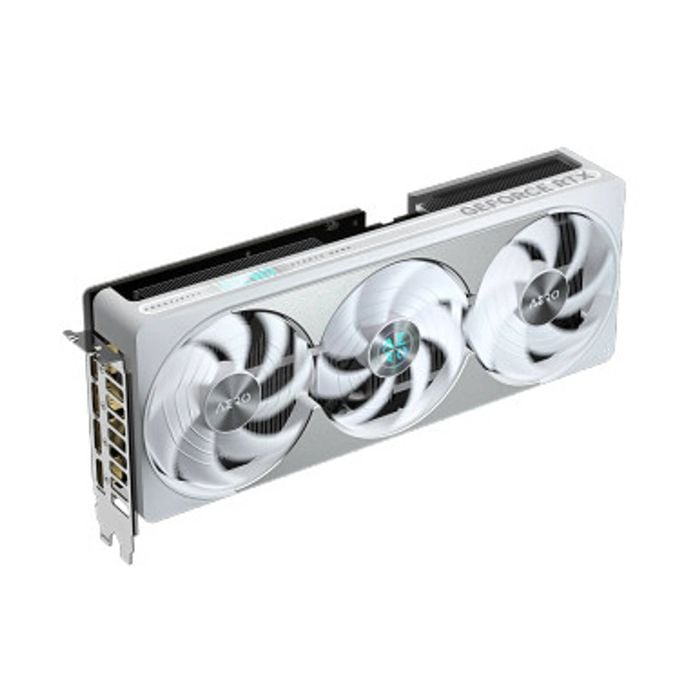

WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WIND...
