- Gigabyte gv-n507twf3oc-16gd geforce rtx 5070 ti
- 16gb gddr7, pcie 5.0 with 750w power
- Perfect for immersive gaming with high frame rates
- 1b x1 specification graphics processing geforce rtx™ 5070 ti core clock 2497 mhz (reference: 2452 mhz) cuda® cores 8960 memory clock 28 gbps memory size 16gb memory type gddr7 memory bus 256 bit card bus pci-e 5
- 0 digital max resolution 7680 x 4320 multi-view 4 card size l=304 w=126 h=50 mm pcb form atx directx directx 12 api opengl opengl 4

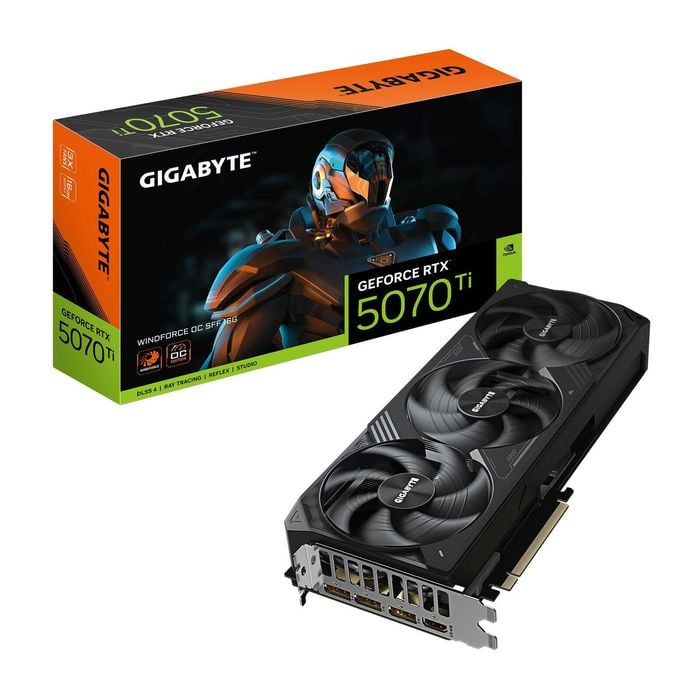

Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G, 2497 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W,DisplayPort 2.1b HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5070 Ti
Core Clock
2497 MHz (Reference: 2452 MHz)
CUDA® Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin*1
Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. VGA manual
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel...
