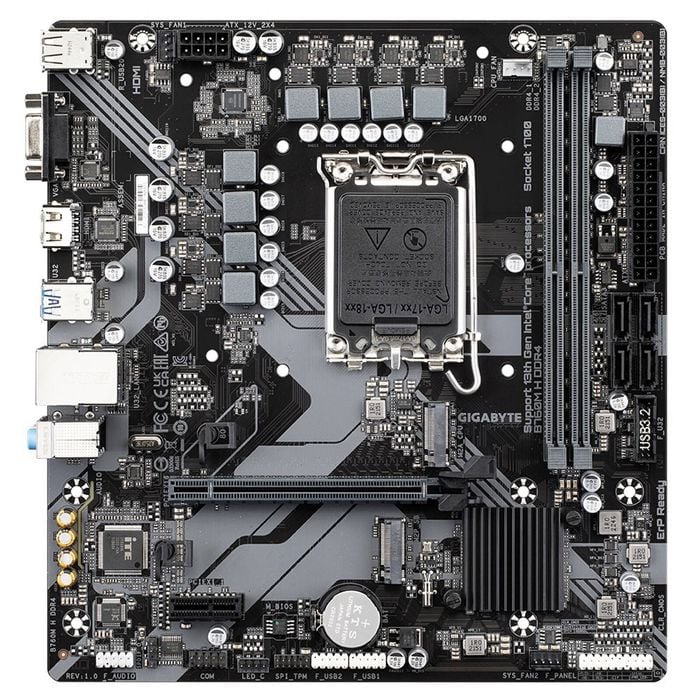

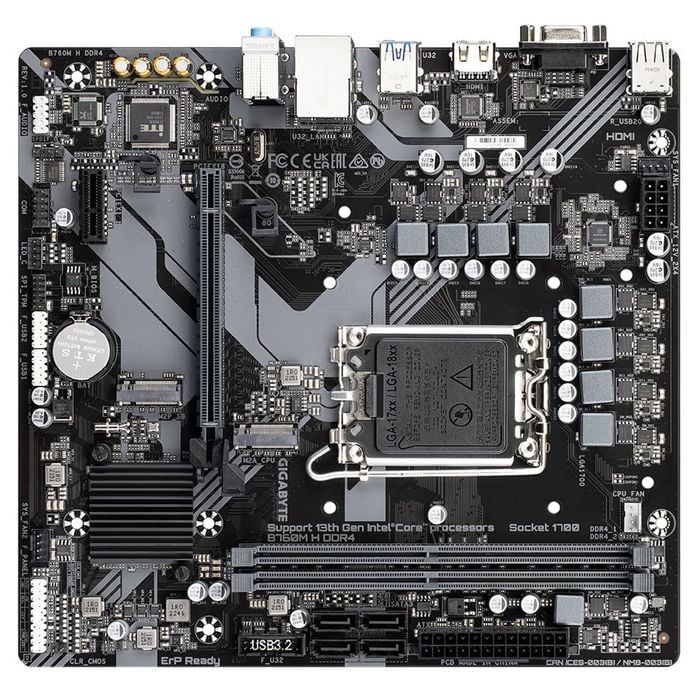

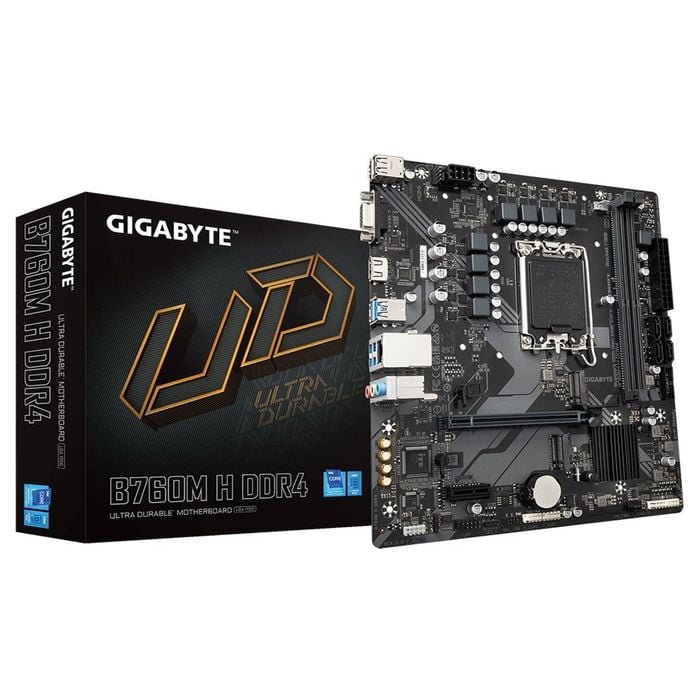

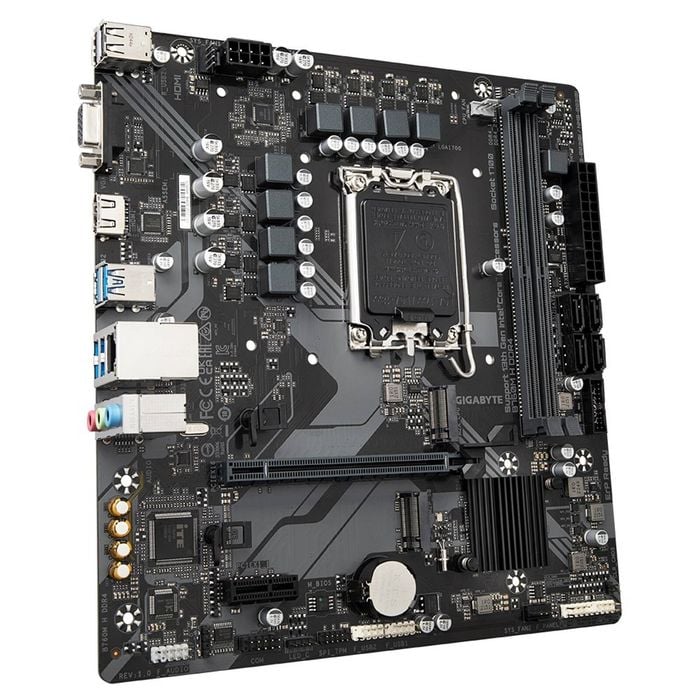

Gigabyte B760m H Ddr4 Intel Lga 1700 M-atx Motherboard, 2x Ddr4 ~64gb, 1x Pci-e X16, 2x M.2, 4x Sata, 3x Usb 3.2, 2x Usb 2.0,

Gigabyte b760m h ddr4 intel lga 1700 m-atx motherboard, 2x ddr4 ~64gb, 1x pci-e x16, 2x m.2, 4x sata, 3x usb 3.2, 2x usb 2.0,features:cpu: lga1700 socket: support for the 13th and 12thgeneration intel® core™, pentium® gold and celeron® processorsl3 cache varies with cpuchipset: intel® b760 express chipset.memory:support for ddr4 3200/3000/2933/2666/2400/2133 mt/s memory modules2 x ddr4 dimm sockets supporting up to 64gb (32 gb single dimm capacity) of system memorydual channel memory architecturesupport for ecc un-buffered dimm 1rx8/2rx8 memory modules (operate in non-ecc mode)support for non-ecc un-buffered dimm 1rx8/2rx8/1rx16 memory modulessupport for extreme memory profile (xmp) memory modules(please refer "memory support list" for more information.)onboard graphics:integrated graphics processor-intel® hd graphics support:- 1 x d-sub port, supporting a maximum resolution of 1920x1200@60 hz- 1 x hdmi port, supporting a maximum resolution of 4096x2160@60 hz* support for hdmi 2.0 version and hdcp 2.3.expansion slots:cpu:- 1 x pci express x16 slot, supporting pcie 4.0 and running at x16chipset:- 1 x pci express x1 slot, supporting pcie 3.0 and running at x1storage interface:1 x 24-pin atx main power connector1 x 8-pin atx 12v power connector1 x cpu fan header2 x system fan headers1 x rgb led strip header2 x m.2 socket 3 connectors4 x sata 6gb/s connectors1 x front panel header1 x front panel audio header1 x s/pdif out header1 x usb 3.2 gen 1 header2 x usb 2.0/1.1 headers1 x trusted platform module header (for the gc-tpm2.0 spi/gc-tpm2.0 spi 2.0 module only)1 x serial port header1 x clear cmos jumperback panel connectors:2 x usb 2.0/1.1 ports1 x d-sub port1 x hdmi port4 x usb 3.2 gen 1 ports1 x rj-45 port3 x audio jacksoperating systemsupport for windows 11 64-bitsupport for windows 10 64-bitform factormicro atx form factor; 23.0cm x 21.5cm
