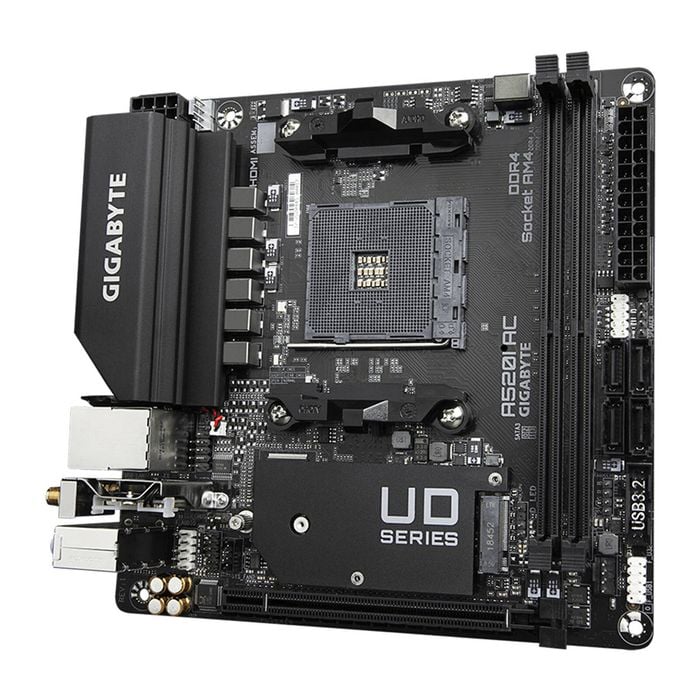

Gigabyte A520i Ac 1.4 Amd Mini-itx Mb 2xddr4 1xm.2 Pcie3.0 1xdp 2xhdmi 802.11ac Wifi Rgb Fusion

Gigabyte a520i ac 1.4 amd mini-itx motherboard gigabyte a520i ac amd a520 mini-itx ultra durable motherboard with direct 6 phases digital vrm, onboard intel 802.11ac wifi, gigabyte gaming lan with bandwidth management, pcie 3.0 x4 m.2, smart fan 5 with fan stop, rgb fusion 2.0, q-flash plus. Product specifications • cpu type: socket am4 • vendor: amd • speed support am4 series • l2/l3 cache size embedded in cpu • chipset north bridge a520 • flash rom 256mb x1 • super io ite 8688 • heatsink/heatpipe heatsink for main chip • memory socket 2 dimm • frequency ddr4, 3200 • type 2-ch ddr4 • serial ata controller integrated in main chip • spec sata 6gb/s • raid or scsi controller integrated in main chip • spec raid 0/1/10 • graphics interface pci-e 3.0 x16 • controller integrated in cpu • vram size (optional) share 16gb(max.) • driect x support directx 12 • audio codec realtek alc887 • channel 7.1 channel • lan controller realtek 8118 • spec gbe • usb controller integrated in main chip/integrated in cpu • spec usb 3.2 gen1/usb 2.0 • power management power connector atx 2*12 pin/atx 12v 2*4 pin • pcb form factor mini-itx • layer 8-lay • 2oz copper pcb n/a • size (d x w) 170x170mm • color dark brown • expansion pci express x1 slot n/a • pci express x16 slot yes, 1 • m.2 yes/ socket 1 for wifi, 1/yes/ socket 3 for ssd (pcie & sata mode), 1 • other features aorus n/a • packing sata cable yes, 2 • color box size mini itx (222x189x78mm) • wifi controller intel 1x1 ac3168
