- Built tough : manufactured to oem specifications using heat-treated chrome steel for maximum strength and long service life.
- Contamination protection : high-quality neoprene dust boots and stainless-steel clamps keep out dirt and moisture for reliable performance.
- Smooth performance : packed with moly grease to reduce friction and ensure smooth operation at varying angles, speeds, and high revolutions.
- Oem confidence : designed and tested to oem standards, giving you peace of mind in durability and fitment.

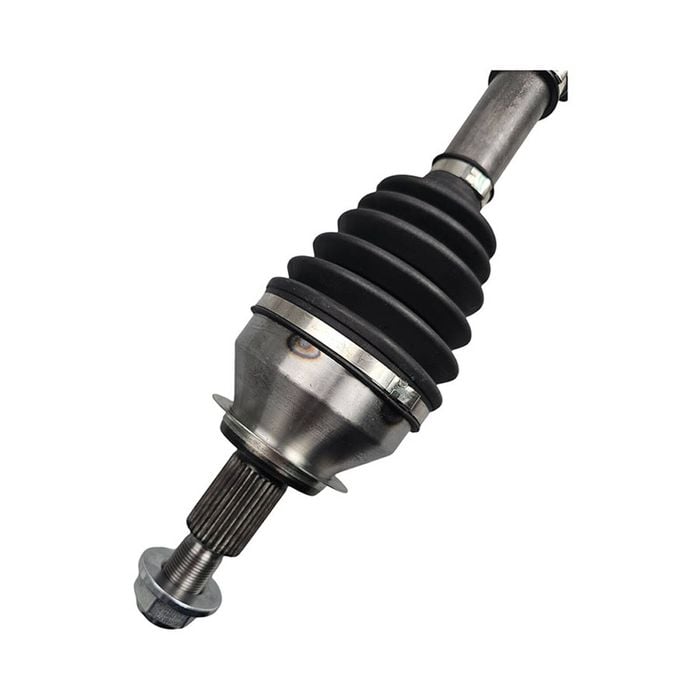

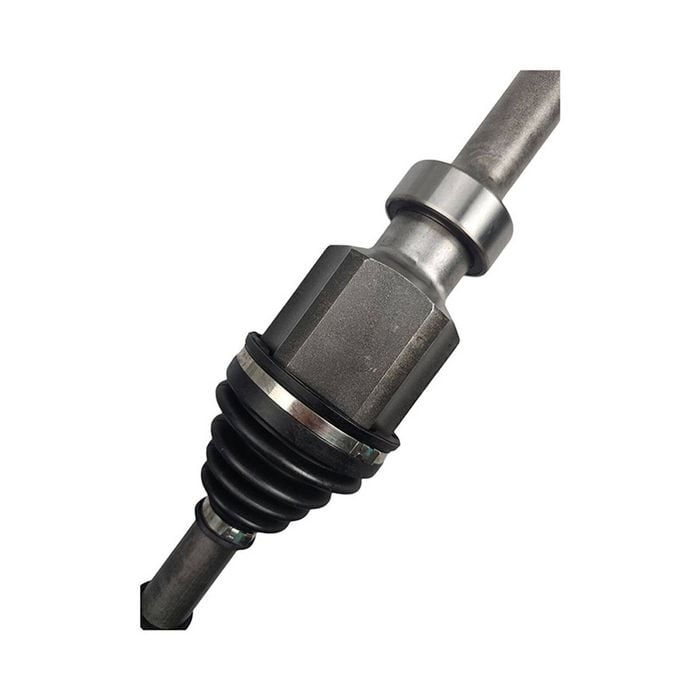

CV Axle Drive Shaft - Right Front Hand Side
Automatic AWD
Vehicle Fitment For:
Mazda CX-9 TC 2.5L PY 16V DOHC VVT AWD (07/2016 - ON) AWD Only
Includes Sub-models AZAMI, AZAMI 100TH ANNIVERSARY, AZAMI LE, GT, GT SP, SPORT, TOURING
Sizing and Specifications
Length (Compressed): 1056mm
Spline Count - Outer/Wheel Side: 31T
Spline Count - Inner/Diff Side: 31T
Outboard Joint Type: Ball
Inboard Joint Type: Tripod
Extension Shaft Bearing OD: 70mm
Extension Shaft Bearing Width: 25mm
Extension Shaft Length From Outside of Bearing: 442.5mm
Hub Nut Style: M22 x 1.5
What's IncludedÂ
1 x CV Shaft
