Exotronic
Delivery Included
Exotronic

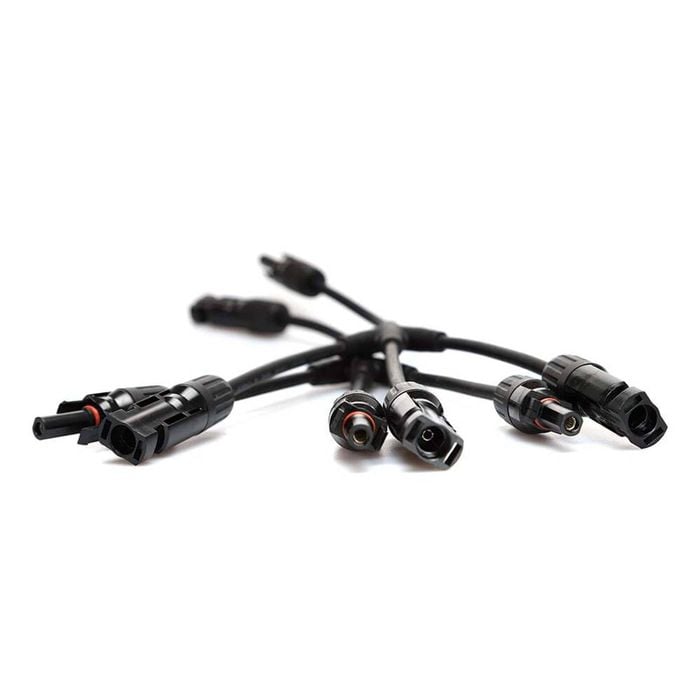

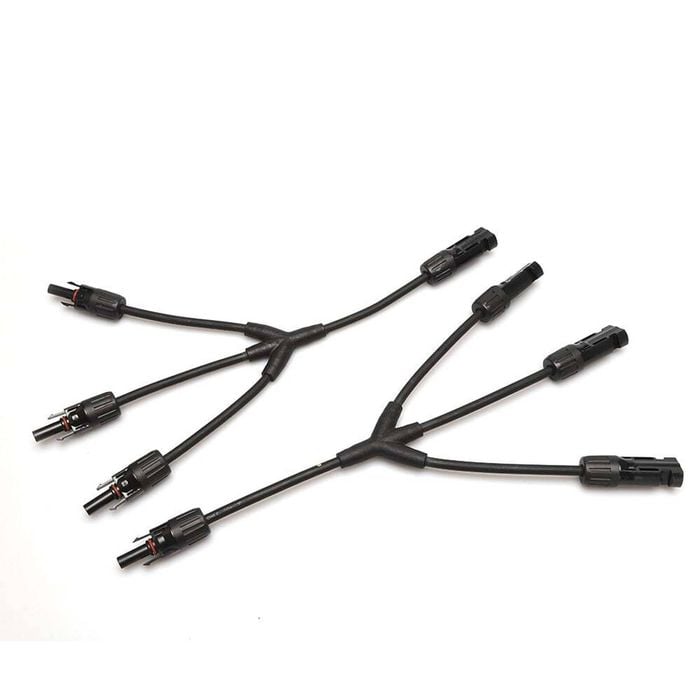

Exotronic 3 to 1 'Y' Branch Joiner Solar Connector Pair

I/N: 1179577

Marketplace | Online only

$26.15

How to purchase

Marketplace | Online only

Items sold and delivered by Solar 4 RVs. This item is not available in-store or for click & collect.

Marketplace FAQs

Delivery

Delivery policyReturns & refunds
Solar 4 RVs
Enter postcode or suburb for estimate

  • Mc4 compatible 3-to-1 y branch connector pair for paralleling three solar panels into one output
  • Rated for 30a current and up to 1000v (tuv) / 600v (ul) with 6kv withstand
  • Ip67 waterproof and uv resistant for reliable outdoor performance
  • Pc/pa insulation with tin-plated copper contacts for low resistance (<0.5mω)

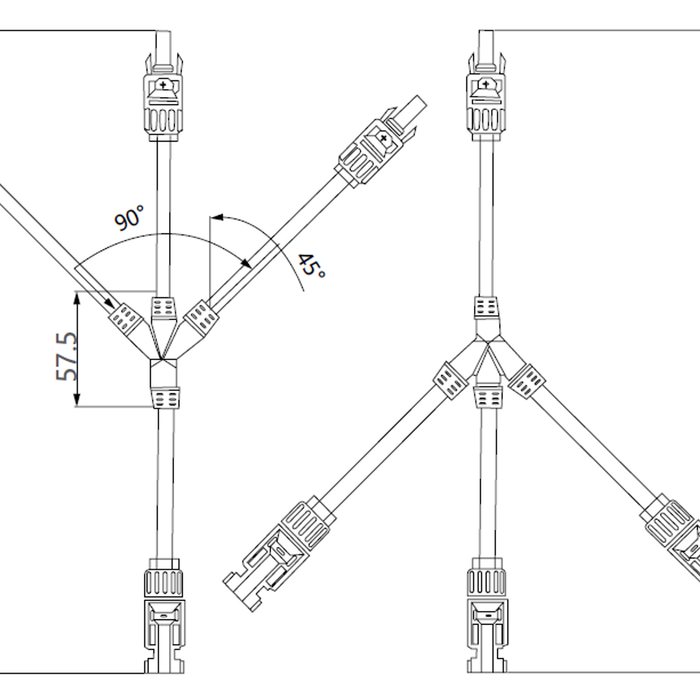

  • Approx 300mm end-to-end with φ4mm pin, operating temperature -40°c to +85°c
The Exotronic 3 to 1 Y Branch MC4 Compatible Solar Connector Pair allows you to parallel three solar panels into a single output, increasing system capacity. It features a 30A current rating, 1000V TUV/600V UL voltage rating, and 6KV withstand. The connectors are IP67 waterproof and UV resistant, with PC/PA insulation and tin-plated copper contacts for efficient conductivity. With an approximate 300mm length and Φ4mm pin, this pair is designed for reliable solar array expansion.
