How to install masonry fixings

Svend
View the video

How to install masonry fixings

View the video
×

Project Overview

To hang heavy things off brick walls such as timber wall mounts or picture frames, you need to choose the right masonry fixing. We’ll take you through a few different ways using wall plugs and masonry bolts.
Continue to step-by-step instructions
build
View the video
00:10
×

A simple tip for easier drilling

A magnetic nut setter tip attaches the screw to your drill magnetically, so you don’t have to hold it while you drill. It’s like having a second pair of hands to hold the screw in place.

Step by Step Instructions

1 Mark out your holes
2 Install screws in the wall
3 Installing a masonry bolt
  • Step 1. Mark out your holes

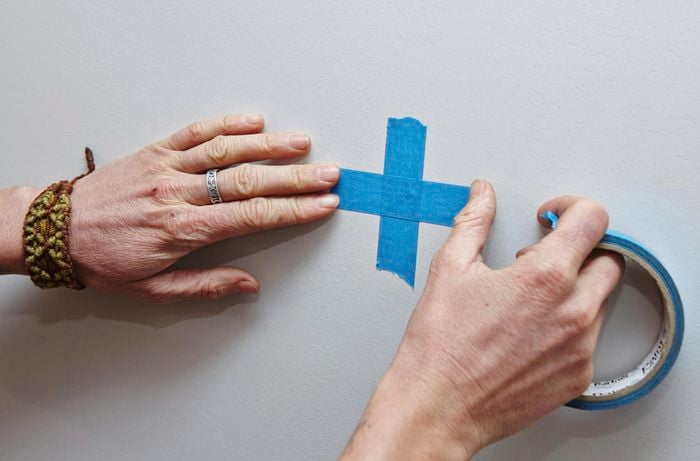

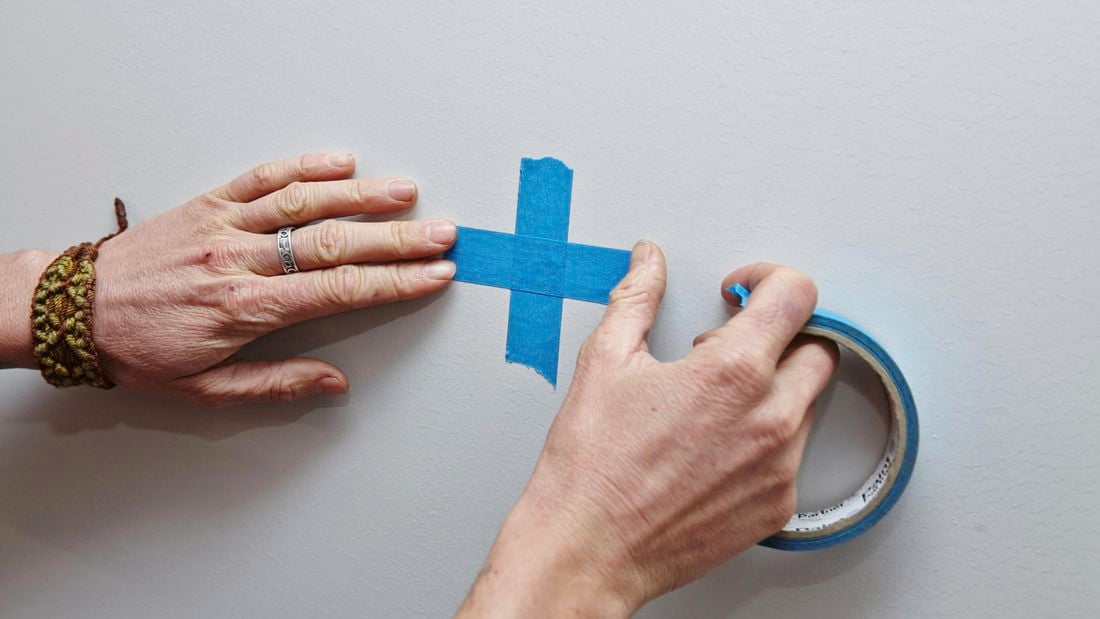

    Mark out where you want the holes to go on the wall with a pencil. Then cover the area you will drill with masking tape. This will make sure that your drill doesn’t slip and damage your wall.

  • Step 2. Install screws in the wall

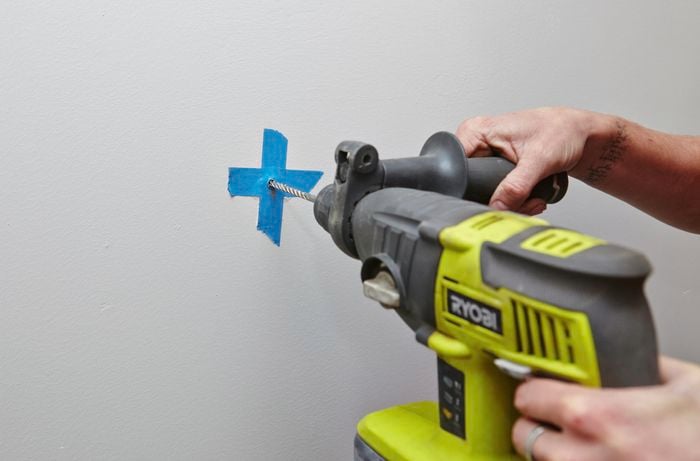

    Wall plugs are colour coded which indicate how much weight they can bear or what type of screw they can hold. Make sure you choose the one you need. With the right sized masonry bit for your wall plug and screw size, predrill a hole using the hammer drill to the depth of your screw. Tap a wall plug into the hole and then you can screw into it. Remove the tape and you’re ready to hang.

  • Step 3. Installing a masonry bolt

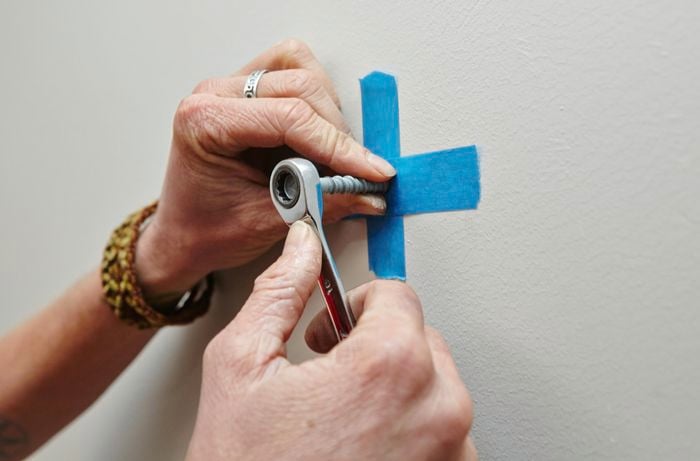

    Pre drill the hole using the hammer drill and masonry bit the same size as the masonry bolt you will be using. Then use a spanner to screw the masonry bolt tightly into the wall. Remove the tape and you’re ready to hang.

Tools and Materials

Tools

  • Hammer
  • Hammer drill
  • Long nosed pliers
  • Pencil
  • Safety gear

Materials

  • Masonry bits
  • Roll of wall plug
  • Screws
  • Wall plugs
