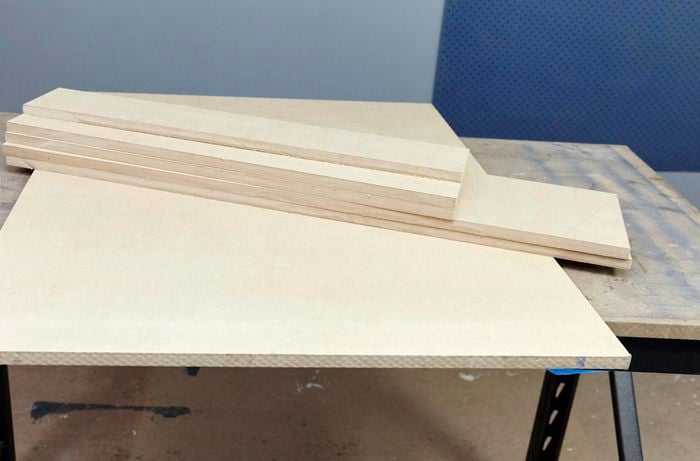

Cut the MDF board to:
Cut the edging fascia trim to the following lengths:

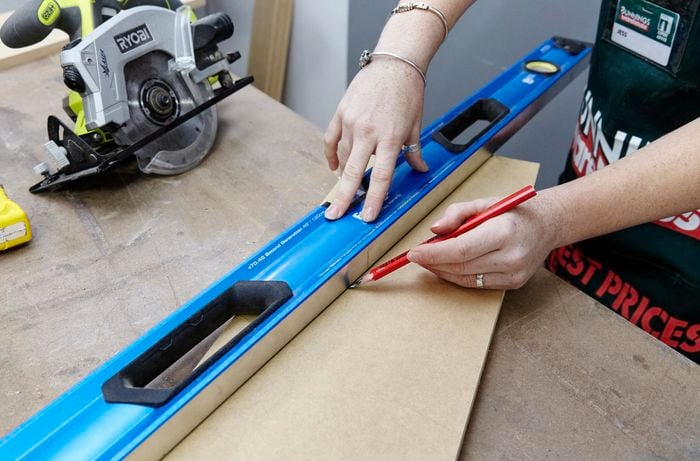

The side panels of this unit will rake back. Take one of the 200mm x 16mm x 950mm lengths and make a mark 50mm from the back edge and then 340mm up from the front edge. Join those two marks with a pencil line. Then cut along it with the circular saw. When cutting MDF always work in a well ventilated area and use appropriate safety gear, including a respirator mask. Repeat this to make the second side.

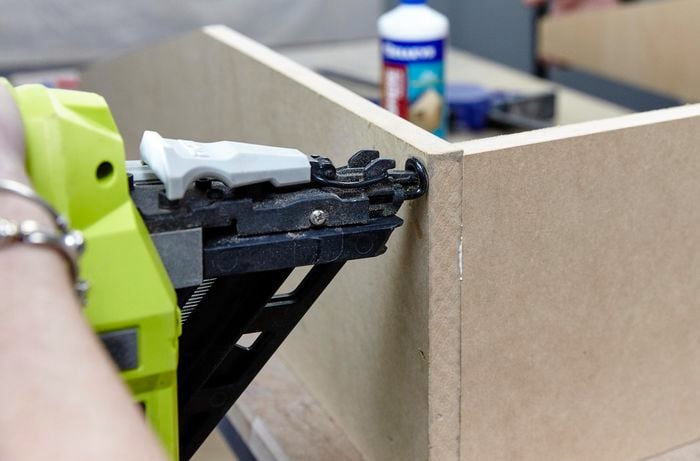

Lay out the 200mm x 16mm x 715mm base and one of the sides you cut. Glue the edges, then clamp them together and secure into place with the nail gun. Repeat this for the other side as well.

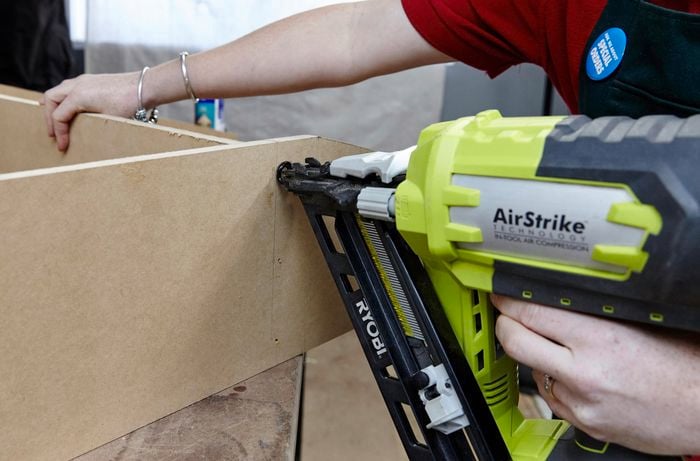

Measure 310mm up the side from the base and mark for a shelf. The underside of the shelf will sit on this mark. Apply glue to the ends of the shelf and put it in place. Then you can secure it with the nail gun. A handy tip is to use the set square to mark the face side for where the nails should go. Measure 305mm up from the first shelf and mark for the second shelf. Glue this and fix this second shelf into place.
Apply a bead of glue on the backs of the shelves and around the frame of the storage unit. Then with someone to help you, lift the MDF backing board into place, making sure the edges are flush. Use the nail gun to secure the back. A timber offcut underneath the unit is handy to hold the frame secure while you do this.

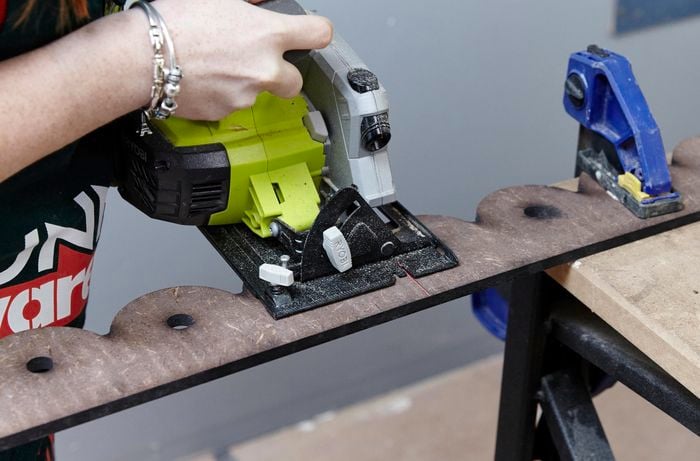

Measure and mark the scalloped edged trim to fit the top and lower shelves. Make sure the pattern is even on both sides. Use a circular saw to cut the trim where you marked. Before fixing off, make sure that the top of the edging is not flush with the top of the shelf, but has a 30mm lip – this is to stop books from slipping off. Attach the scalloped edging to both shelves with glue and a nail gun.

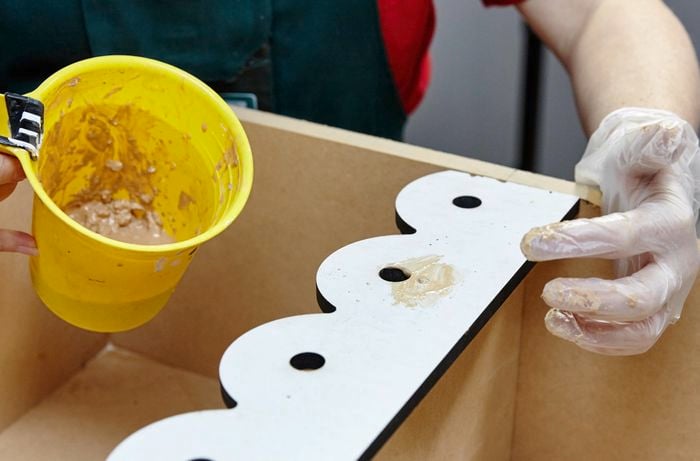

For a great finish, punch down the nails with a hammer and nail punch. Then putty up any holes. A handy tip is to put the putty in warm water to make it more malleable. Let the putty dry before sanding the unit with the orbital sander and 240 grit sandpaper. Wipe away any dust.

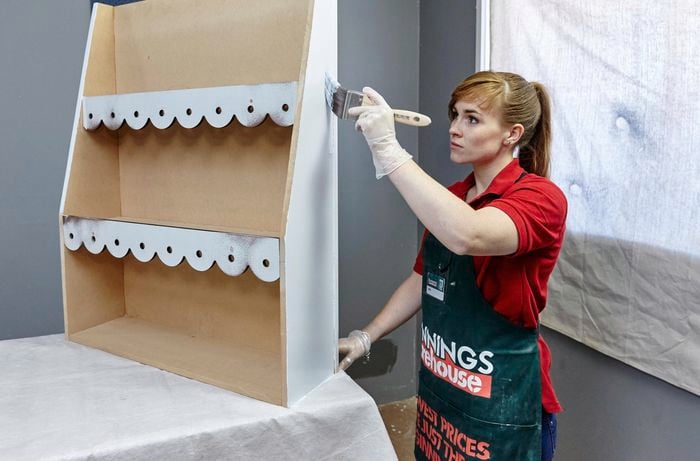

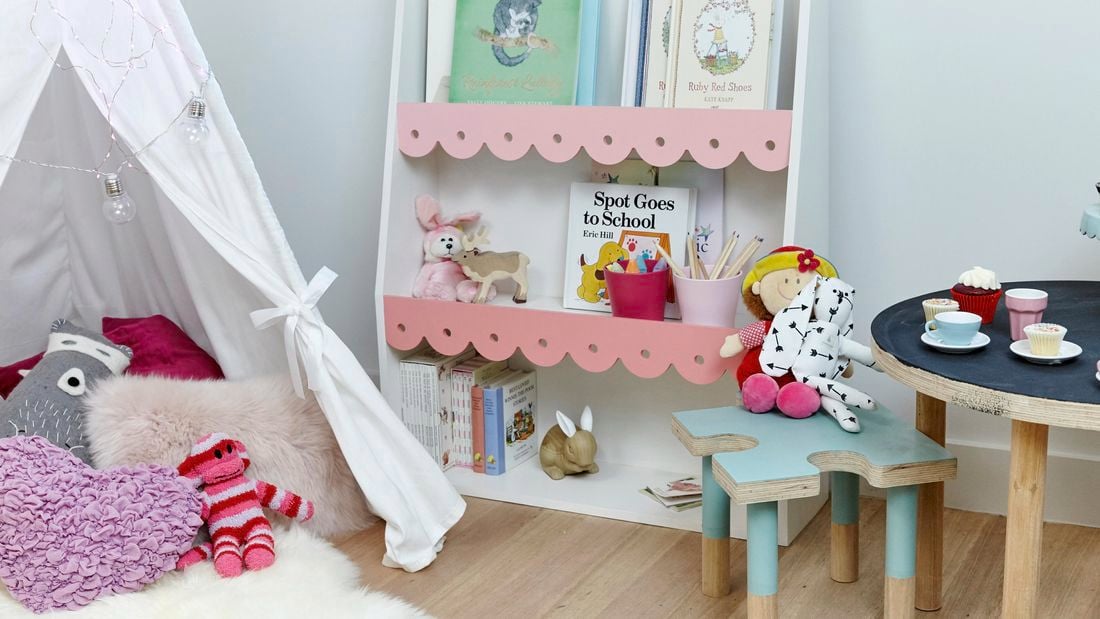

It's important to give the unit an undercoat to seal it. After it has dried, you can paint it any colour you like to suit your décor. We painted ours white and the trim on the shelves two different shades of pink. Apply as many coats of paint as needed. Leave the unit to dry between coats and give it a light sand with 240 grit sandpaper. To finish off, seal the unit with a clear varnish to protect the paint and make it easier to clean.
