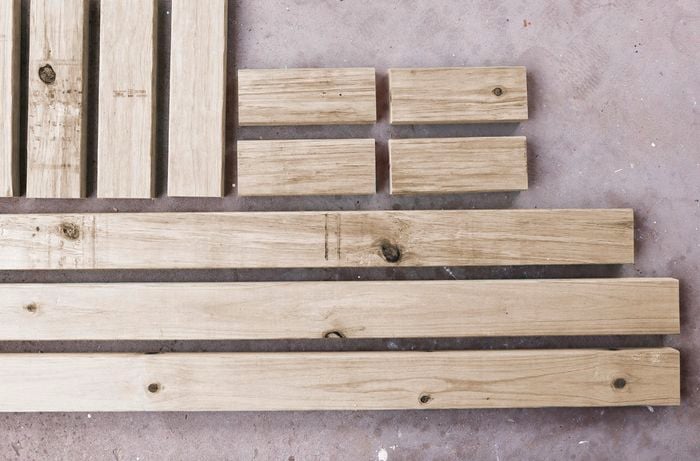

From the treated pine, use a mitre saw or handsaw to cut 2 side rails to 1185mm, a centre rail to 1115mm, 4 legs to 350mm and 4 cross rails to 230mm.

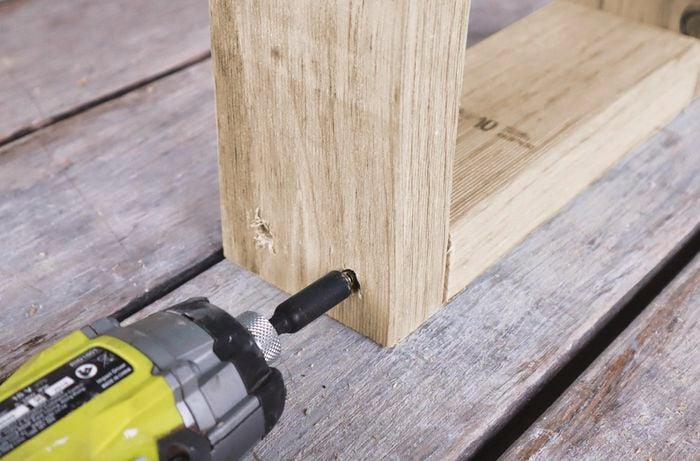

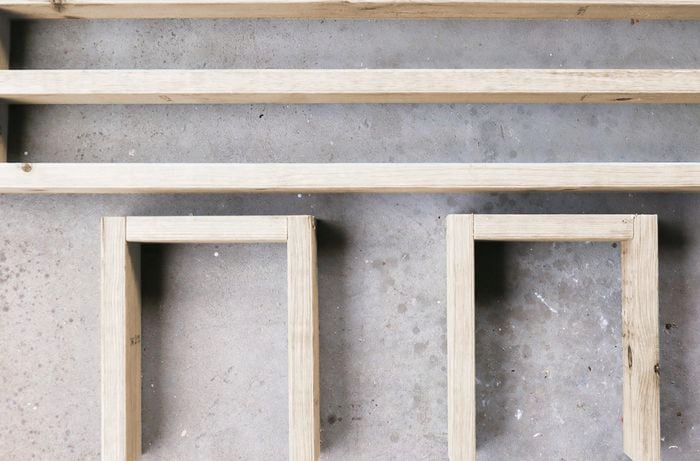

To make the frame base, position the legs flush against either end of a cross rail, countersink and secure with 2 60mm screws, checking the heads are below the surface.
To make the frame top, position the cross rails against the ends of the side rails. At each join, countersink and secure with two 60mm screws, then position the centre rail and secure through the cross rails.

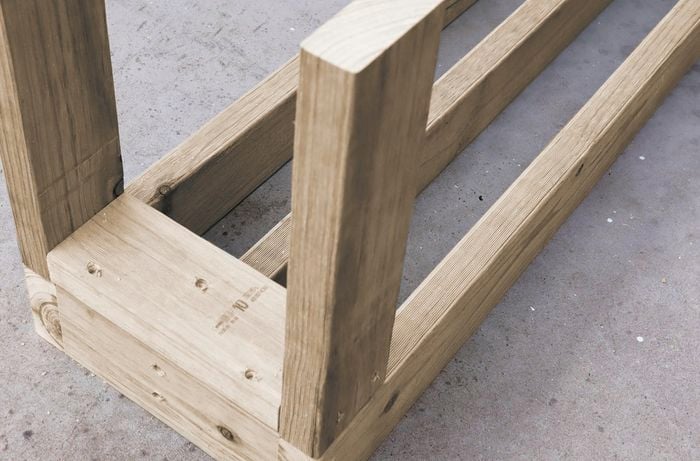

Position the bases flush on either end of the top, secure with 60mm screws into the cross rails and the centre rail. Sand over all the screws to remove any breakout. Apply treated timber sealer to the exposed cut ends of the legs and cross rails.
Working widthways on the FC sheet to make strips 1200mm long (see below), cut a 315mm-wide top panel and 2 90mm-wide side strips. Then cut 2 300mm-wide strips and cut them into 2 outside end panels, 440mm high, and 2 inside panels, 350mm high. Cut a 350mm-wide strip into 4 105mm-high leg panels.
Working with fibre-cement sheeting creates a lot of dust, so make the lowest number of cuts possible and reduce sanding by using factory edges for smooth sides. The dust particles can irritate skin, so always wear a mask, protective eyewear, gloves and long sleeves when working with it.
Lay the sheet on a flat surface and position the straight edge of a level along the cut line, clamping the level at either side.
Run a specialty fibre-cement knife lightly along the edge of the level to score the line.
Remove the clamps and level and run over the line repeatedly with the knife, making an even groove about 2mm deep.

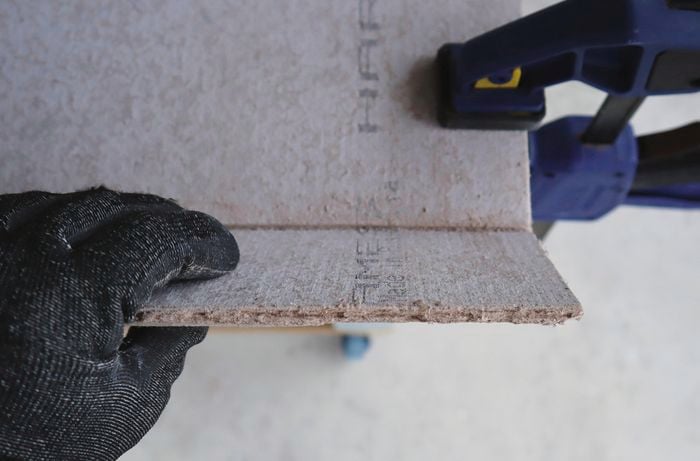

Position the sheet so the cut is over the edge of the work surface and clamp, then pull up to snap.
Hold the knife at an angle to run the curved shaving blade along the back to clean up any breakout.

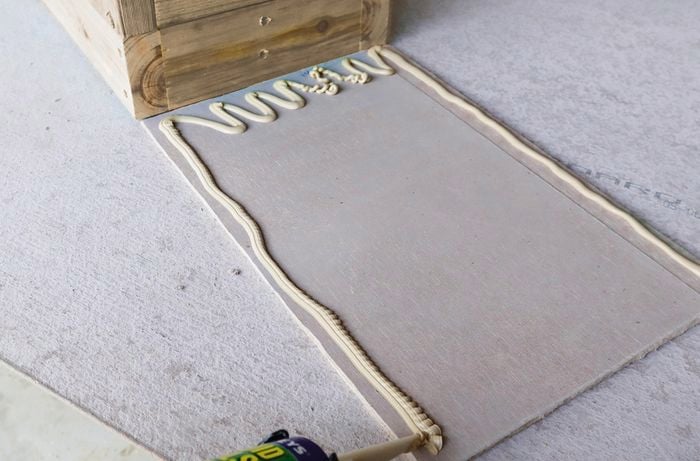

Apply construction adhesive to the outside and inside end panels, position and clamp them to the frame, then tap nails into the corners with a hammer. Position, clamp and nail the side strips, leg panels and the top.

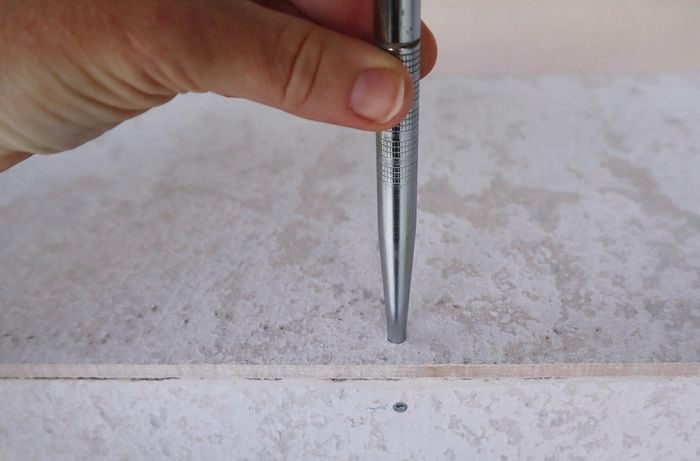

Tap nails under the surface with a nail punch and hammer. With a caulking gun, apply filler into the joins, running a wet finger over to remove excess. Dab filler into the nail heads, leaving to dry.

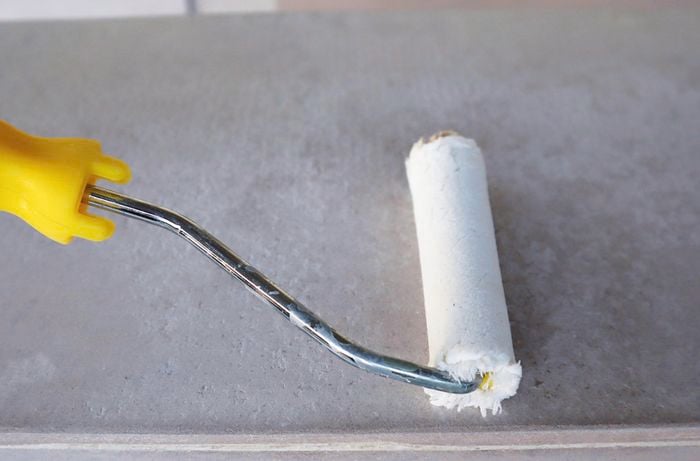

Sand over the filler, edges and corners, then wipe all over with a damp cloth to remove dust. Use a mini roller to apply three coats of sealer over the FC, following the manufacturer's instructions for dry times.

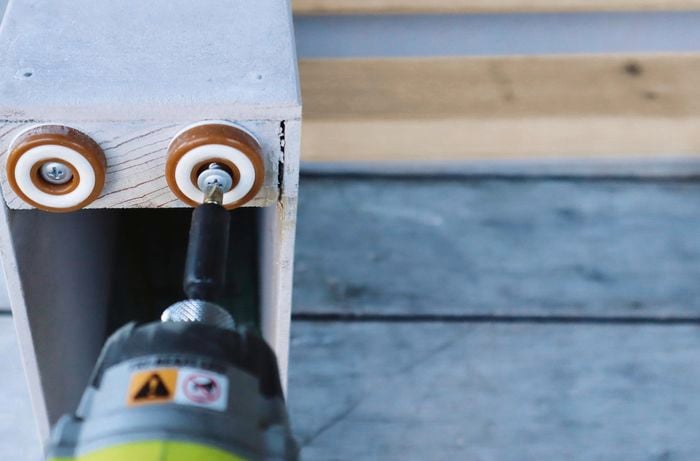

Add 2 feet to the base of each leg, replacing the supplied screws with 20mm galvanised button-head screws.
