Overview

Learn how to easily install an architrave around a window frame. We'll show you how to measure and cut the architraves, cut the mitre ends and how to attach the architraves to the window. Just follow our easy step-by-step guide.

Steps

1Measure the bottom architrave

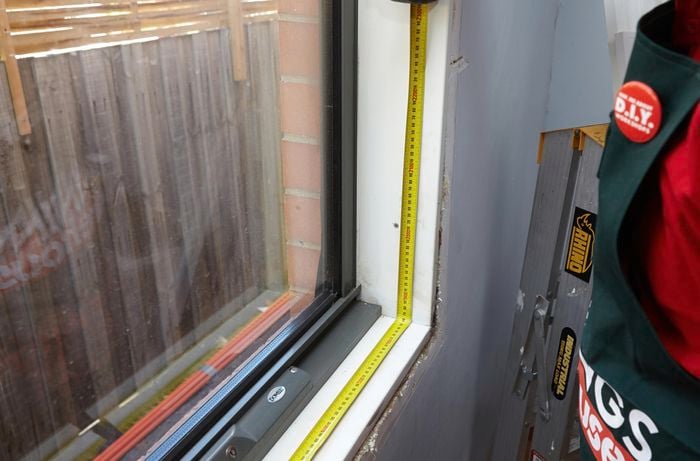

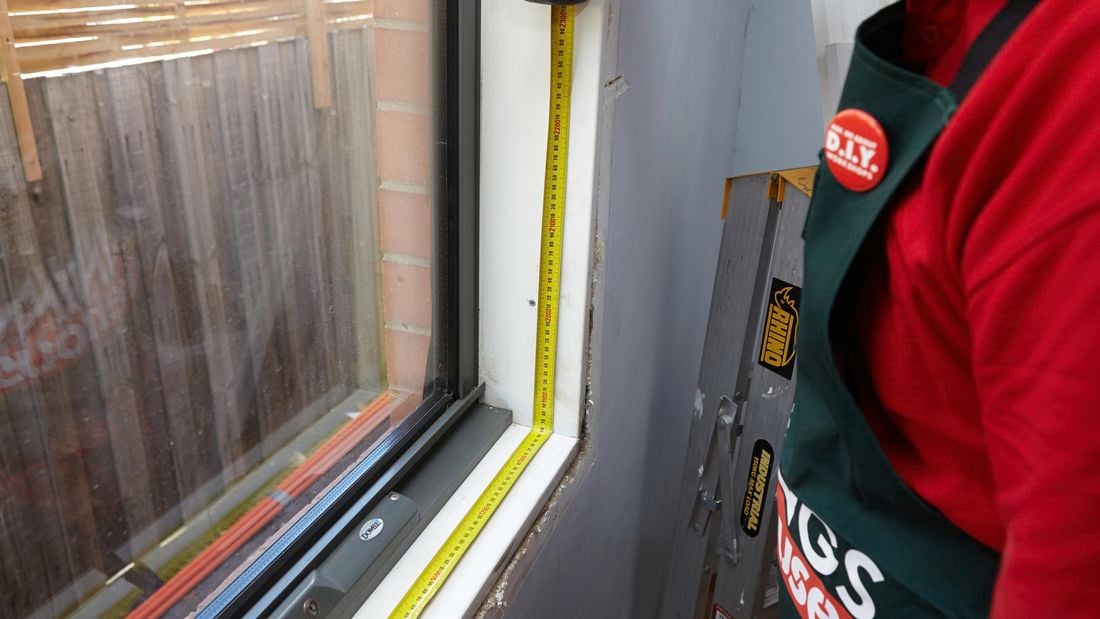

First thing you need to do is measure the inside of the window reveal and add 5mm. The reveal length is measured from inside mitre point to inside mitre point. Transfer these measurements to your architrave timber.

DIY Step Image - How to install architraves . Blob storage upload.

2Cut the architrave board

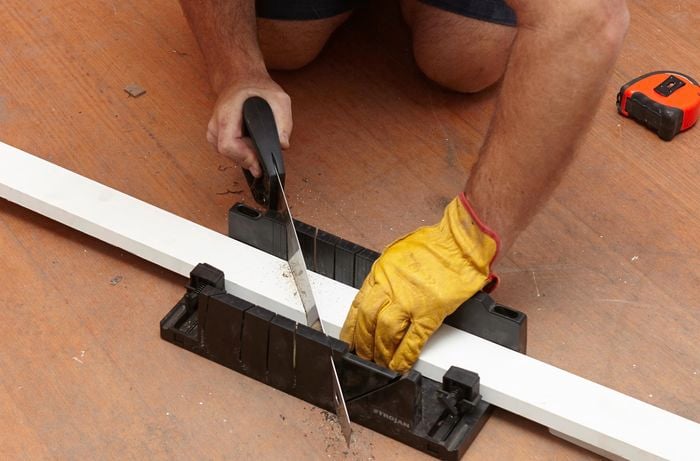

Use the mitre box to cut a 45 degree angle on the end of one of the architrave boards. Measure along and cut an opposite 45 degree mitre on the other end of the architrave.

DIY Step Image - How to install architraves . Blob storage upload.

3Attach the architrave to the window

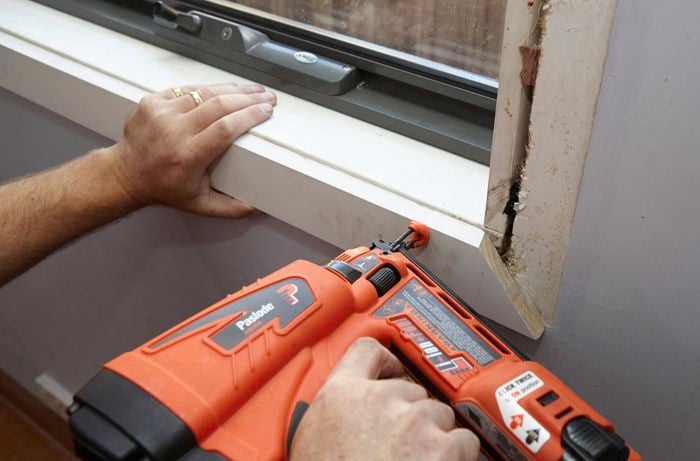

Place the bottom architrave on the wall. Place it 2.5mm down from the reveal. Check it is level.  Use a dummy piece at the corner with a 45 degree angle to help position the architrave. Then nail it into place.

Repeat the process for the top architrave to mirror the bottom. Nail that into place using a dummy plate to check the position.

DIY Step Image - How to install architraves . Blob storage upload.

4Measure the sides

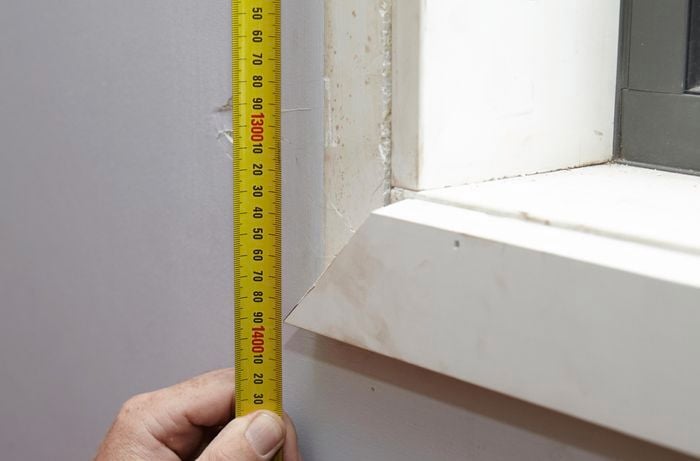

Measure the sides from long point to long point of the top and bottom architraves. It's important to measure both sides of the architraves because their lengths could vary.

DIY Step Image - How to install architraves . Blob storage upload.

5Cut the side architraves to length

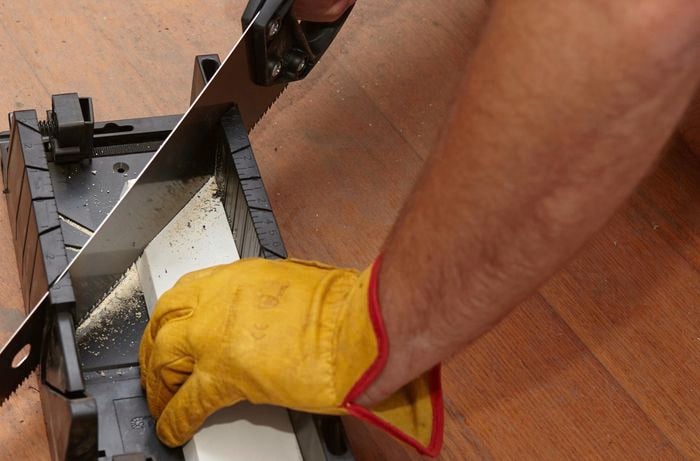

Transfer your measurements and cut the side architraves to length. Remember to cut 45 degree angles at each end.

DIY Step Image - How to install architraves . Blob storage upload.

6Attach the side architraves

Slot one architrave between the top and bottom architraves to make sure it fits. Take the side architrave and add some PVA glue to the corners. Then slot the architrave in again and nail it into place.

DIY Step Image - How to install architraves . Blob storage upload.
