Overview

Installing pop-up sprinklers is an easy project that will keep your garden looking healthy. We'll show you all the tools you need for the job, the important checks to make before you get started and how to measure, cut and join your poly pipe.

Steps

1Check before you start digging

Before you start digging a trench for the polypipe for the pop-up sprinklers, check with the authorities that there aren't any water, gas or electrical pipes or cables where you plan to dig. You can call 1100 or go to www.1100.com.au to find out if it is safe to dig in the area you want to.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

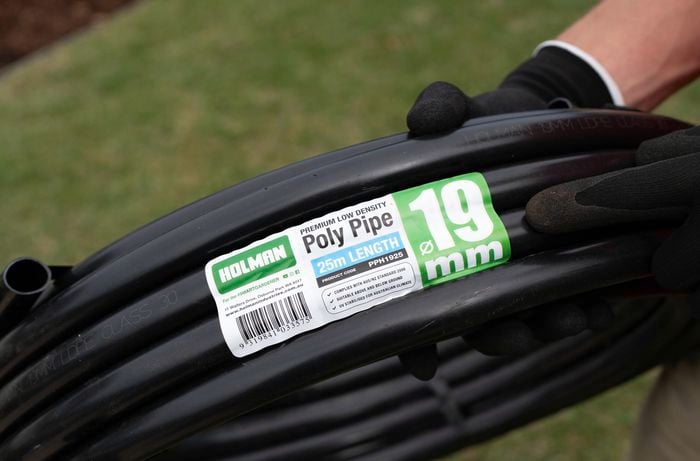

2Roll out the poly pipe

The easiest way to roll out the poly pipe is to lay it at the edge of the garden where the irrigation is being installed. Use an irrigation pin to stick one end of the poly pipe firmly into the ground, then unroll the pipe until you reach the corner. Cut the poly pipe to length and pin it into the ground. Repeat this process until you have laid out and cut all of the poly pipe you need.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

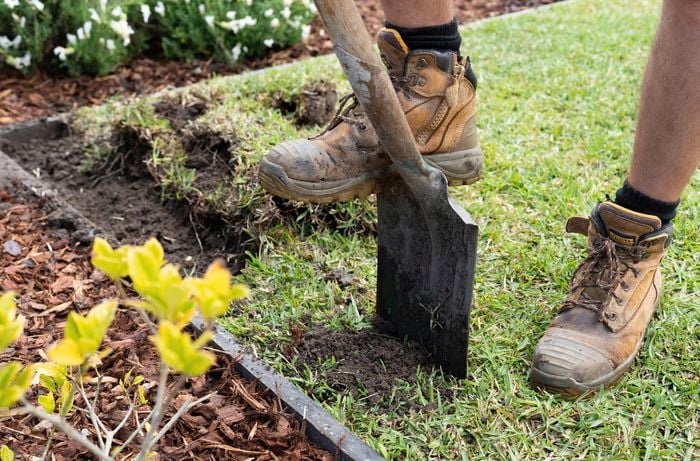

3Dig out the trench

Use your spade to dig a trench in the garden bed for the poly pipe and pop-up sprinklers. Make sure that the trench is deep enough for the top of the pop-up sprinkler to be level with the soil once the poly pipe has been covered back over with the soil.
DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

4Lay the poly pipe

After the trench has been dug, lay the corresponding sections of poly pipe into them. Secure the pipe into the ground with an irrigation pin, every one metre. Repeat this until all of the polypipe is secure in the trenches that you have dug.
DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

5Cut the pipe and fit the attachments

To make sure the poly pipe is cut to the right length, lay one pipe over the other and cut them with pipe cutters where they meet. Slide a locking clamp over the end of each piece of poly pipe. To make fitting the elbow into the poly pipe easier, dip the pipe end in hot water to soften it. Once soft enough insert the elbow into both ends of the poly pipe to join them together. Slide the locking clamps into place and tighten them with the pliers. Repeat this process until all of the pipe is connected.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

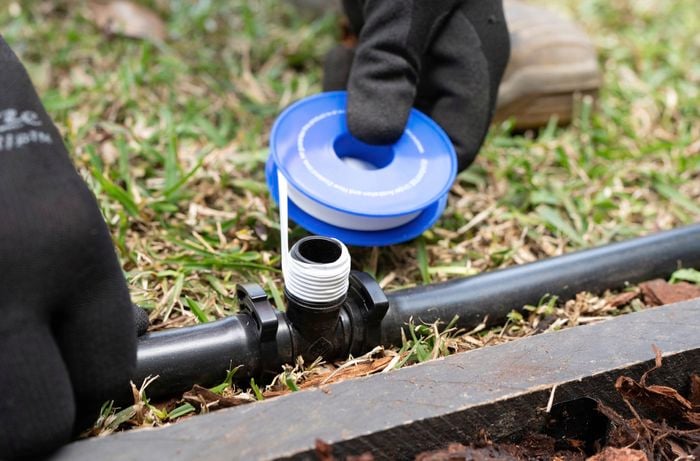

6Attach the pop-up sprinklers

Wrap Teflon tape around the elbow where the pop-up sprinkler will be attached. This will make sure the seal between the two is tight. Screw the pop-up sprinkler into place, making sure it is as far down on the elbow as possible. Repeat this step for all of the pop-up sprinklers.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

7Seal the end of the pipe

To seal the poly pipe at the end of the sprinkler, cut a short piece of polypipe and attach it to the elbow and hold it in place with a locking clamp. Attach an end piece to the end of this piece of pipe. This will give you the flexibility to add-on more poly pipe and pop-up sprinklers to your garden in the future.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

8Cover the pipes and pop-ups

Before you cover the pipes with soil, check that there are irrigation pins at regular intervals, about every metre, to hold it securely in place. Use your spade to cover the polypipe with soil and cover the sprinklers so that the top of them is at soil level.

DIY Step Image - How to install pop-up sprinklers . Blob storage upload.

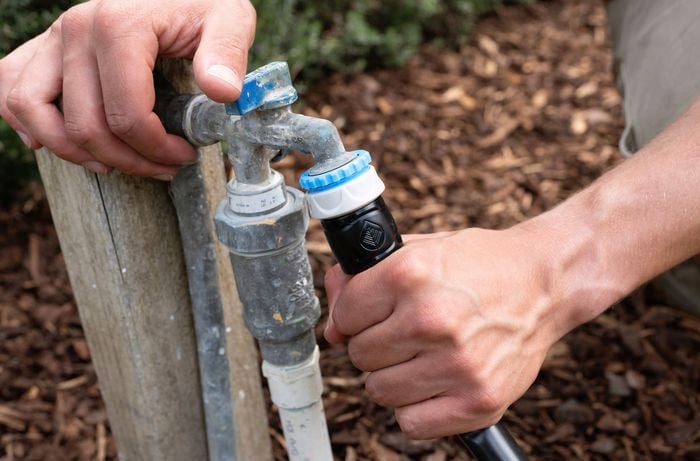

9Connect the poly pipe to the tap

You can connect the poly pipe to the tap with a click-on irrigation tap fitting. Make sure it is securely connected so water doesn't leak. Then turn the tap on to make sure the sprinklers are spraying in the right direction. If the sprinklers need adjusting, pull up the centre of the pop-up and adjust the top ring so it sprays water where you need it.
DIY Step Image - How to install pop-up sprinklers . Blob storage upload.
