How to build an outdoor storage bench seat

A decorated outdoor storage bench with two cushions and a fruit plater.

Overview

A bench seat is incredibly versatile. It can act as outdoor seating, and it can also double as additional storage, the perfect place to tuck away things like outdoor cushions, toys, sports or gardening equipment, or shoes and boots.

We’re sharing step-by-step instructions on how to make your own outdoor storage bench seat.

Safety tip: Always wear the appropriate safety equipment (safety glasses, ear muffs, gloves and mask, for example) and always follow the instructions for the product or equipment.

Steps

  1. 1

    Set out your bench seat

    First, work out the dimensions for your bench seat. Examine your outdoor space and decide where you want the seat to be – along the wall close to the front door? Next to the barbecue? Somewhere it can form extra seating for an outdoor dining table?

    From there you can measure out the exact dimensions that will work in the space.

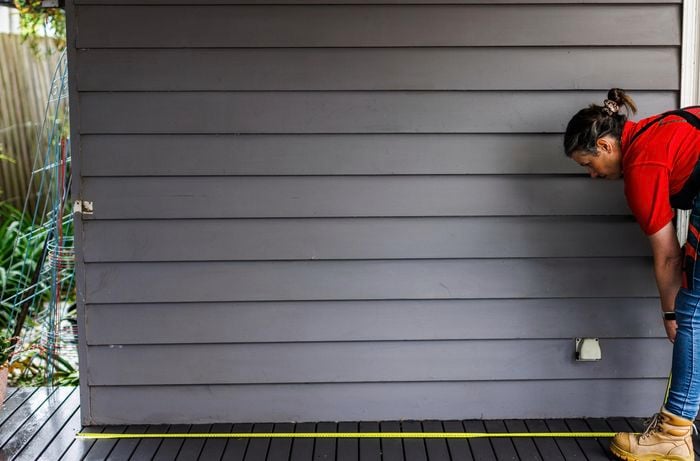

    A person measures the dimensions in a patio.
  2. 2

    Build the frame

    Once the dimensions are decided and you’ve measured up, build the frame to the height you want, making an allowance for the seat and any cushions you plan to add.

    To build the frame, start by cutting your studs to size. The studs are the vertical pieces, so make sure that you deduct the thickness of the (horizontal) wall plates.

    Green Bunnings hammer
    Tip: Measure the height of other seats in your home to keep it consistent.

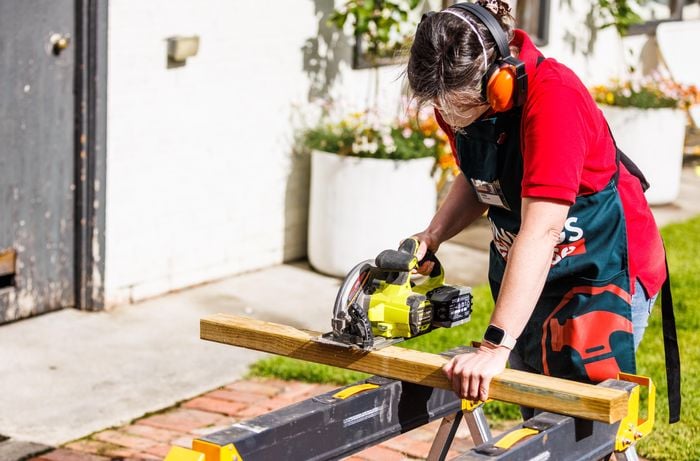

    A person cutting studs wearing safety equipment.
  3. 3

    Secure the studs and wall plates together

    Nail the studs and wall plates together with a nail gun. This will keep the frame loosely together while you make final adjustments. Next, grab a builder’s square to check that the corners are all square; once you’re happy, screw the frame securely together.

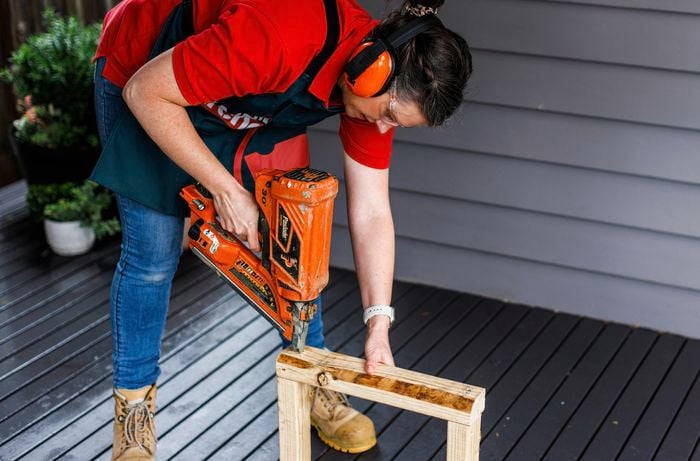

    A person nailing the studs.
  4. 4

    Add lining

    Screw a sheet of marine ply to the bottom of the frame to keep it all together and stop rain, dust, and unwelcome critters from getting inside. Line the insides with marine ply, as well, including the top of the frame.

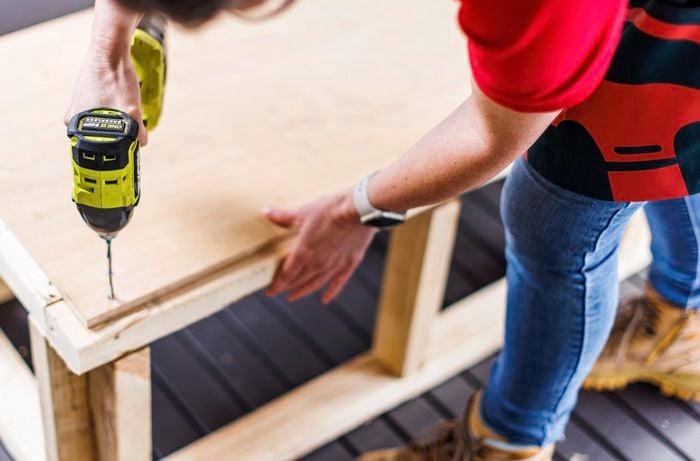

    A person drilling a sheet of marine ply to the bottom of the frame.
  5. 5

    Measure and cut the cladding to size

    Next, measure the cladding and cut it to size.

    A person measuring the height of the box.
  6. 6

    Secure the cladding

    Secure the cladding. Pre-drill the cladding using a countersink drill bit and fasten it on with an outdoor-rated 50mm screw. You will also need to apply a 3mm bead of sealant adhesive where the cladding joins to seal it up.

  7. 7

    Cover the inside edges

    Cover up the inside edges with ply. Start by measuring the ply to fit the edges of the bench seat and then cut it to size. You can then attach the ply, making sure that it all lines up before screwing it in.

    A person securing the ply with screws.
  8. 8

    Install the aluminium angle

    For a neat finish, glue and screw pieces of aluminium angle onto the exposed edges of the cladding. First, measure the length of each side and cut the aluminium using a hand saw. Then apply some high tack adhesive to the angle, set it into place and secure it with a screw on the top and bottom.

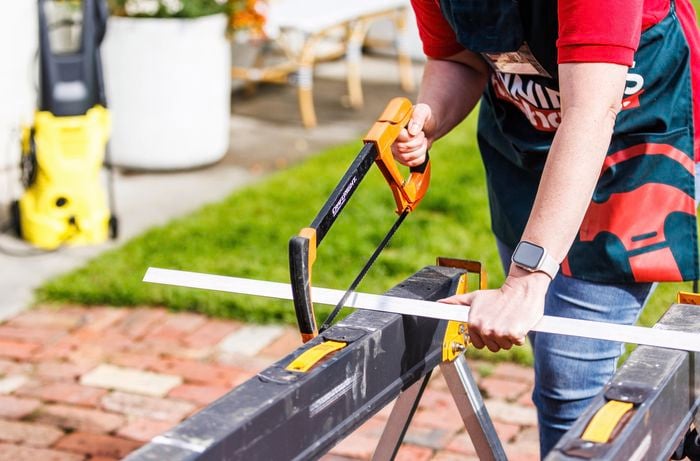

    A person cutting an aluminium using a hand saw.
  9. 9

    Measure and cut the lid to size

    Once the trim has been attached, you can start building and attaching the lid or seat. Measure the size of your lid and then cut it. Be sure to leave approximately 20mm overhang for the front so that you can easily open the lid.

    A person cutting the lid to size.
  10. 10

    Fill and paint the bench seat

    Fill the holes using a builder’s bog. Once this has dried, sand it down so that it is smooth. Now you can paint the seat base in whatever colour you like!

    Green Bunnings hammer
    Tip: Remember to use an exterior paint to help protect the seat from the elements.

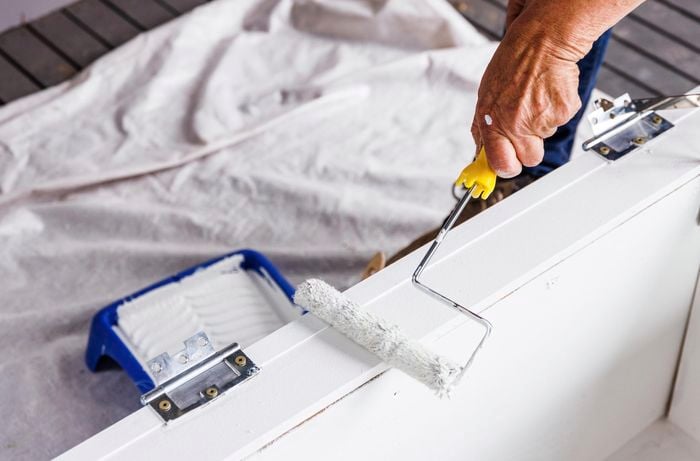

    A person painting the bench seat.
  11. 11

    Secure the lid to the seat base

    Attach the lid to the seat base. Measure the distance between each of the hinges to make sure they are spaced evenly. Mark the spots with a pencil where you want them, and then pre-drill so that you don’t split the wood. Drill the hinges into place and attach the lid.

    Green Bunnings hammer
    Tip: Use heavy-duty screws to keep your lid securely in place.

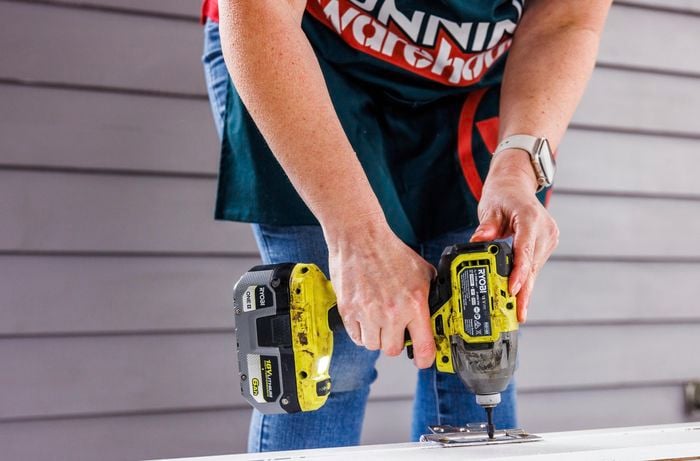

    A person drilling the hinges.
  12. 12

    Install the stays

    Installing the stays is the last step. Drill the stays on the inside of the lid and the box. You can adjust these based on to how far you’d like the lid of the seat to open.

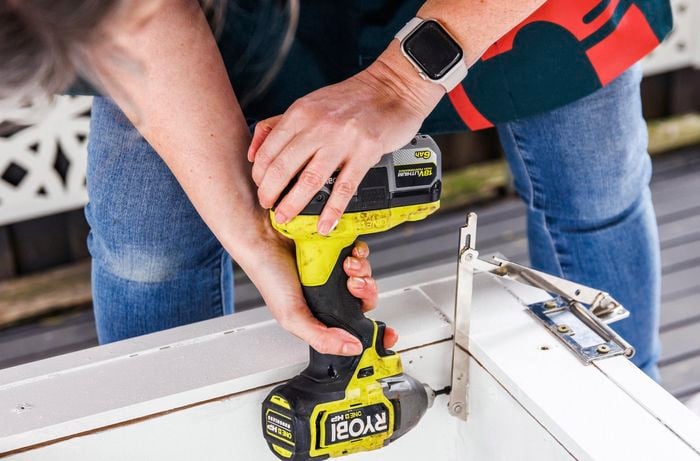

    A person drilling the stays on the inside of the lid and the box.
