- Off last mode - For added convenience the 2 lines appear in previous state prior to unit being turned off
- Accuracy of ±3mm @ 10m - Professional accuracy provided to the end user ensures being precise on the jobsite
- Pendulum lock to help prevent damage to internal components

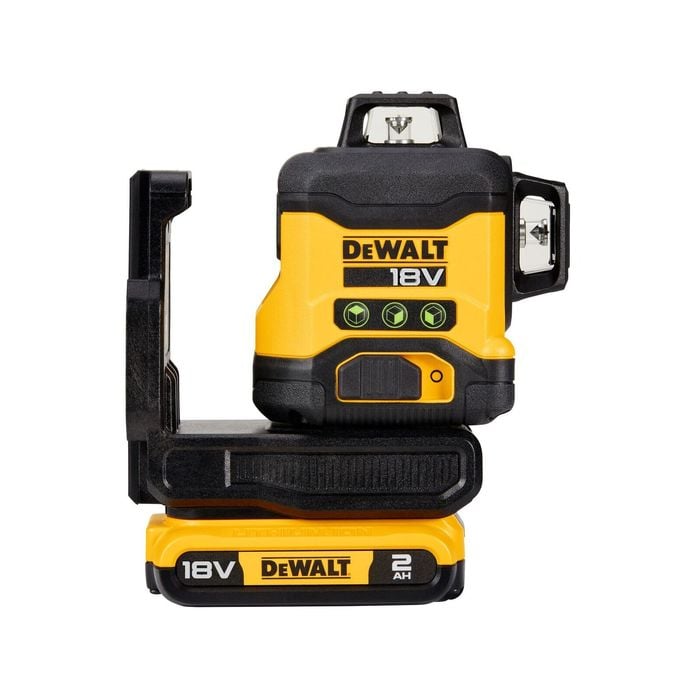

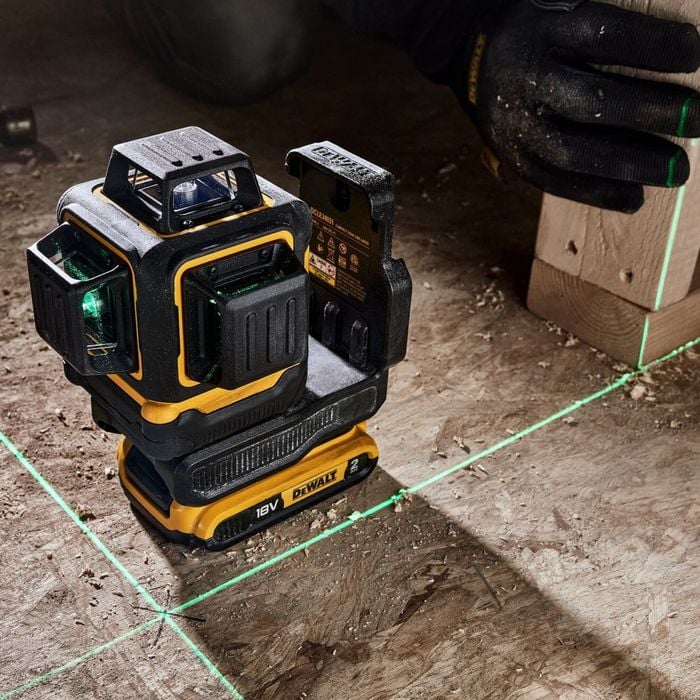

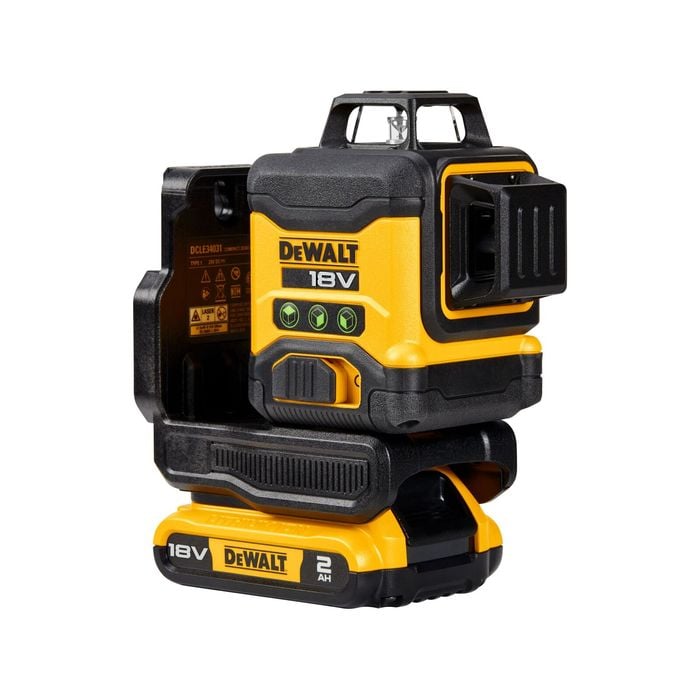

- The self levelling multiline laser projects 3 bright 360° horizontal and vertical lines (independently or as a cross), up to 40m (100m w/ detector)

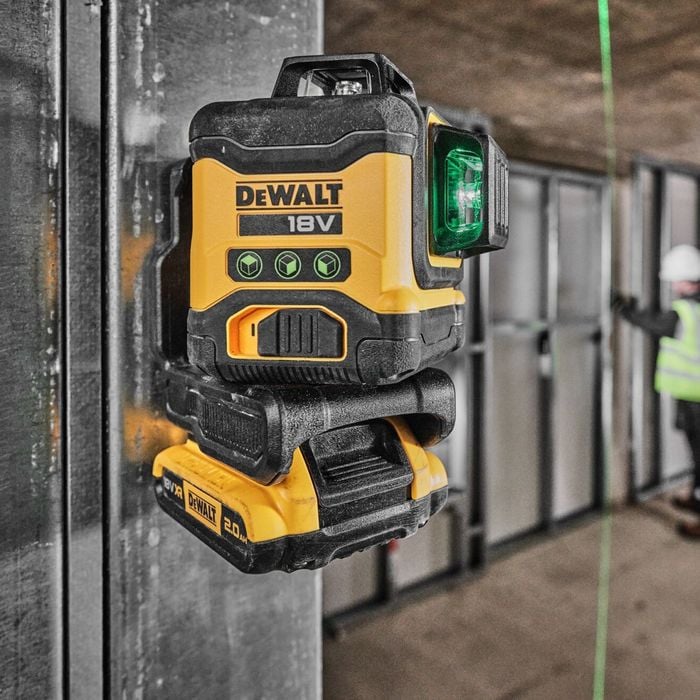

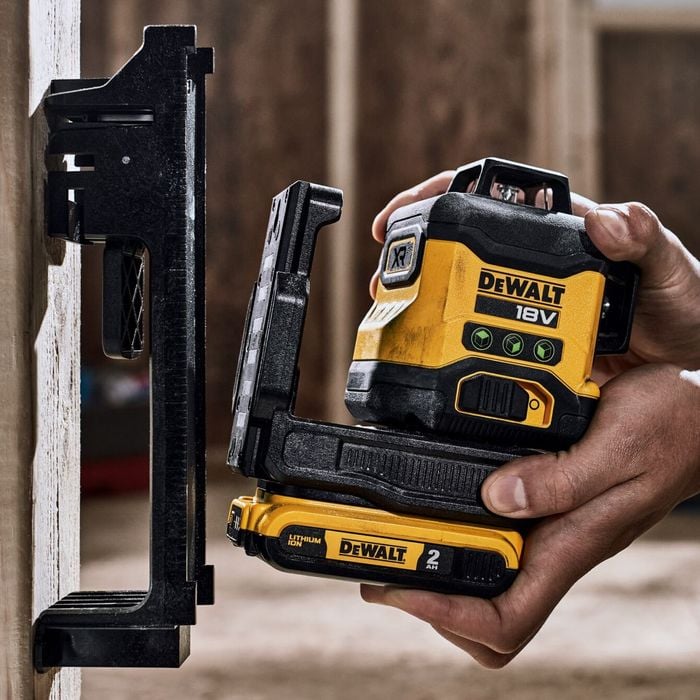

- Pivotable bracket with magnets for safe sticking to metal studs
The DCLE34031D1 includes best-in-class green beam diode technology, which ensures optimum visibility on the job site - even in the most challenging of environments.
The Multiline Laser's compact size and outstanding working range makes it suitable for a variety of first-fix and drywall construction applications, including the suspension of ceilings, positioning of partition walls and transferring layouts from floor to ceiling.
Specifications:
Voltage: 18V
Beam color: Green
Line diagram: 1 Horizontal, 1 Vertical
Laser diode: Class 2, 510-530nm
Working range:
Alone: 40m
With detector: 100m
Pulse mode: Yes, permanent
Accuracy line: ±3mm @ 10m
Compensation range: ±4°
Levelling time: ≤5s
IP Rating: IP54
Drop test: 1m
Mounting thread: 1/4" & 5/8" (integrated in bracket)

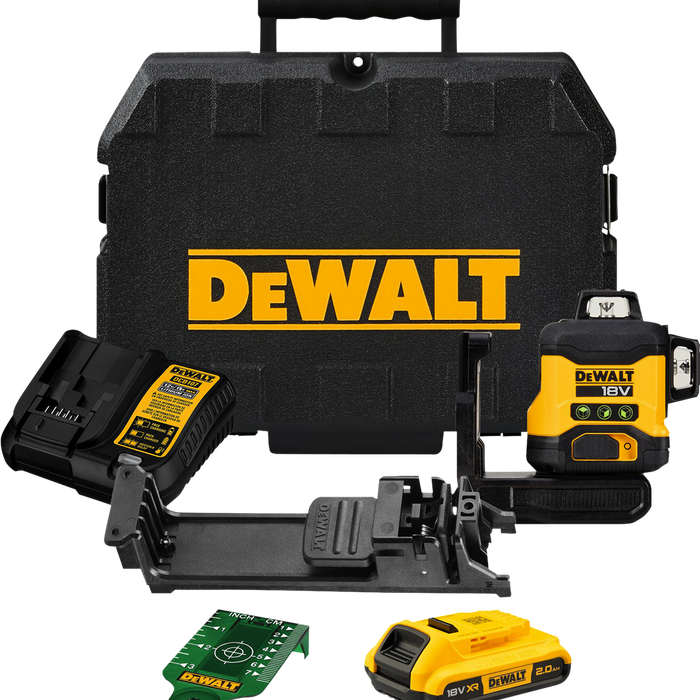

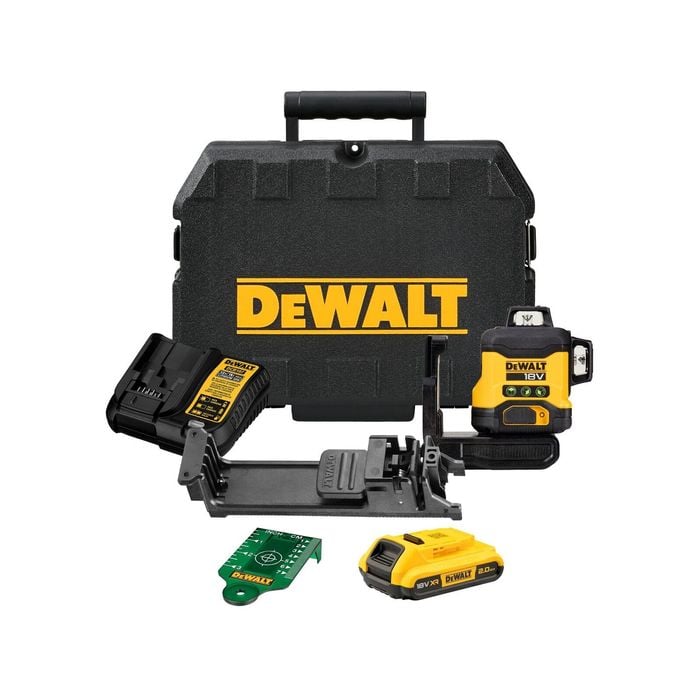

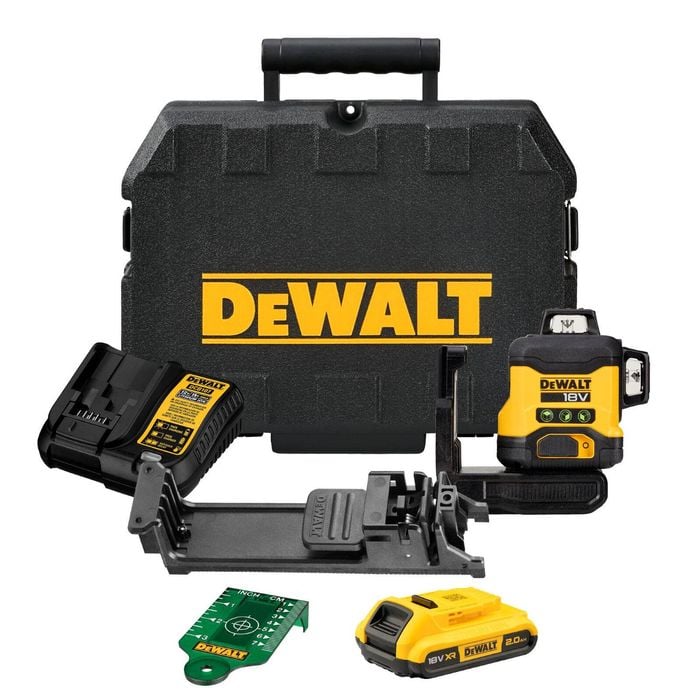

Kit Includes:
18V 2.0AH XR Li-Ion Cordless Slide Battery, Multi Voltage Charger, Mounting Bracket, Green Target Card and Blowmould Case.
