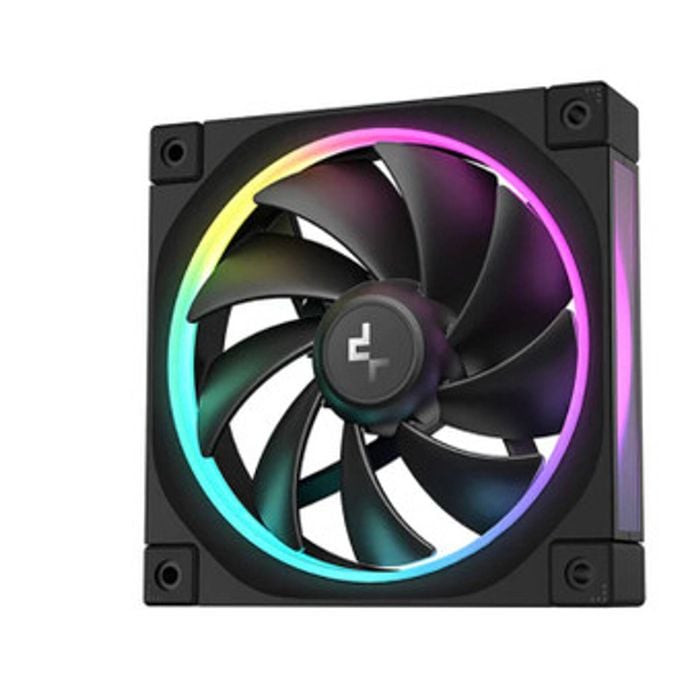

FL12The FL12 was designed and perfected by the DeepCool team to provide a unique light effect fan with high performance, low noise, and outstanding quality.
Technical Spec
Fan Dimensions 120×120×25 mm(L×W×H)
Net Weight 166 g
Fan Speed 500~2150 RPM±10%
Fan Airflow 55 CFM
Fan Air Pressure 2.82 mmAq
Fan Noise ≤32 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.75 W
