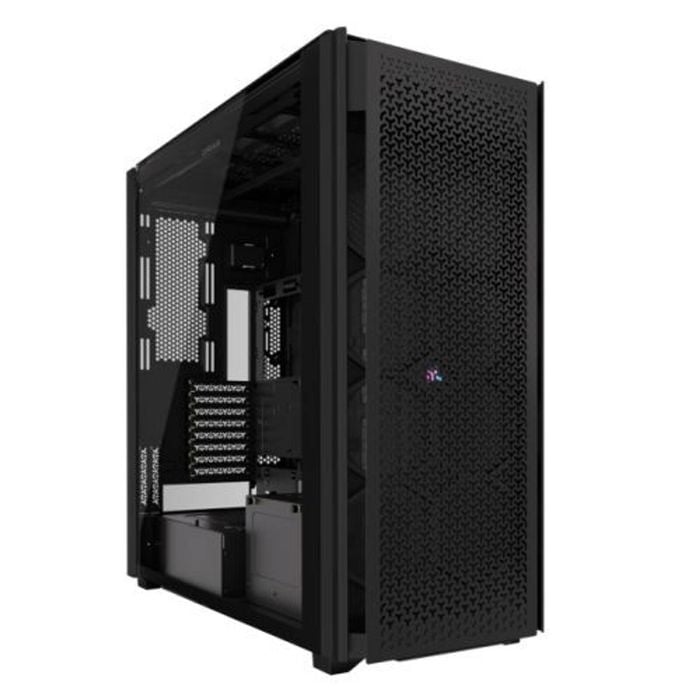

Corsair icue link 9000d rgb airflow super-tower pc case black
the corsair icue link 9000d rgb airflow super-tower case delivers massive space, superior cooling capacity, and design innovations to support the build of your dreams.
corsair 9000d at a glance
- massive form-factor for your most ambitious build
- fits up to 18x 120mm, 7x 140mm, or 4x 200mm fans and multiple radiators up to 480mm
- corsair infinirailâ„¢ fan mounting system
- start your icue link build with an included icue link system hub
- removable high-airflow steel front panel
- fits up to 6x ssds and 5x hdds in a removable hard drive cage
corsair 9000d specification
dimensions (mm) 698 x 307 x 698 mm
material steel, tempered glass
cooling layout front: 8x 120mm / 3x 140mm / 2x 200mm
top: 8x 120mm / 3x 140mm / 2x 200mm
side: 3x 120mm
bottom: none
rear: 2x 120mm / 1x 140mm
radiator compatibility front: 480mm / 420mm / 360mm / 280mm / 240mm / 140mm / 120mm
side: 360mm / 240mm
bottom: none
rear: 240mm, 140mm, 120mm
expansion slots (main) 8 horizontal (or 4 vertical) + 2 vertical (for itx motherboard)
motherboard (main) mini-itx | microatx | atx | e-atx | ssi-eeb
storage 6x 2.5' ssds / 5x 3.5' hdds
clearances
psu: 225mm
cpu cooler: 180mm
gpu: 400mm
dust filters front, top, side, psu
front i/o
usb 3.2 gen1 type-a (x4)
usb 3.2 gen2 type-c (x2)
headphone/microphone (x1)
power
reset
power supply atx (not included)
warranty 2 years
