- Single motor for lf and hf functions
- Titanium diaphragm for clear sound reproduction
- 15' celestion coaxial speaker included
Ferrite magnet assembly acts as common motor for both LF and HF.
Titanium HF diaphragm.
Features:
• Size approx.: 381mm
• Power rating 400Wrms
• Continuous power rating 800W
• Nominal impedance 8O
• Sensitivity 97dB
• Frequency range 40-4,000Hz
• Voice coil diameter 75mm/3in
• Chassis type Cast Aluminium
• Magnet type Ferrite
• Magnet weight 2.3kg/81oz
• Coil material Edgewound copper clad aluminium
• Former material Glass fibre
• Cone material Kevlar loaded paper
• Surround material Cloth-sealed
• Suspension Single
• Gap depth8mm/0.31in
• Voice coil winding width16mm/0.63in
Includes:

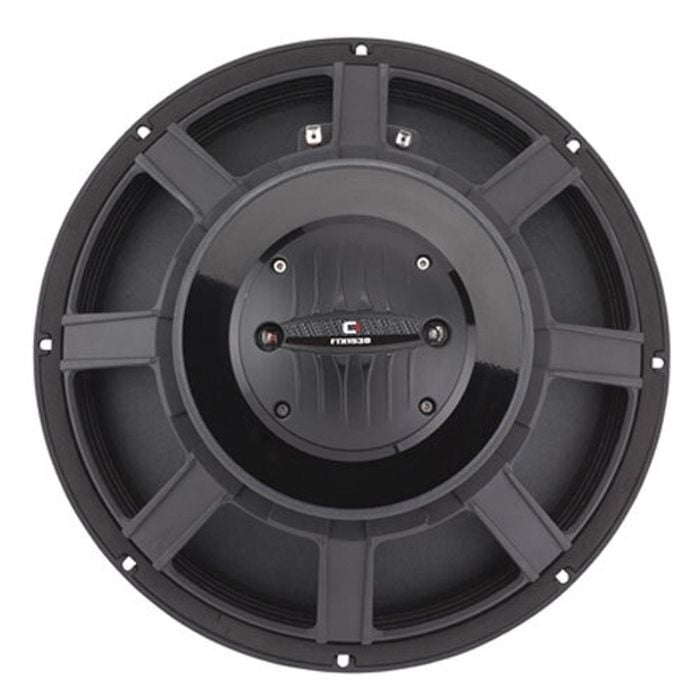

• 1x Celestion 15" 400W Coaxial Speaker 8 Ohm
