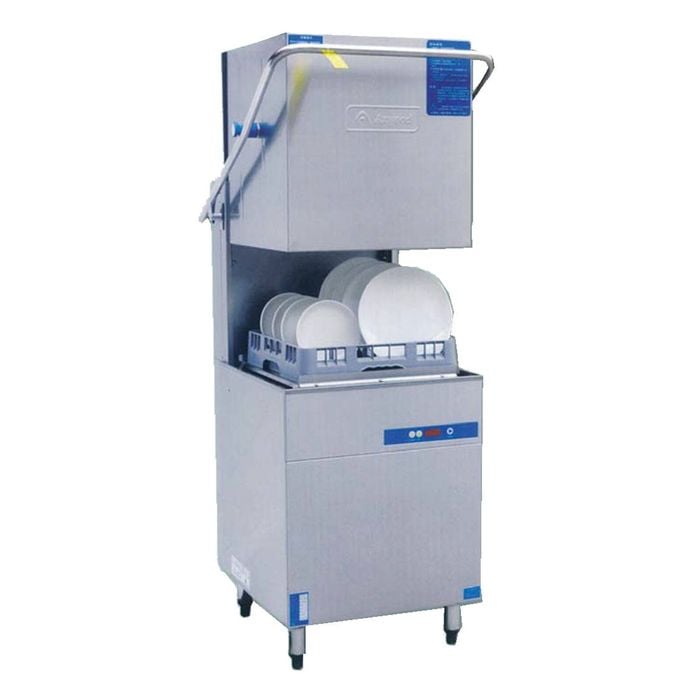

Axwood Passthrough Dishwasher 3 phase - PTD-601D

Axwood Pass-Through Dishwasher - Hood Type Dishwasher - PTD-601D Easy to use: Easy installationd service User- friendly one-touch system High Performance: Powerful wash pump delivers higher volumes of wash water and ensures faster clean up times. Low running costs: Hi-tech computer controller ensures low water, low energy, and less detergent consumption. Quality: Full stainless steel structure with stainless steel wash & rinse arms. Incoming water temperature 10-60°C Rated currently of air circuit breaker 40A Record the number of washing 9999 60 racks per hour Drain outlet 42mm WaterMark approved Specifications Net Weight: 104kg Dimensions (WxDxH): 710 x 790 x 1430 ± 20 mm Door Entry: 400mm Basket Size: 500 x 500mm Electrical Supply (V/Hz/ph): N?415V AC / 50Hz / 3ph Cycle Length(3wash cycles): 60 / 90 / 120 sec Wash Pump, Tank and Element Wash Pump: 3-ph:400 L/min, 0.6 Kw Wash Tank Capacity: 27 Litres Wash Tank Heater :3.0 Kw Wash temperature: 60°C to 65°C Rinse Pump, Tank and Element Rinse Pump: 0.35 Kw Rinse Tank Capacity: 11 Litres Rinse Tank Heater: 9Kw Rinse Temperature: 82°C minimum Water Consumption: 2.9 Litres per cycle Electrical and Water Connections: Electrical Input: 415V / 50Hz / 3ph, 15.71Kw Water Input: 15 °Cminimum @ 100-400kPa Hot Water Inlet: 3/4? B.S.P. fitting Drain Outlet:11/2? B.S.P. gravity fed Certified Product 1 Year Parts and Labour Warranty
