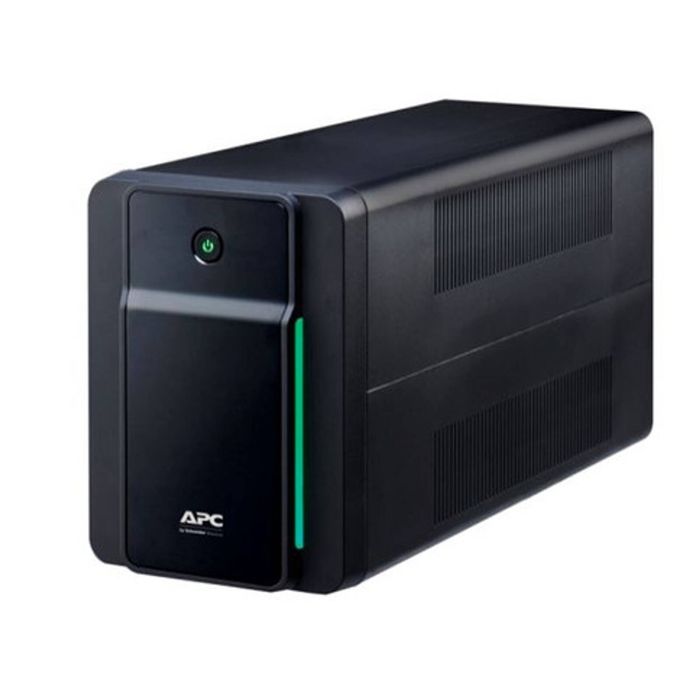

- Compact tower design
- High-capacity 1200va ups
- 4 aus outlets for equipment
- 0 dba
Output ?? Output power capacity: 700 Watts / 1.4 kVA ?? Max Configurable Power (Watts): 700 Watts / 1.4 kVA ?? Nominal Output Voltage: 230V ?? Output Frequency (sync to mains): 50/60 Hz +/-1 Hz ?? Output Frequency (not synced): 50/60 Hz +/-1 Hz ?? Topology: Line Interactive ?? Waveform type: Stepped approximation to a sinewave ?? Output Connections: (6) Australian (Battery Backup) ?? Transfer Time:8ms typical: 10 ms maximum Input ?? Nominal Input Voltage: 230V ?? Input frequency:50/60 Hz +/- 3 Hz (auto sensing) ?? Input Connections: Australian/Chinese ?? Cord Length:1.22 meters ?? Input voltage range for main operations:150 - 280 V ?? Number of Power Cords: 1 ?? Maximum Input Current:6.0 A ?? Input Power Factor at Full Load:0.5 Batteries & Runtime ?? Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof ?? Typical recharge time: 8 hour(s) ?? Battery Volt-Amp-Hour Capacity: 165 ?? Runtime: View Runtime Graph ?? Efficiency: View Efficiency Graph Communications & Management ?? Interface Port(s): USB ?? Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators ?? Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm Surge Protection and Filtering ?? Surge energy rating:273 Joules ?? Data Line Protection: RJ-11 Modem/Fax protection Physical ?? Maximum Height: 215, 21.5 cm ?? Maximum Width: 130, 13.0 cm ?? Maximum Depth:336, 33.6 cm ?? Net Weight: 12.0 kg ?? Shipping weight: 12.94 kg ?? Shipping Height: 295, 29.5 cm ?? Shipping Width: 245, 24.5 cm ?? Shipping Depth: 440, 44.0 cm ?? Color: Black ?? Operating Environment: 0 - 40 ??????C ?? Operating Relative Humidity: 0 - 95% no % ?? Operating Elevation: 0-3000 meters ?? Storage Temperature: -15 - 40 ??????C ?? Storage Relative Humidity: 0 - 95 % ?? Storage Elevation: 0-9000 meters ?? Audible noise at 1 meter from surface of unit: 45.0 dBA Conformance ?? Approvals: RCM, T
