Antsig Medium Metro Digital Outdoor Antenna

4.4 (17)

I/N: 4360384

4.4 (17)

I/N: 4360384

Select your preferred purchase method

Features

  • Suitable for DAB+ digital radio
  • Suitable for all HD, Full HD and 3D TV and more
  • UV stabilised plastics
  • UHF operating frequency range:518-603MHz
  • VHF operating frequency range:170-230MHz

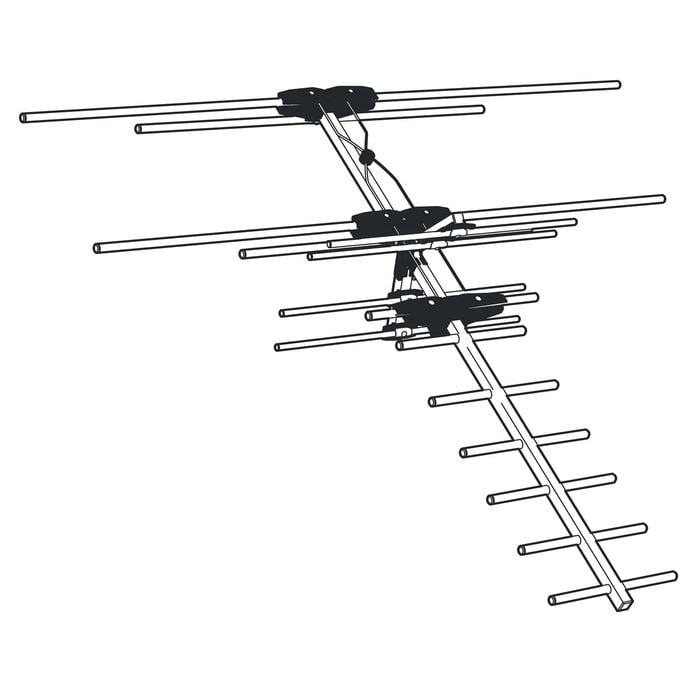

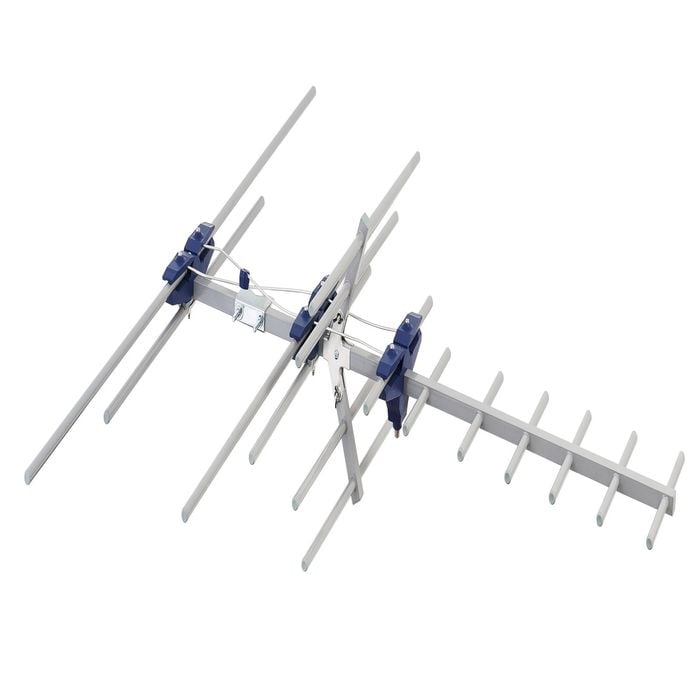

This combination antenna has been designed for digital TV in Medium metro reception areas. It is easy to assemble, with simple "fold out" elements. The use of larger diameter elements, with a shorter length, coupled with a new stronger support bracket system, means this antenna has been designed to endure the harsh conditions it must endure here in Australia.

This antenna gives approximately 7-8dB of signal gain, with >0.8dB in gain variation over the operating frequency range.

It offers a beam width of 64° for VHF and 36° for UHF, with a min return loss of -8dB for VHF and -10dB for UHF.

This particular antenna, is also suitable in Prime areas, for those who want a little more ruggedness from their antenna.

Details

Dimensions



Width

Height

Length

Product

1195mm270mm1010.5mm

Package

240mm1330mm105mm

Weight

Easy To Carry

Total Weight 1.2kg

Specifications

Colour
Grey and Blue
Model Name
Antsig Medium Digital Outdoor Antenna - Metro
Model Number
AA1200
Material
Aluminium Alloy
Pole Mount
Yes
Cross Polarised
No
Prima
Yes
Regional
No
FM
No
Combo
Yes
Fringe
No
Indoor Use (Yes/No)
No
Digital (Yes/No)
Yes
Medium
Yes
Reception Amplified
No
Outdoor Use (Yes/No)
Yes
Active Amplified
No
High Definition Compatible
Yes
UHF
Yes
VHF
Yes
Caravan
Yes
VHF/UFH (Yes/No)
Yes
Metro
Yes
Antenna Gain (dB)
8
