- Overload protection (10ms response)
- Short circuit protection
- Overvoltage protection (14.4v)
undervoltage protection (10.5v)
- Reverse polarity protection
- Temperature protection
float mode to prevent overcharging

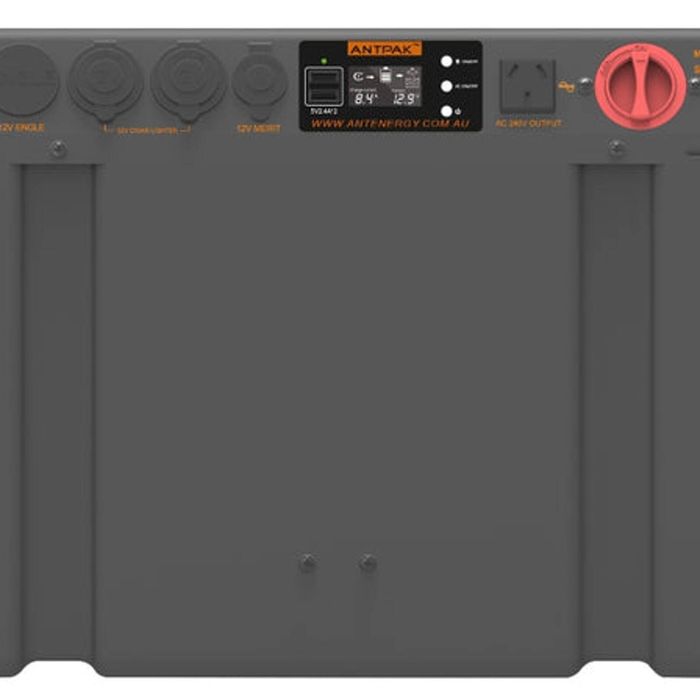

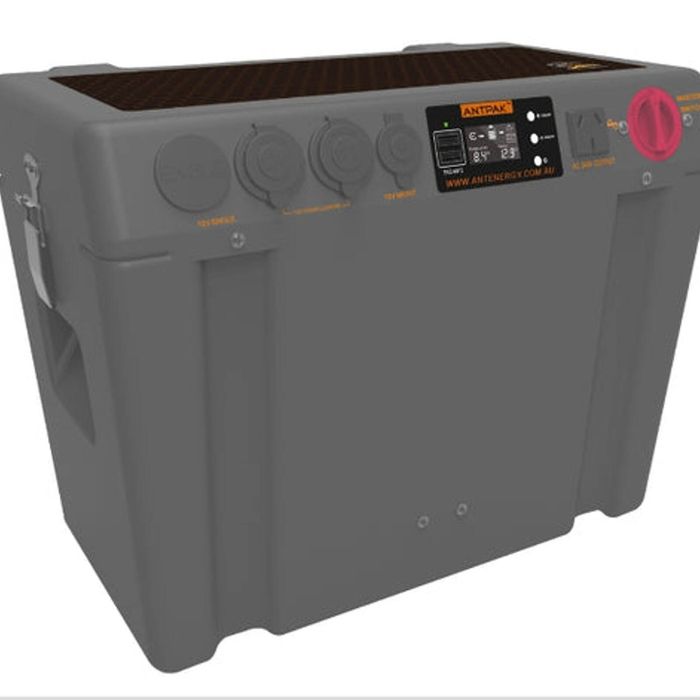

The ANTPAK BP-800 Battery Box is a portable 12V power system with a built-in 800W pure sine wave inverter, and built in solar in MPPT regulator. It accommodates batteries from 60Ah to 130Ah (AGM, Gel, Calcium, Lead Acid) and provides multiple DC and AC outputs for camping, 4WD, and emergency backup applications.
Inverter: 800W pure sine wave (240V AC output, 50/60Hz)
Solar Regulator: Built-in, supports panels up to 300W (open-circuit voltage ≤21.5V)
Battery Compatibility: 12V AGM, Gel, Calcium, Lead Acid Lithium Battery (60-130Ah)
Circuit Breaker: 50A auto-reset
Internal Dimensions: 330mm (L) x 200mm (W) x 250mm (H)
External Dimensions: 400mm (L) x 250mm (W) x 315mm (H)
Weight: 5.0 kg (without battery)
Protection Rating: IP30
