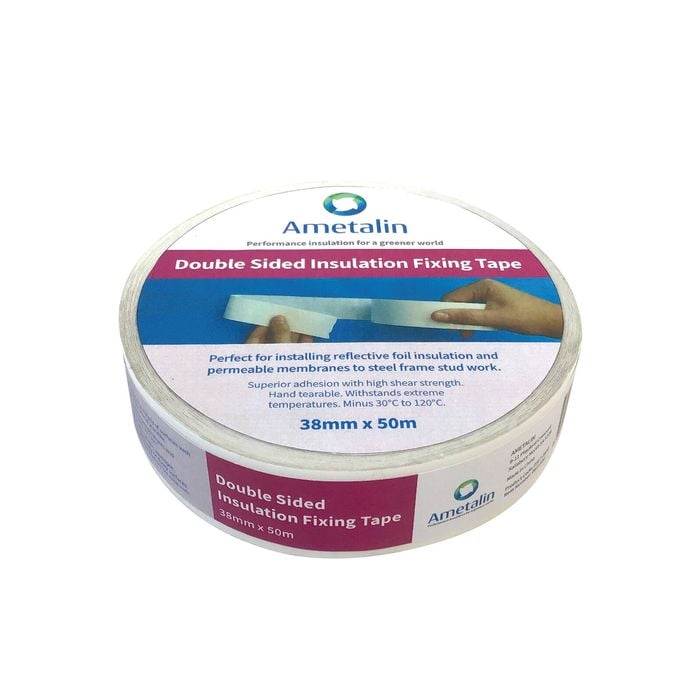

Ametalin 38mm x 50m Double Sided Insulation Fixing Tape

I/N: 0811320
Price correct as at Mon 14 Oct 2019 8:52:30pm
Add to Store Order
Products can be picked up or delivered. Your local store will contact you to confirm stock availability, delivery charges and organise payment.
Add to Cart
Confirm whether the customer will pick up their order or have it delivered. Contact the supplier to confirm stock availability. If applicable, please organise payment at this time.
Not all products available in all stores
Contact your nearest store for product information.

Special Order

Thousands more Special Orders products available to buy online or in-store. Find out more

Product Description

Ametalin Double Sided Fixing Tape is a high performance 0.133mm double sided tape coated with an aggressive acrylic adhesive. Specifically designed to complement our Brane® VHP wall wrap range, Ametalin Double Sided Fixing Tape provides a vapour sealing and heat resistant bond that is well suited to low surface energy construction materials, such as steel stud framing.

  • Hand Hearable
  • Strong bond to a wide variety of metals, timber, and low surface energy materials
  • High peel strength, shear and tack
  • Excellent UV and temperature resistance
  • Conforms well to irregular surfaces

Product Details

Model Name
Double Sided Insulation Fixing Tape
Model Number
Acrylic Adhesive
Product Dimensions (mm)
H:38 L:50000
Package Dimensions (mm)
W:150 H:38 L:150

Product Downloads


Additional Info

Installation Info

Tape Application
1. Ensure surfaces to be adhered to are clean, dry and free from contaminants.
2. Start with a vertical strip of Ametalin Double Sided Fixing Tape and attach to steel stud from top plate to bottom plate, ensuring it is in middle of stud.
3. Apply leading edge of sarking or wall wrap to this strip and roll out a short distance.
4. Immediately apply two anchor screws or staples – one to the upper and one to the lower corner in case of wind gusts.
5. Continue to apply Ametalin Double Sided Fixing Tape
along the wall at every second stud and also around windows.
6. Peel off liner from tape, roll out sarking or wall wrap and apply to the double sided tape.
7. Press down firmly with a squeegee and continue along the rest of the wall.
8. Ensure ends of runs are secured, especially in high wind areas.
9. Store tape in a clean, dry place out of direct sunlight.
