Integrated vega graphics with up to 2.1 ghz boost clock for smooth gaming and multimedia performance
High-performance cpu cores with up to 6 cores and 12 threads for efficient multitasking
Supports pcie 4.0 and ddr5 memory technologies for enhanced system speed and capacity
5ghz l2 cache: 6mb l3 cache: 16mb default tdp: 65w amd configurable tdp (ctdp): 45-65w processor technology for cpu cores: tsmc 4nm finfet cpu socket: am5 max
Operating temperature (tjmax): 95°c *os support windows 11 - 64-bit edition windows 10 - 64-bit edition rhel x86 64-bit ubuntu x86 64-bit *operating system (os) support will vary by manufacturer

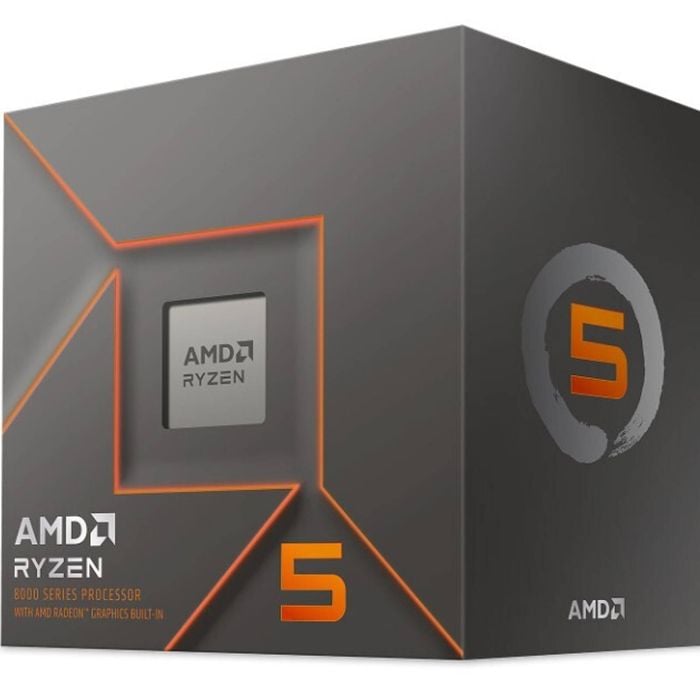

AMD Ryzen™ 5 8500G
General Specifications
Platform: Desktop
# of CPU Cores: 6
Product Family: AMD Ryzen™ Processors
# of Threads: 12
Product Line: AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
Max. Boost Clock: Up to 5.0GHz
Base Clock: 3.5GHz
L2 Cache: 6MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Socket: AM5
Max. Operating Temperature (Tjmax): 95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version: PCIe® 4.0
System Memory Type: DDR5
Memory Channels: 2
Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4X1R DDR5-3600
4x2R DDR5-3600
Graphics Capabilities
Graphics Model: AMD Radeon™ 740M
Graphics Core Count: 4
Graphics Frequency: 2800 MHz
Product ID Boxed
100-100000931BOX
