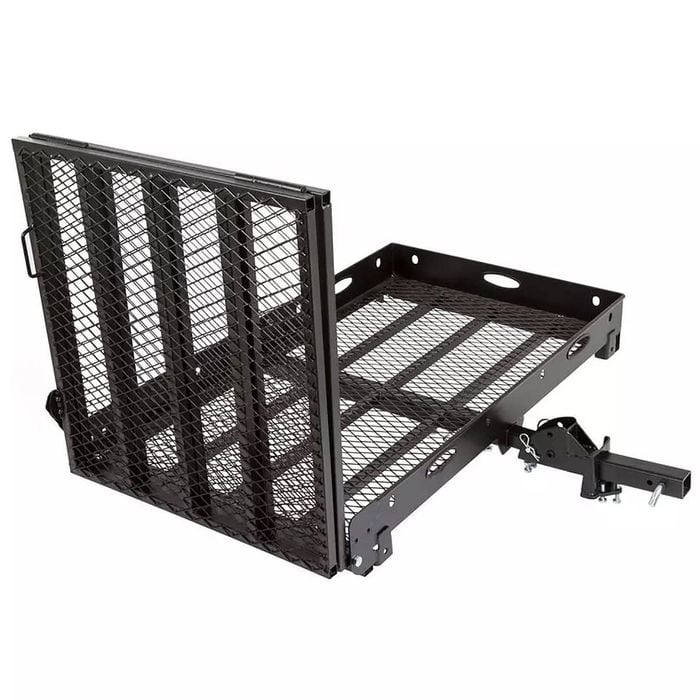

150x80 Tow Bar Mobility Scooter Wheelchair Carrier Rack

The SC500XL Towbar Carrier is a high-quality transport solution for mobility scooters and power wheelchairs. Engineered for durability, safety, and user-friendly operation, it’s ideal for everyday users and seniors alike. The upgraded gas strut system makes folding and handling smoother than ever, delivering a hassle-free experience from loading to travel. Ramp Positions * Storage Position (No Load):

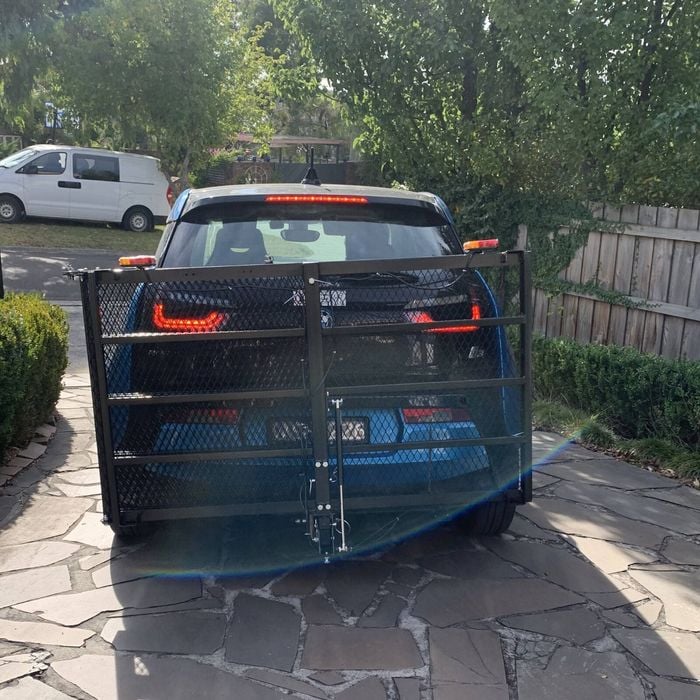

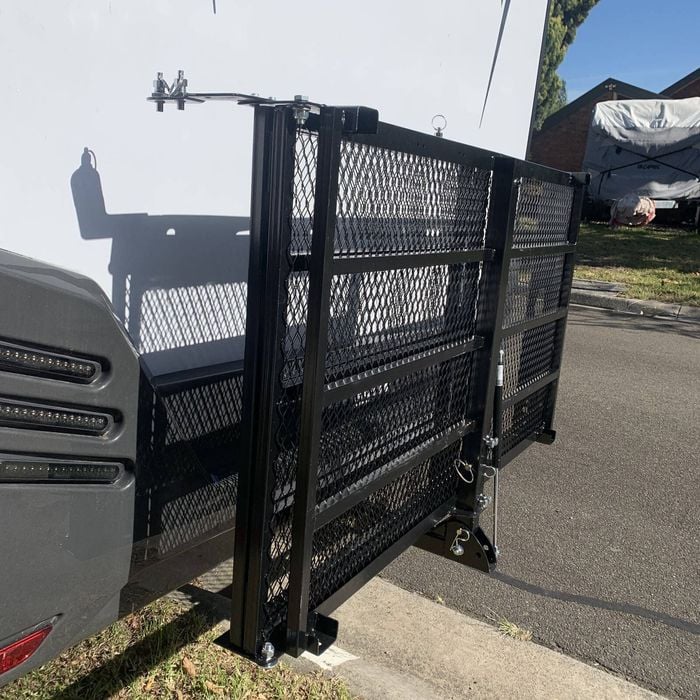

Ramp folds flat against the tray and is secured by a spring pull pin for compact storage when not in use. * Loading Position:

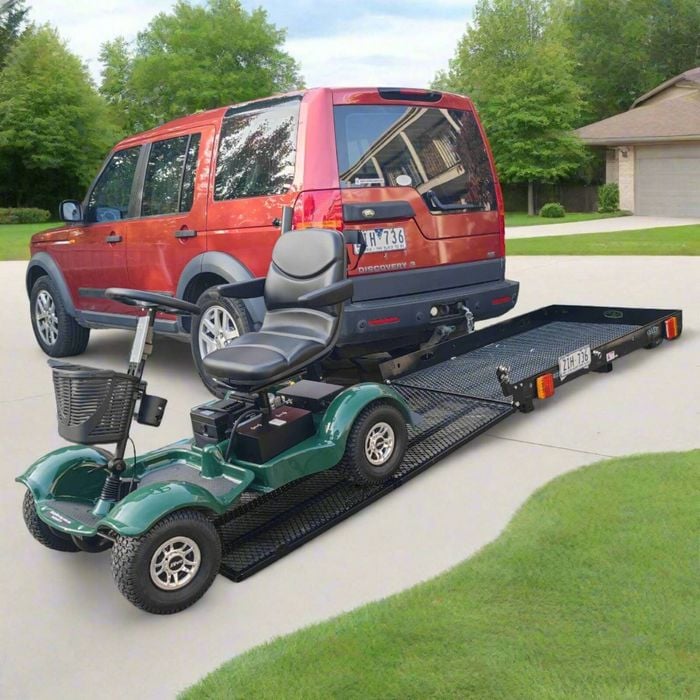

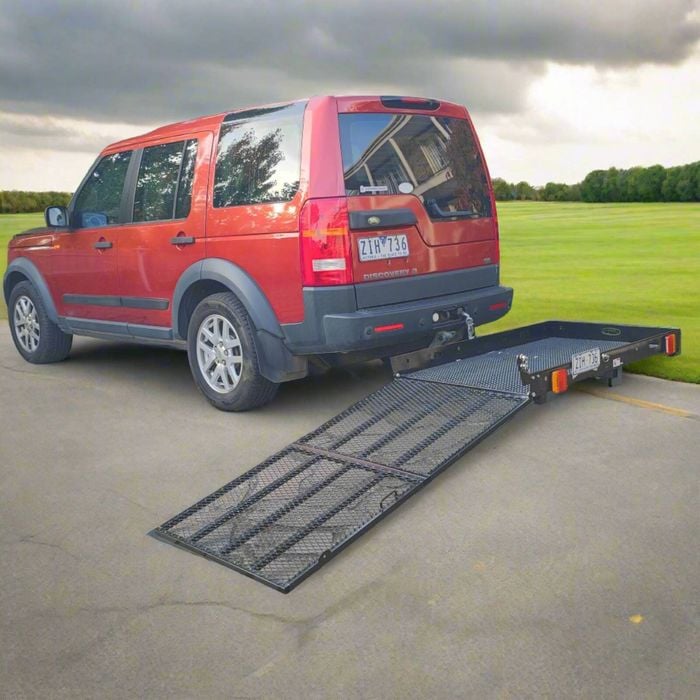

Ramp unfolds to the ground, allowing you to push or drive your mobility device onto the carrier. * Transport Position (Loaded):

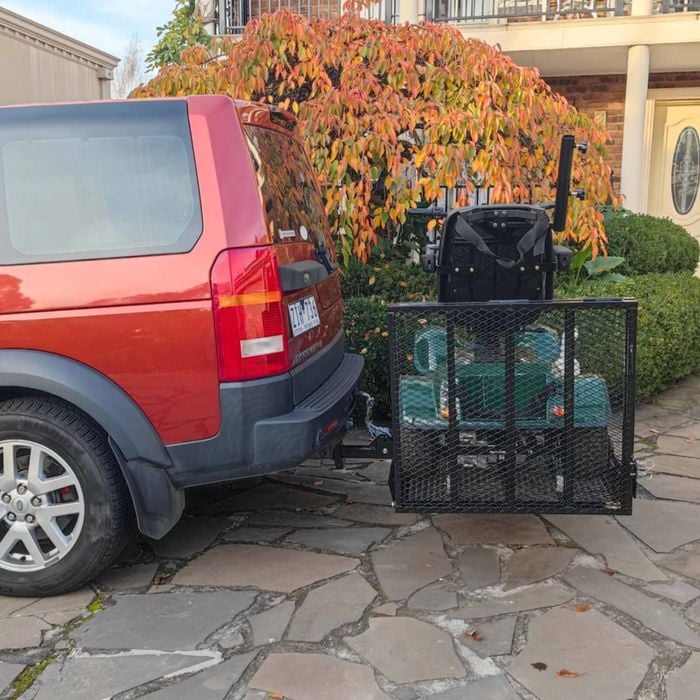

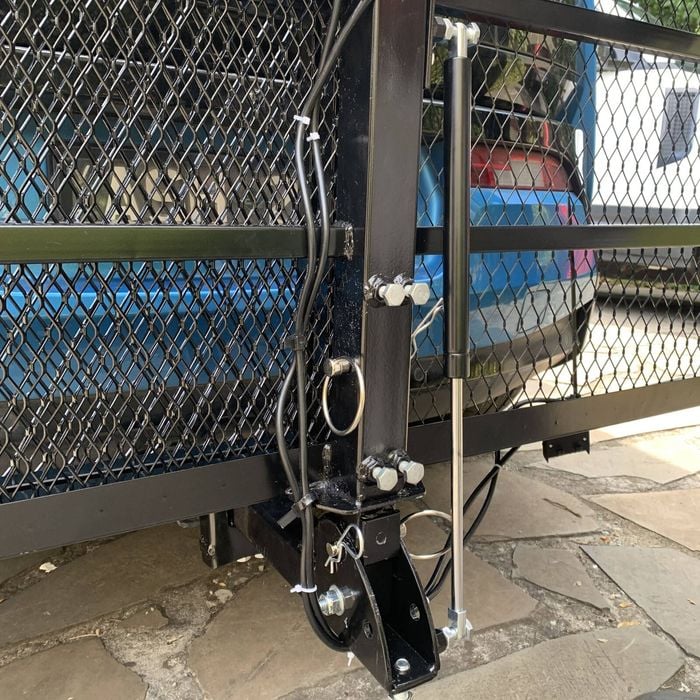

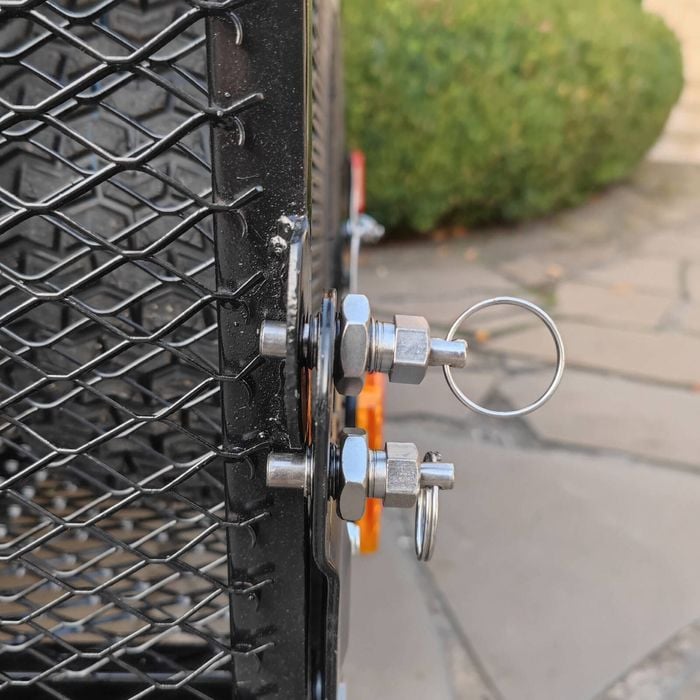

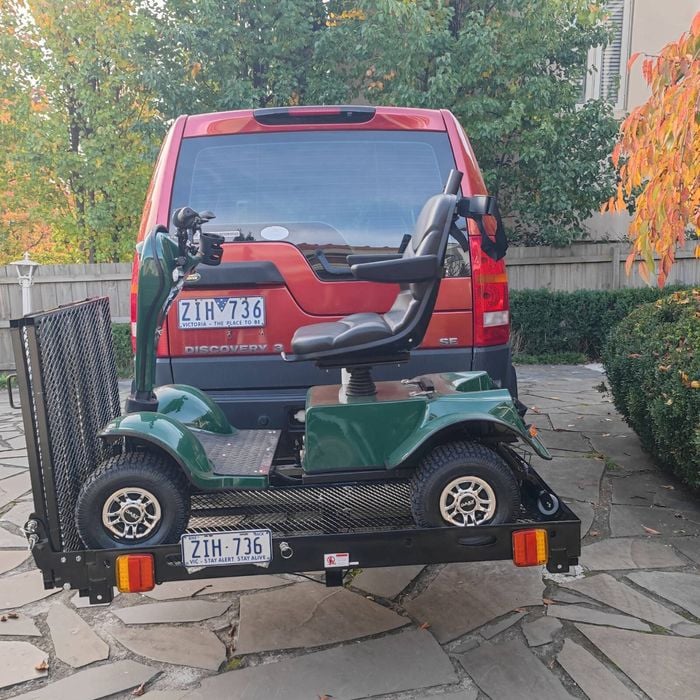

Ramp stands upright and locks securely via a spring pull pin to keep the scooter or wheelchair in place during travel. Integrated All-in-One System * Full-function LED light set with number plate illumination * 7-pin flat plug for direct vehicle connection * Gas strut for easier folding and reduced lifting effort * 5/8" hitch pin hole compatible with Class III or IV hitches * Pre-drilled number plate mount with screw kit * Built-in moving wheel for maneuvering off the vehicle Safety & Convenience * 10 tie-down holes along the carrier sides for securing your device * Built-in handles for easier lifting, mounting, and transport * Additional moving wheel allows smooth repositioning when detached Vehicle Compatibility Checklist * Vehicle must have a 50mm x 50mm (2" x 2") square hitch receiver * Minimum 15.5 cm from hitch pin hole to vehicle’s rear edge (check for interference from spare tires) * Ensure your towbar supports the total combined weight of the carrier and mobility device * Confirm scooter dimensions fit within the carrier tray (see specs below) * For vehicles with a hitch receiver less than 35 cm off the ground, a hitch riser is recommended * Always comply with local road safety regulations Specifications * Weight Capacity: 226 kg * Carrier Dimensions: 152 cm (L) × 84 cm (W) × 10 cm (H) * Ramp Dimensions: 150 cm (L) × 78 cm (W), left-side folding * Pin Hole Distance: 15.5 cm (folded), 38 cm (unfolded) * Carrier Weight: 44 kg * Hitch Compatibility: 50 mm × 50 mm (2" × 2") * Warranty: 12 months Model Options: * SC500 – 120 cm × 70 cm * SC500XL (This model) – 150 cm × 84 cm Package Includes * 1 × Carrier with folding ramp * 1 × Gas strut * 2 × LED lights with 7-pin flat plug * 1 × Moving wheel * 1 × User manual
