- Monitors two batteries simultaneously on single display
- Individually fused cigar sockets for circuit protection
- Corrosion-resistant aluminium construction
- Pre-wired for direct installation

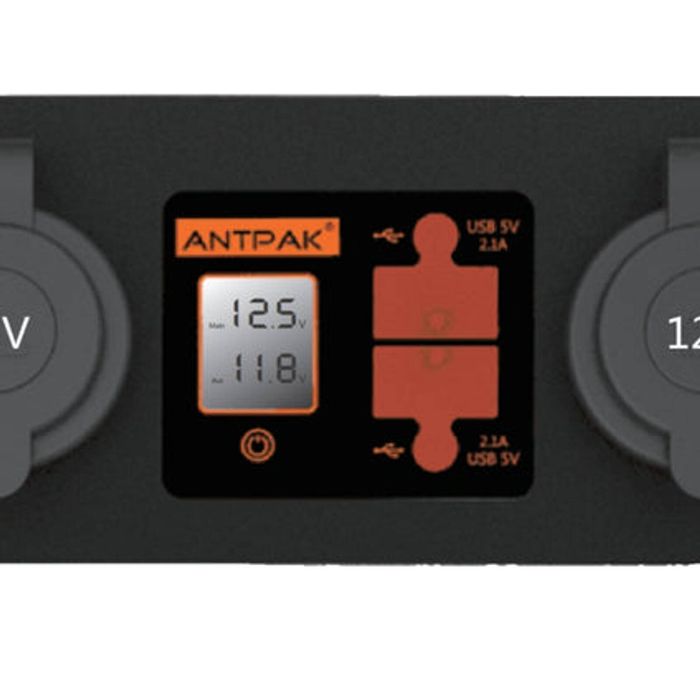

The ANTPAK 12V DC Power Panel is an aluminium surface-mount control unit with a dual battery LCD voltmeter, two 2.1A USB ports, and two fused 12V cigar sockets. It includes a 15A blade fuse for circuit protection and is designed for 4WD, marine, and caravan installations.
Input Voltage: 12V DC (12V/24V system compatible)
Display: Backlit LCD dual battery voltmeter
USB Ports: 2 x 2.1A (4.2A total output)
Cigar Sockets: 2 x 12V (each with built-in fuse and holder)
Main Fuse: 15A blade fuse (replaceable)
Dimensions: 155mm (W) x 55mm (H) x 40mm (D)
Panel Material: Anodised aluminium

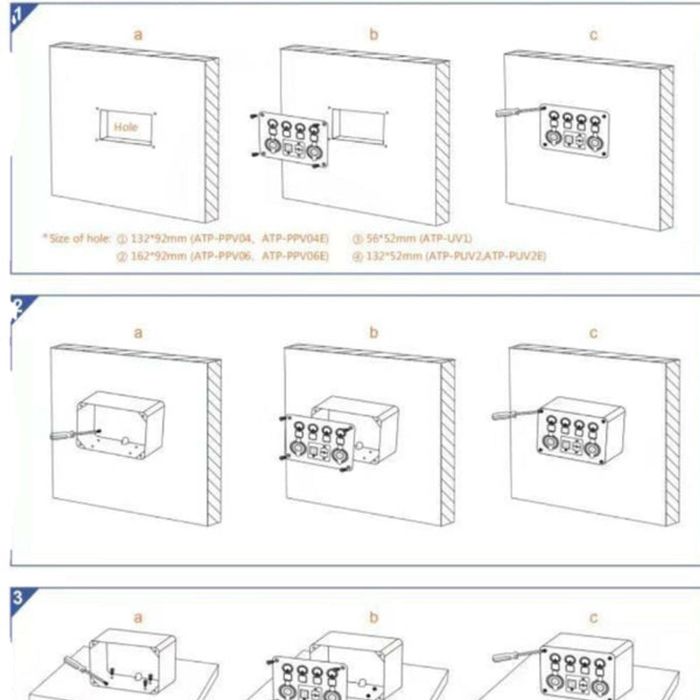

Mounting: Surface mount
