- Protect eyes
- Compact, space-saving package
- Unique optical screen technologies
Feature:
retain maximum advantage of the boost contrast and enhance image quality in the challenging user bright environment.
The fixed frame screen is light and convenient, easy to install, and suitable for various application scenarios.
It is the first choice for users who enjoy diy.

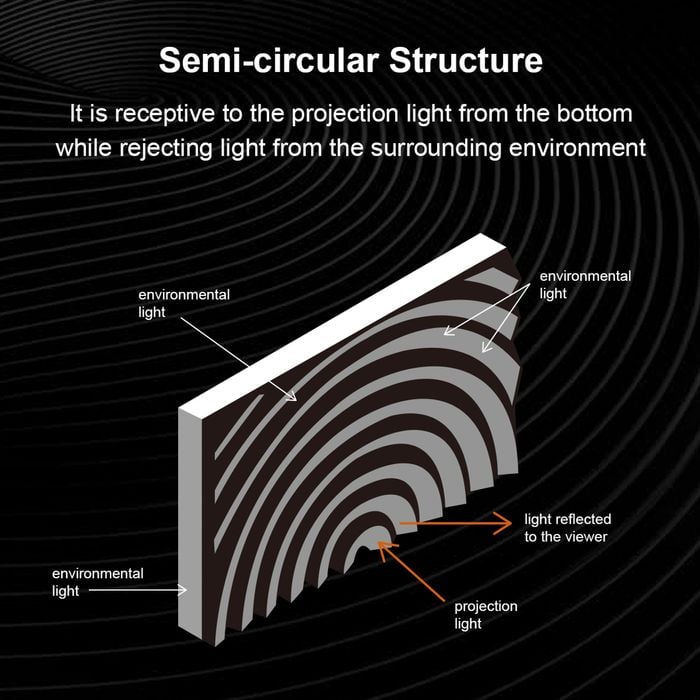

Optical screen is a projection screen with a variety of fine optical structures.
These light path structures can adjust the path of light, with the effect of improving the brightness of the picture, resisting ambient light restoring true color, and improving the contrast of the picture.
Unique optical screen technologies
best-in-class performance with traditional projector screen

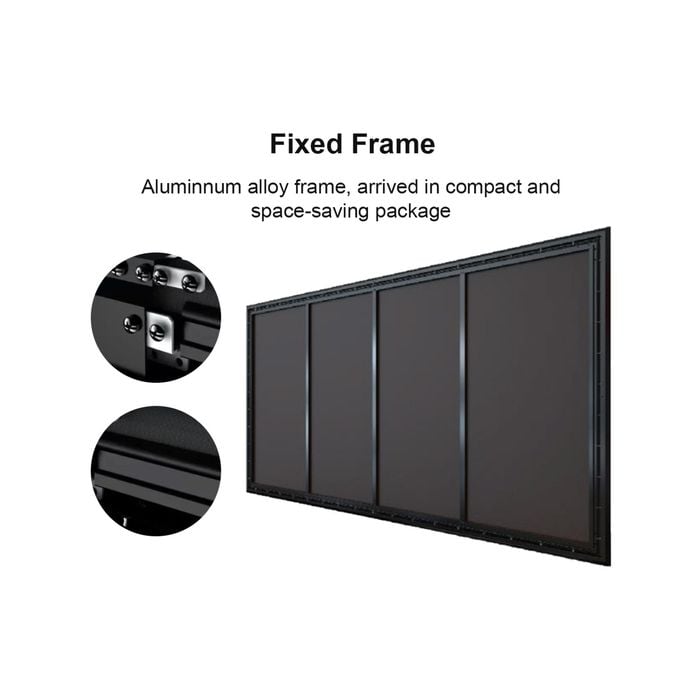

fixed frame installation design
easy to clean as anti-glare scratch layer
compact, space-saving package
unrivalled front projection image-contrast
great large size flat screen display
protect eyes
rohs certification
compatible with a wide range of traditional long throw projectors
specification:
brand: winways
model: sk-100
peak gain: 1.6

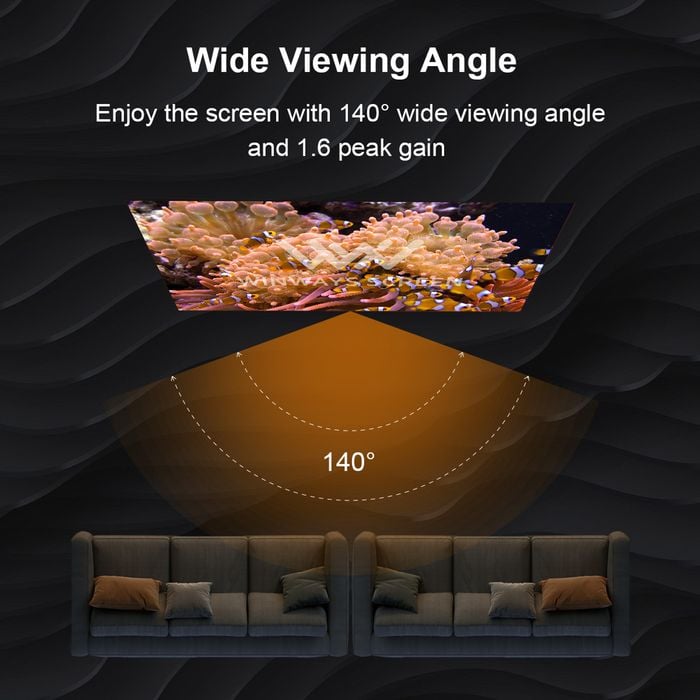

horizontal half-gain angle: 18°
alr rate: 85%
screen thickness: 1.8mm
material: pet
color: dark grey
frame color: black
frame width: 8.5mm
contrast: 150:1 (bright room)
working temperature: -10°c-40°c
working humidity: 30%-70% rh
support projector lens throw ratio: 1.0-1.39

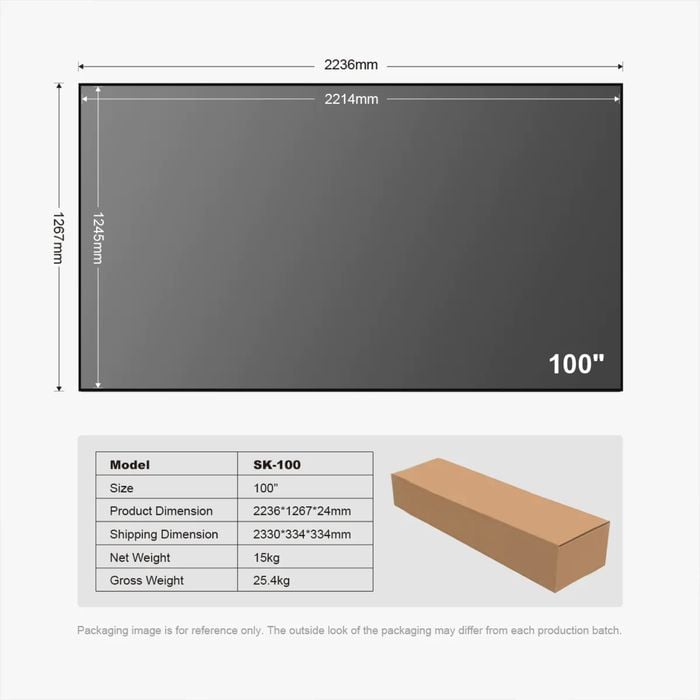

image area: 221.4*124.5cm
screen size (including frame): 223.6*126.7*2.4cm
shipping dimension: 233×33.4×33.4cm
gross weight: 25.4kg
net weight: 15kg
optimal projector installation height: 63.1cm
warranty:
manufacturer warranty: 1 year
use: not intended or designed for commercial use.
notice: please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
