VoltX
Delivery Included
Marketplace
Online OnlyNot sold in store
VoltX

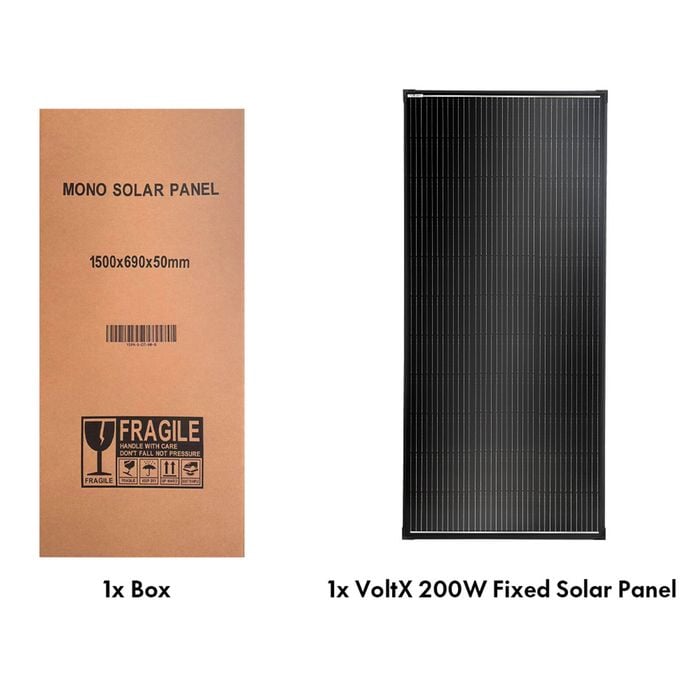

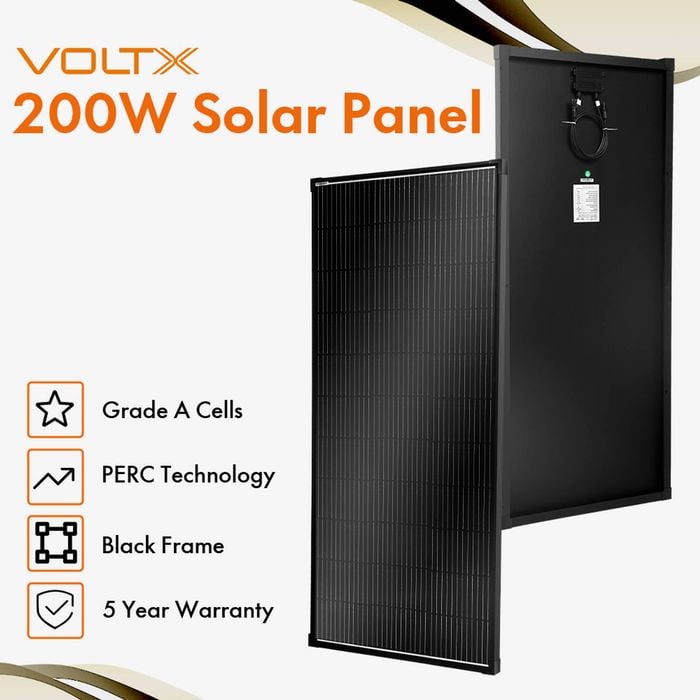

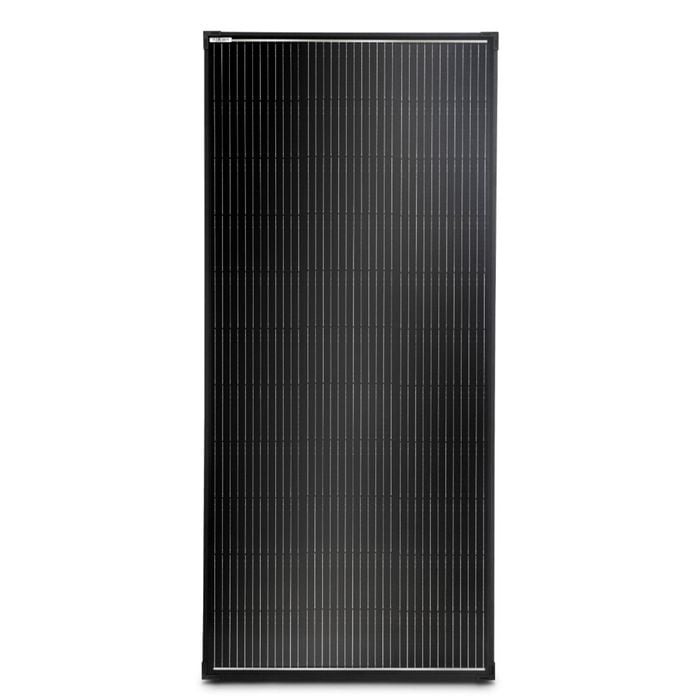

Voltx 200w Solar Panel Mono Fixed Grade-a Cell Ip65 High Conversion Efficiency

I/N: 0988769

$449

How to purchase

Marketplace - Online Only

Items sold and delivered by VoltX. This item is not available in-store or for click & collect.

Marketplace FAQs

Delivery

Enter postcode or suburb for estimate

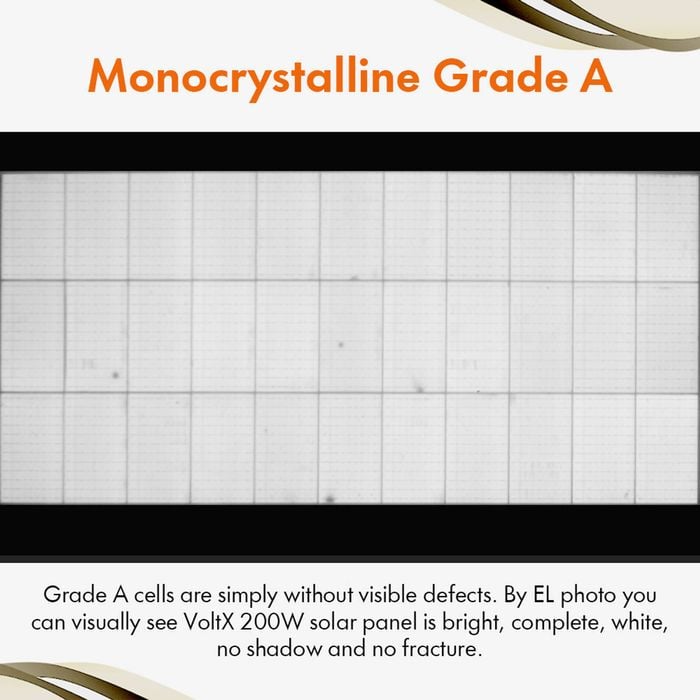

  • Grade a cell

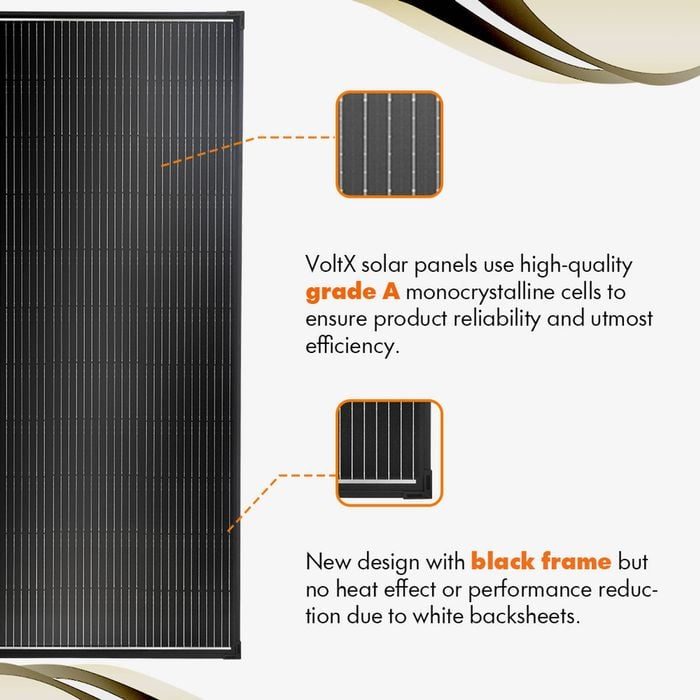

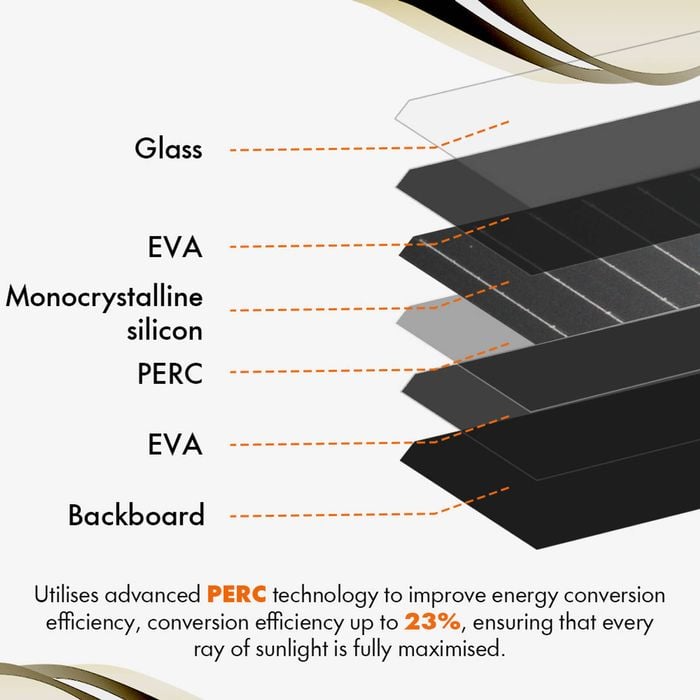

  • Perc technology
  • Ip65

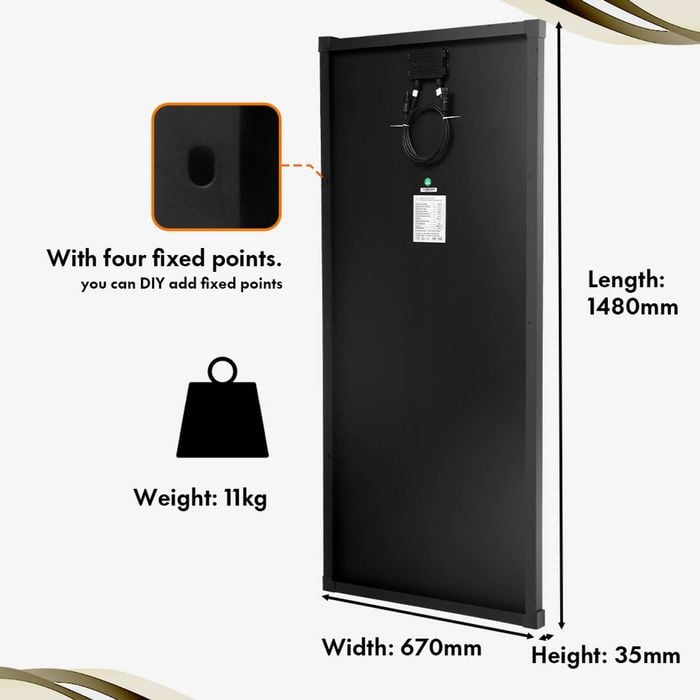

⚡ Now back online — improved stock & faster dispatch. Ideal for camping, home backup & off-grid power solutions ### Description Excellent quality, the first choice for clean energy!When you choose VoltX high-efficiency solar panels, you are not only choosing a high-efficiency green energy, but also contributing to protecting the earth. ### Specifications ・Brand: VoltX ・Max Power: 200W ・Max Power Voltage (Vmp): 18.74V ・Max Power Current (lmp): 10.41A ・Open-Circuit Voltage (Voc): 22.86V ・Short-Circuit Current (Isc): 10.93A ・Max System Voltage: 1000V ・Max Series Fuse Rating: 15A ・Module Efficiency STC (%): 19.66% ・Cell Efficiency: 23% ・Power Tolerance: 0-5W ・Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃ ・Working Temperature: -40°C-85°C ・Temperature Coefficients of Pmax: -0.34%℃ ・Temperature Coefficients of Voc: -0.28%℃ ・Temperature Coefficients of lsc: +0.05%℃ ・Nominal Operating Cell Temperature (NOCT): 45±2°C ・Type: Fixed ・Solar Cell: Monocrystalline Grade A ・Cell Tech: PERC ・Panel Leads (Pair-AWG): 2.5mm² ・Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector ・Tie Down Points: Yes, 4 Points ・Frame: Anodized Aluminium Alloy ・IP Rating: IP65 ・Certifications: CE, ISO ・Warranty: 5 Years ### Dimensions & Weight ・Product Dimensions: L1480xW670xH35mm ・Package Dimensions: L1500xW690xH50mm ・Net Weight: 11kg ・Gross Weight: 11.9kg ### What's In The Box ・1x VoltX 200W Fixed Solar Panel Black Frame
