- 【pure sine wave power】—— advanced spwm modulation technology with pure sine wave output and high power quality
- 【durable & reliable performance】—— high power density and long life devices are elected to support long term operation at full power
- 【high-efficiency, low distortion】—— high conversion efficiency, low losses and low harmonic distortion rate
⚡ Now back online — improved stock & faster dispatch. Ideal for camping, home backup & off-grid power solutions
### Description

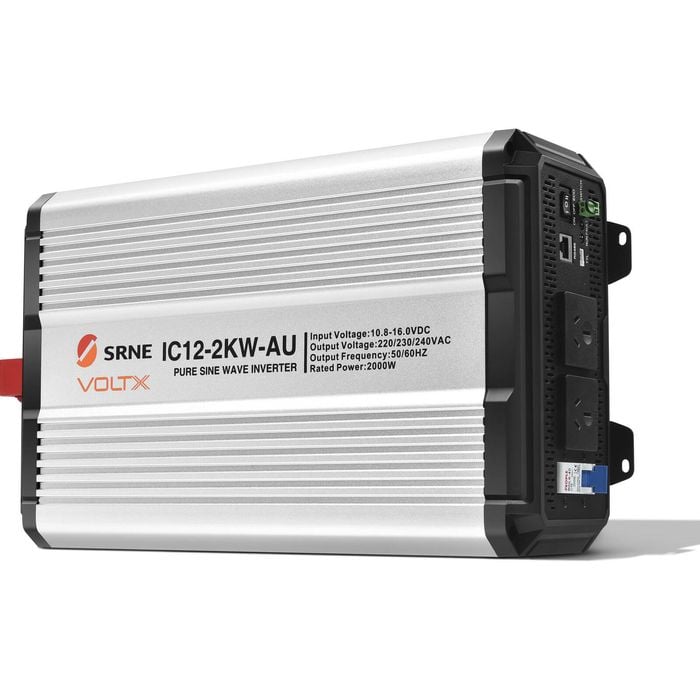

The VoltX High Frequency Pure Sine Wave Power Inverter 2kW is one of the best upgrades you can add to any off-grid system.
--- Quality Power, Top-Notch Performance ---
Fusing an advanced SPWM modulation technology with pure sine wave output, this inverter produces only the finest power quality.
--- Smart Operation ---
Check your operating parameters via mobile app. Connect your inverter to your phone via Bluetooth. Feature-packed & easy to operate, you'll definitely love having this around.
### Specifications
・Rated Output Power: 2000W
・Rated Output Power VA: 2000VA
・Withstand Instantaneous Impact Power: 4000W
・Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
・Output Frequency: 50/60HZ(±0.2%)
・Output Wave: Pure sine wave
・Output Harmonic Component: THDV > 3% (pure resistance load)
・Load Power Factor: 0.2-1 (load power ≤ output continuous power)
・Rated Input Voltage: 12VDC
・Input Voltage Range: 10.8~16.0VDC
・Rated Output Efficiency: >92%
・Maximum Output Efficiency: > 93.5% (30% overload)
・Standby Current: <0.24A
・No-load Current: <1.0A
・USB Interface: Dual USB output, 5VDC/2A
・ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
・ECO Starting Power: <30W
・ECO Interval Time: 1min
・TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
・Indicator: Green - normal operation; Red - fault
・External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
・Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
・Operating Ambient Temperature: -20℃~60℃
・Storage Ambient Temperature: -35℃~80℃
・Relative Humidity: ≤95%
・IP Grade: IP20
・Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
・Noise Level: ≤60dB
・Warranty: 3 Years
### Dimensions & Weight
・Dimensions: 409 x 249 x 120mm
・Mounting Hole Spacing: 374 x 141mm
・Fixed Hole Position: 5mm
・Net Weight: 6.5kg
### What's In The Box
・1x VoltX 12V 2KW Pure Sine Wave Inverter
・1x User Manual
