- 【pure sine wave power】—— advanced spwm modulation technology with pure sine wave output and high power quality
- 【durable & reliable performance】—— high power density and long life devices are elected to support long term operation at full power
- 【high-efficiency, low distortion】—— high conversion efficiency, low losses and low harmonic distortion rate
⚡ now back online — improved stock & faster dispatch. Ideal for camping, home backup & off-grid power solutions
### description

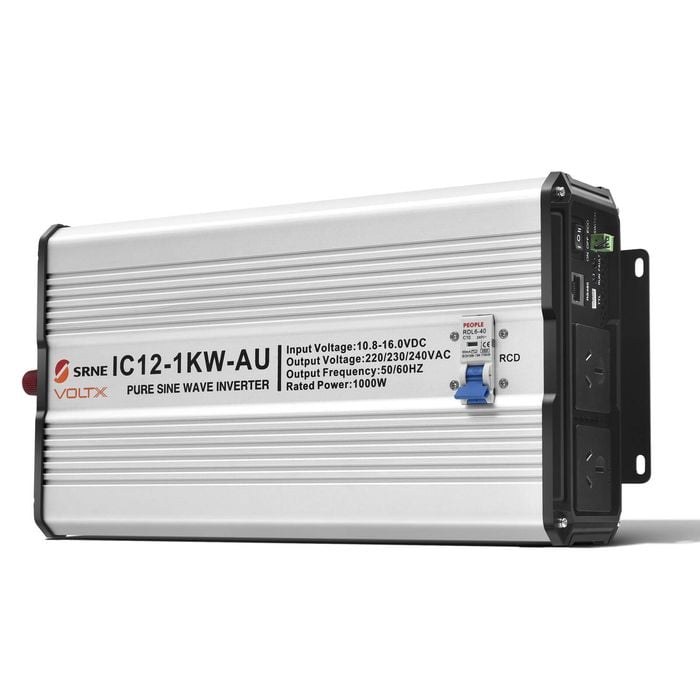

the voltx high frequency pure sine wave power inverter 1kw is one of the best upgrades you can add to any off-grid system.
--- quality power, top-notch performance ---
fusing an advanced spwm modulation technology with pure sine wave output, this inverter produces only the finest power quality.
--- smart operation ---
check your operating parameters via mobile app. Connect your inverter to your phone via bluetooth. Feature-packed & easy to operate, you'll definitely love having this around.
### specifications
・rated output power: 1000w
・rated output power va: 2000va
・withstand instantaneous impact power: 2000w
・rated output voltage: 220vac/230vac/240vac(±3%)
・output frequency: 50/60hz(±0.2%)
・output wave: pure sine wave
・output harmonic component: thdv > 3% (pure resistance load)
・load power factor: 0.2-1 (load power ≤ output continuous power)
・rated input voltage: 12vdc
・input voltage range: 10.8~16.0vdc
・rated output efficiency: >90%
・maximum output efficiency: > 93.5% (30% overload)
・standby current: <0.26a
・no-load current: <0.8a
・usb interface: dual usb output, 5vdc/2a
・on/off/eco mode: on - ac normal output off - no ac output, standby eco - energy-saving mode, auto switch
・eco starting power: <30w
・eco interval time: 1min
・ttl interface: non-isolated ttl communication, power supply 12.5v/200ma
・indicator: green - normal operation; red - fault
・external switch contact interface: switch on or off by control equipment such as external relay and mechanical switch
・protection function: input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
・operating ambient temperature: -20℃~60℃
・storage ambient temperature: -35℃~80℃
・relative humidity: ≤95%
・ip grade: ip20
・heat-dissipating method: natural heat dissipation + intelligent air cooling
・noise level: ≤45db
・warranty: 3 years
### dimensions & weight
・dimensions: 344 x 188 x 84mm
・mounting hole spacing: 328 x 105mm
・fixed hole position: 5mm
・net weight: 3.7kg
### what's in the box
・1x voltx 12v 1kw pure sine wave inverter
・1x user manual
