- Versatile performance
- Built for durability
- Unmatched visibility: 72w

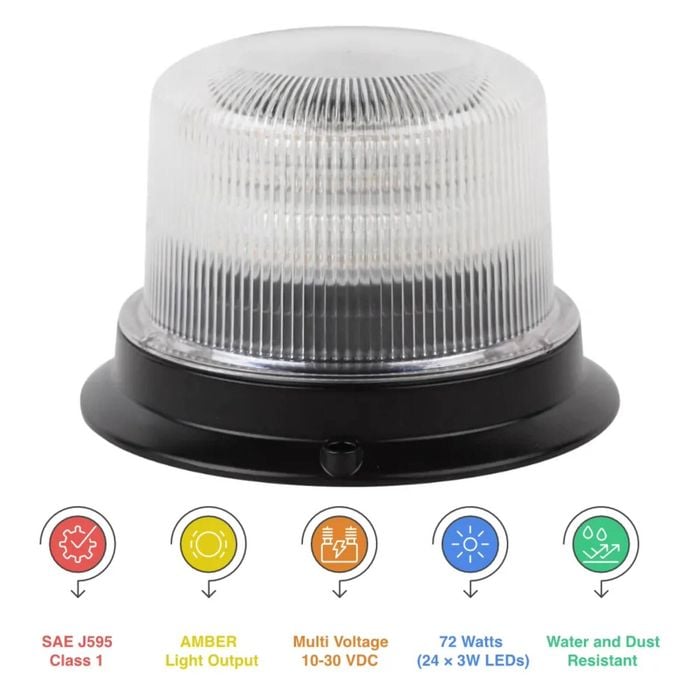

U1-24 72W LED Beacon
Model: U1-24
• IP65 Waterproof design
• Provides 360 degrees of Coverage

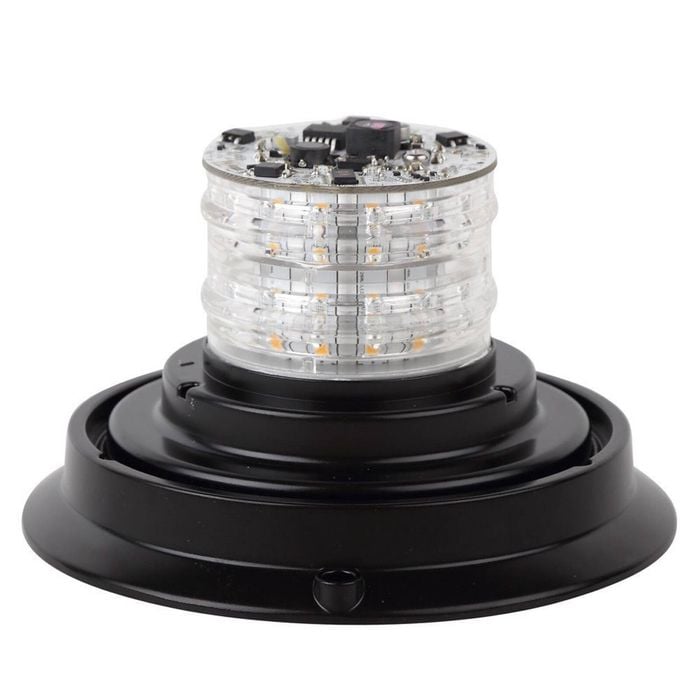

• Two levels of unique LED reflectors provide a full bodied beacon
• 9 flash patterns modes including flashing and rotating function.
• Low amp draw and bright output provide the ideal beacon for everyday use
• Application: Car / Truck / Plant/ Machinery / Equipment / Forklift /Excavator
TECHNICAL SPECIFICATIONS
Light Characteristics
• LED Power: 72W (24PCS 3W LED)
• LED: Amber

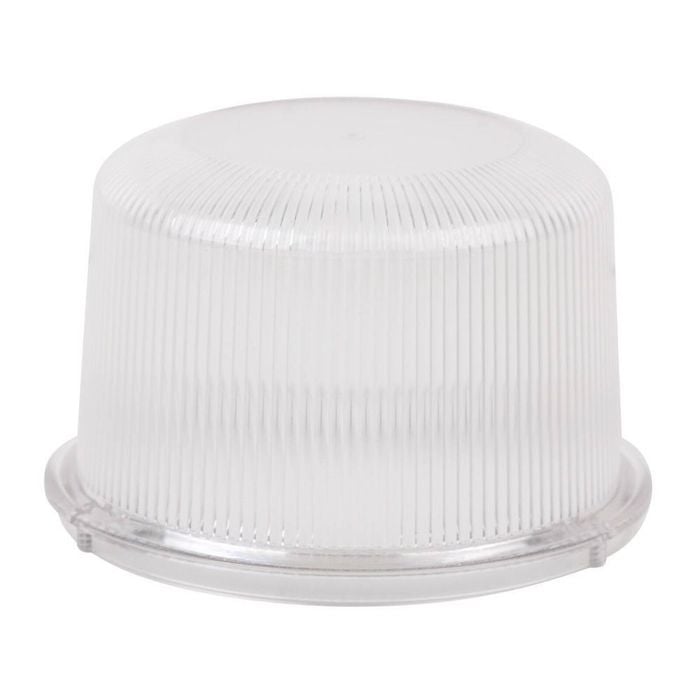

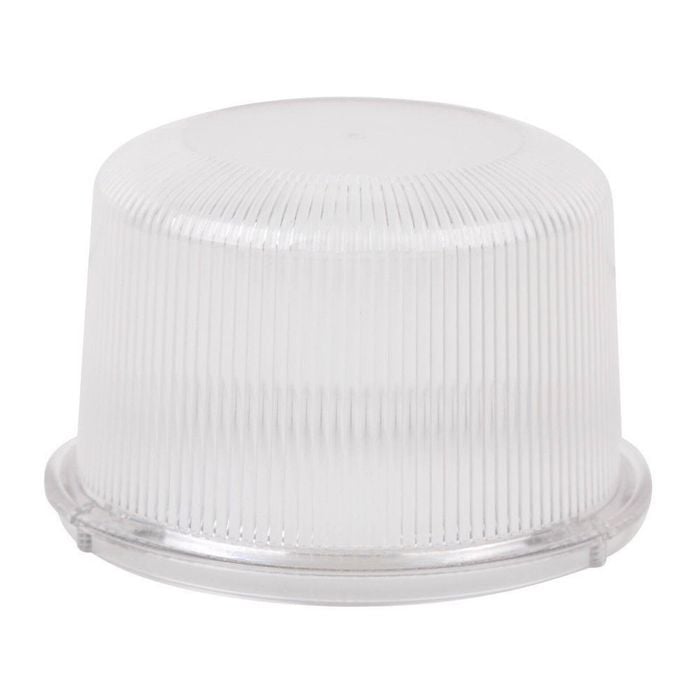

• LENS: Replaceable PC Amber or Clear
Electrical Characteristics
• Voltage: 10-30VDC
• MAX 2.4A @ 13.8VDC during flashing
• Blue wire to momentun switch for pattern change
Physical Characteristics
• Waterproof: IP67

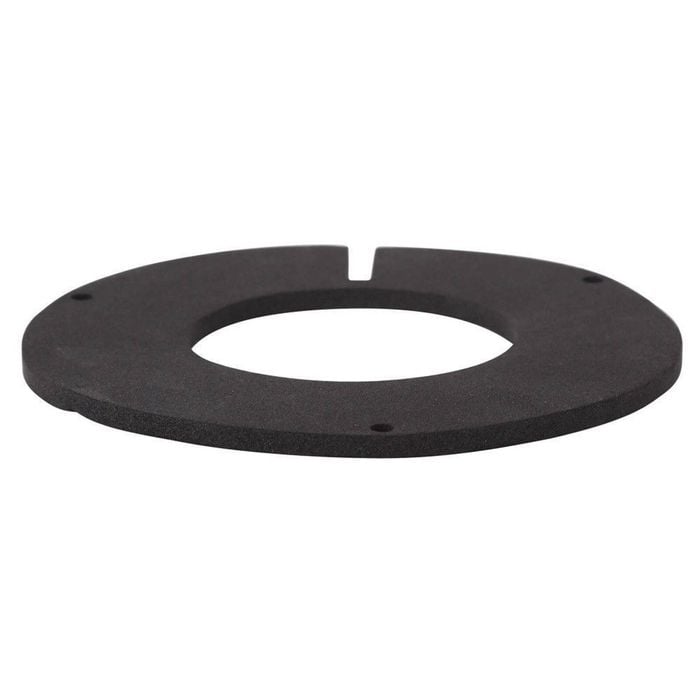

• Mounting: Aluminium Permanent three point base Gasket Supplied
• Flash patterns: 9
• ECE R65 / SAE CLASS 1
• Product Dimension: 163mm x 106mm
FLASH PATTERN
1. ECE R65 Rotator Flash
2. ECE R65 Single Flash
3. ECE R65 Double Flash
4. ECE R65 Quad Flash
5. SAE Rotator Flash
6. SAE Single Flash
7. SAE Double Flash
8. SAE Quad Flash
9. Off
To select flash pattern, apply BLUE to BLACK (ground) wire:
• less than 1 second for next pattern
• more than 1 second for previous pattern
• more than 5 seconds for turn off

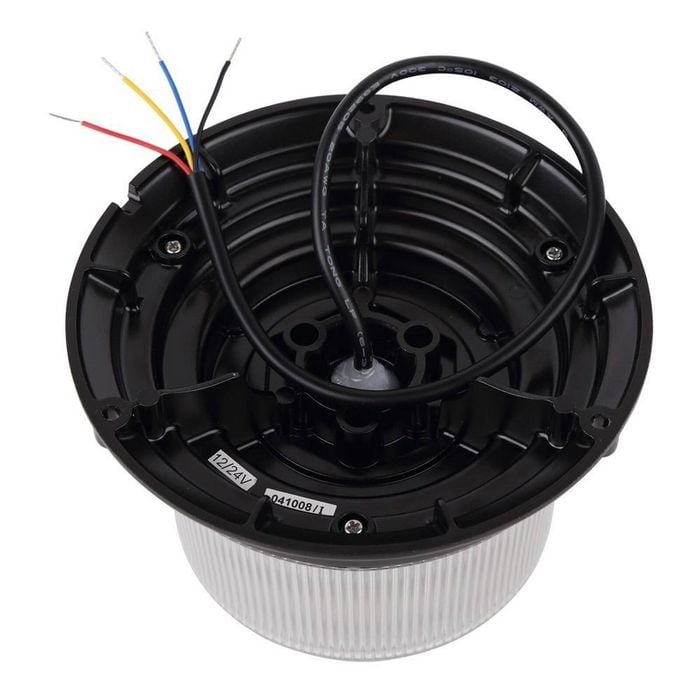

Operation
• Connect the RED Wire to +VDC
• Connect the BLACK Wire to chassis ground.
• Connect the Blue wire to Black wire (GRND) momentarily for pattern change.
• Connect the YELLOW wire of all lights together for synchronization.
