- Enhanced gaming performance
- High-speed storage options
- Future-proof connectivity let me know if you'd like any modifications!
- 0 supports dual-controller dual-channel mode supports non-ecc, un-buffered memory supports cudimm onboard graphics 1x hdmiâ„¢ support hdmiâ„¢ 2
- 1, maximum resolution of 4k 60hz* 1x displayport support displayport 1

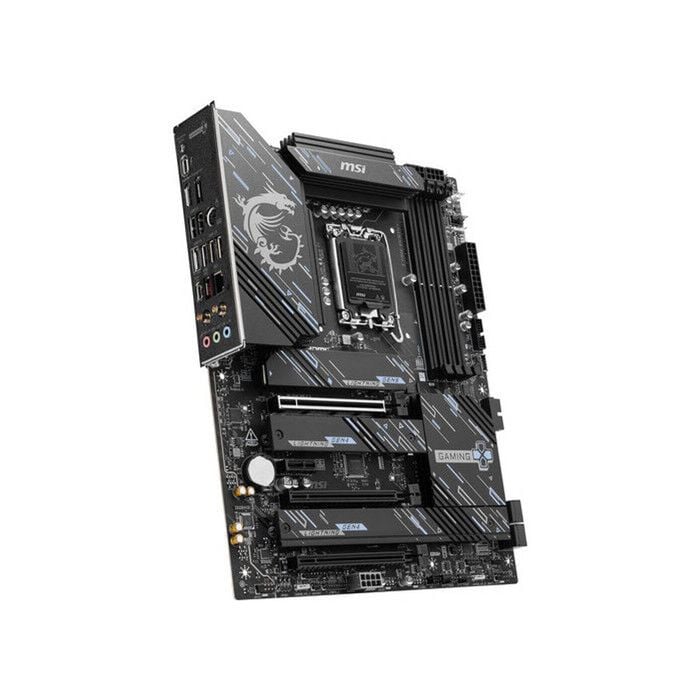

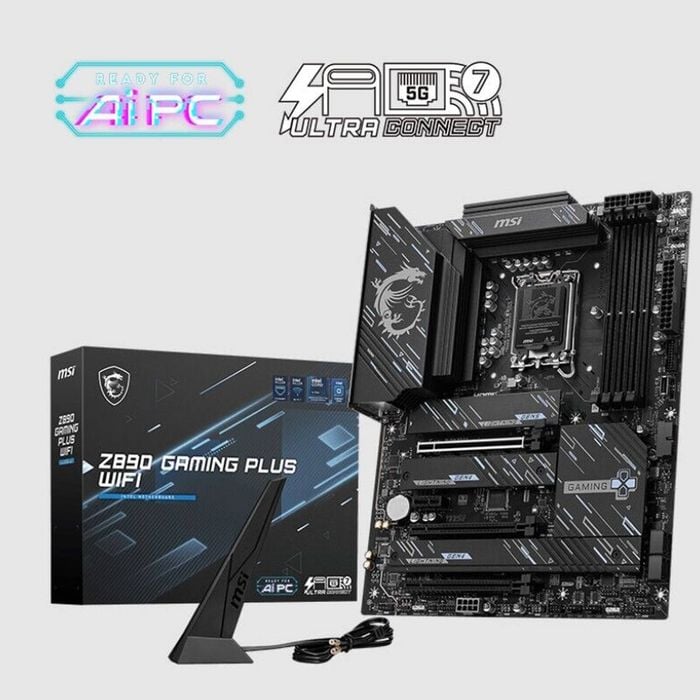

msi z890 gaming plus wifi motherboard, 4x ddr5 256gb, 3x pci-e x 16, 1x pci-e x 1, 4x m.2, 4x sata 6g, 3x usb 3, 2x usb-c, 4 x usb 2 chipset intel z890 cpu supports intel® core™ ultra processors (series 2) lga 1851 memory 4x ddr5 udimm, maximum memory capacity 256gb memory support 9200 - 6400 (oc) mt/s / 6400 - 4800 (jedec) mt/s max. Overclocking frequency: • 1dpc 1r max speed up to 9200+ mt/s • 1dpc 2r max speed up to 7200+ mt/s • 2dpc 1r max speed up to 4800+ mt/s • 2dpc 2r max speed up to 4800+ mt/s supports intel® por speed and jedec speed supports memory overclocking and intel® xmp 3.0 supports dual-controller dual-channel mode supports non-ecc, un-buffered memory supports cudimm onboard graphics 1x hdmi™ support hdmi™ 2.1, maximum resolution of 4k 60hz* 1x displayport support displayport 1.4, maximum resolution of 4k 60hz* 1x type-c displayport thunderbolt™ 4 port, supporting displayport 2.1 with uhbr20 over usb type-c, with a maximum resolution of 4k@120hz / 8k@60hz* slot 3x
pci-e x16 slot 1x pci-e x1 slot pci_e1 gen pcie 5.0 supports up to x16 (from cpu) pci_e2 gen pcie 4.0 supports up to x1 (from chipset) pci_e3 gen pcie 4.0 supports up to x4 (from chipset) pci_e4 gen pcie 4.0 supports up to x4 (from chipset) storage 4x m.2 m.2_1 source (from cpu) supports up to pcie 5.0 x4 , supports 2280/2260 devices m.2_2 source (from chipset) supports up to pcie 4.0 x4 , supports 22110/2280/2260 devices m.2_3 source (from chipset) supports up to pcie 4.0 x4 , supports 2280/2260/2242 devices m.2_4 source (from chipset) supports up to pcie 4.0 x4 / sata mode, supports 2280/2260/2242 devices 4x sata 6g usb 4x usb 2.0 (rear) 4x usb 2.0 (front) 2x usb 5gbps type a (rear) 4x usb 5gbps type a (front) 1x usb 10gbps type a (rear) 1x usb 10gbps type c (rear) 1x usb 20gbps type c (front) lan intel® killer™ e5000 5gbps lan
