- Supports micro atx and mini itx builds
- Micro atx case with usb-c 20gbps and usb 5gbps
- Sleek black design with multiple drive bays
- 5” 2 x 2
- 5”/3
description

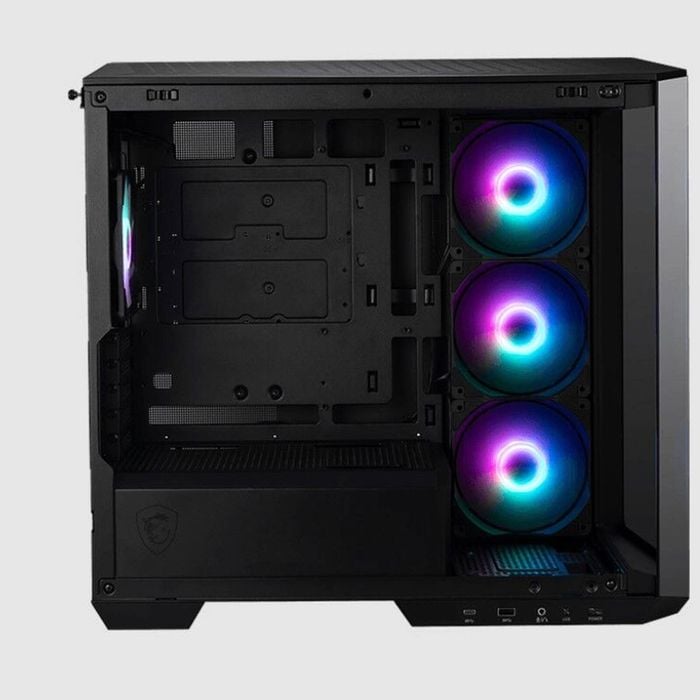

msi mag pano 100r pz black mid tower, 2 x usb 5gbps , 1x usb c 20gbps, 1 x audio-out / mic,, 3x 2.5", 2x 3.5",
case form factor mid tower
motherboard form factor support regular: atx / micro-atx / mini-itx back-connect: atx / micro-atx
i/o ports
1 x usb 20gbps type-c
2 x usb 5gbps type-a
1 x audio-out / mic-in
1 x led switch button
1 x power button
drive mount support 3 x 2.5” 2 x 2.5”/3.5” combo
expansion slots 8
maximum gpu length 380 mm / 14.96 inches
maximum cpu cooler height 166 mm / 6.54 inches
power supply support atx
maximum psu length 200 mm / 7.87 inches
fan size support
top: 3 x 120 mm / 3 x 140 mm
front: na
rear: 1 x 120 mm
side: 3 x 120 mm / 2 x 140 mm
bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
pre-installed fan size side: 3 x 120 mm rear: 1 x 120 mm
pre-installed fan type side: 3 x argb reverse-blade rear: 1 x argb
radiator size support
top: 120 / 240 / 360 mm
front: na
rear: 120 mm
side: 120 / 240 / 360 mm
bottom: 120 / 240 / 360 mm
dimensions (dxwxh)
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
